Sony WM-EX621 - Machanism Block - 2

22
WM-EX621
951 3-010-274-02 TABLE, REEL
952 3-010-954-01 SPRING (BT), COMPRESSION
953 X-3377-584-1 CHASSIS ASSY (F)
954 3-010-273-02 GEAR (REEL)
955 3-029-272-01 SPRING (FR), TORSION
956 3-040-897-01 SPRING (TGA), TORSION
957 3-029-285-12 GEAR, CAM
958 3-029-284-01 LEVER, TRIGGER
959 3-029-281-01 GEAR, IDLER (B)
960 3-029-283-01 GEAR, IDLER (A)

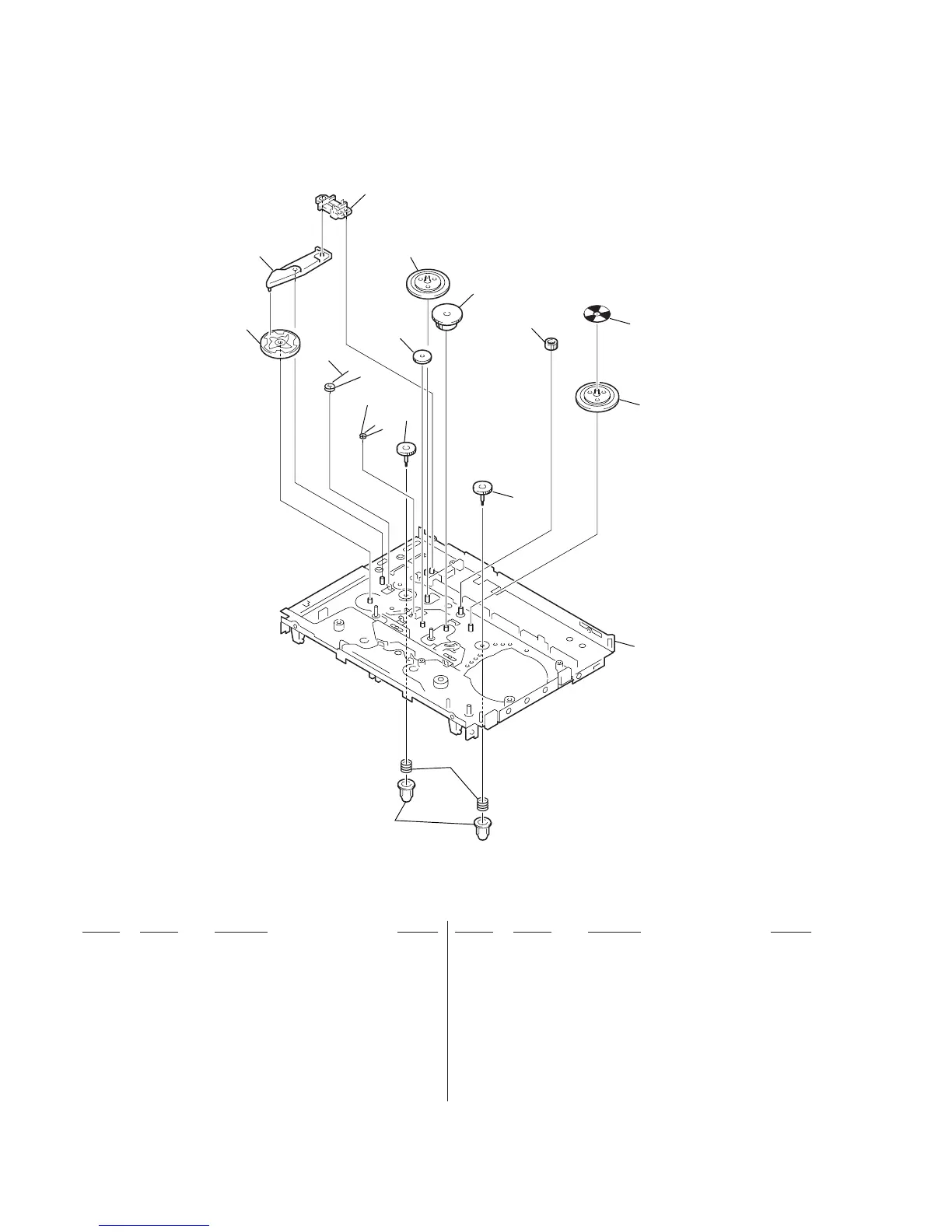

7-4. MECHANISM BLOCK –2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
961 3-029-286-01 GEAR (NR)
962 3-029-273-01 GEAR (FR)
963 3-007-433-01 SHEET (N), REFLECTION
PM901 1-454-674-31 SOLENOID, PLUNGER
PM901
951
952
954
953
963
962
961
959
956
955
954
958
957
960
960
