WM-EX621
901 3-046-789-01 SPRING (HDA)
902 X-3378-354-1 HOLDER (FS) ASSY
903 3-029-275-01 WASHER (STOPPER N)
904 3-029-278-01 WASHER
905 3-029-276-01 WASHER (STOPPER R)
906 3-029-289-01 WASHER
907 3-007-428-01 WASHER (R)
908 3-029-288-01 PULLEY, REVERSE
909 3-029-268-11 FLYWHEEL (R), INSERT
910 3-386-694-01 WASHER

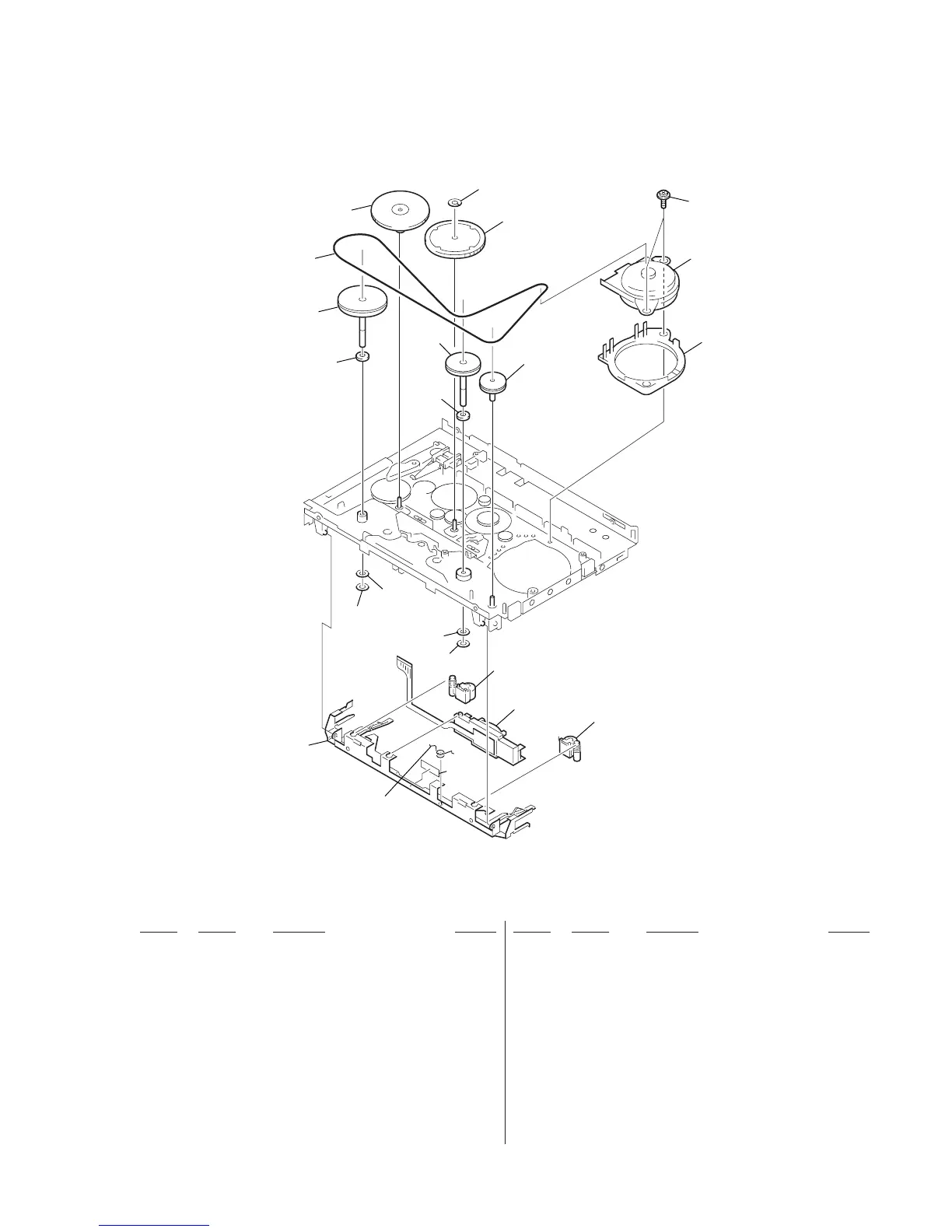

7-3. MECHANISM BLOCK –1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
902
910
911
912
913
909
907
918
901
903
904
905
906
919
908
915
916
917
914
HP901
M901
920
911 3-029-306-11 FLYWHEEL (N), INSERT
912 3-220-035-01 BELT (F4)
913 3-029-282-01 GEAR (Y)
914 3-932-724-21 WASHER
915 X-3376-813-1 CLUTCH ASSY (FM)
916 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
917 3-029-274-01 RETAINER (F2), MOTOR
918 X-3377-362-1 LEVER (N) ASSY, PINCH
919 X-3377-363-1 LEVER (R) ASSY, PINCH
920 3-033-757-01 SHEET (H)
HP901 1-500-639-21 HEAD, MAGNETIC (PLAYBACK)
M901 1-763-166-11 MOTOR (CAPSTAN/REEL)
