Sony WM-EX621 User Manual

WM-EX621
4

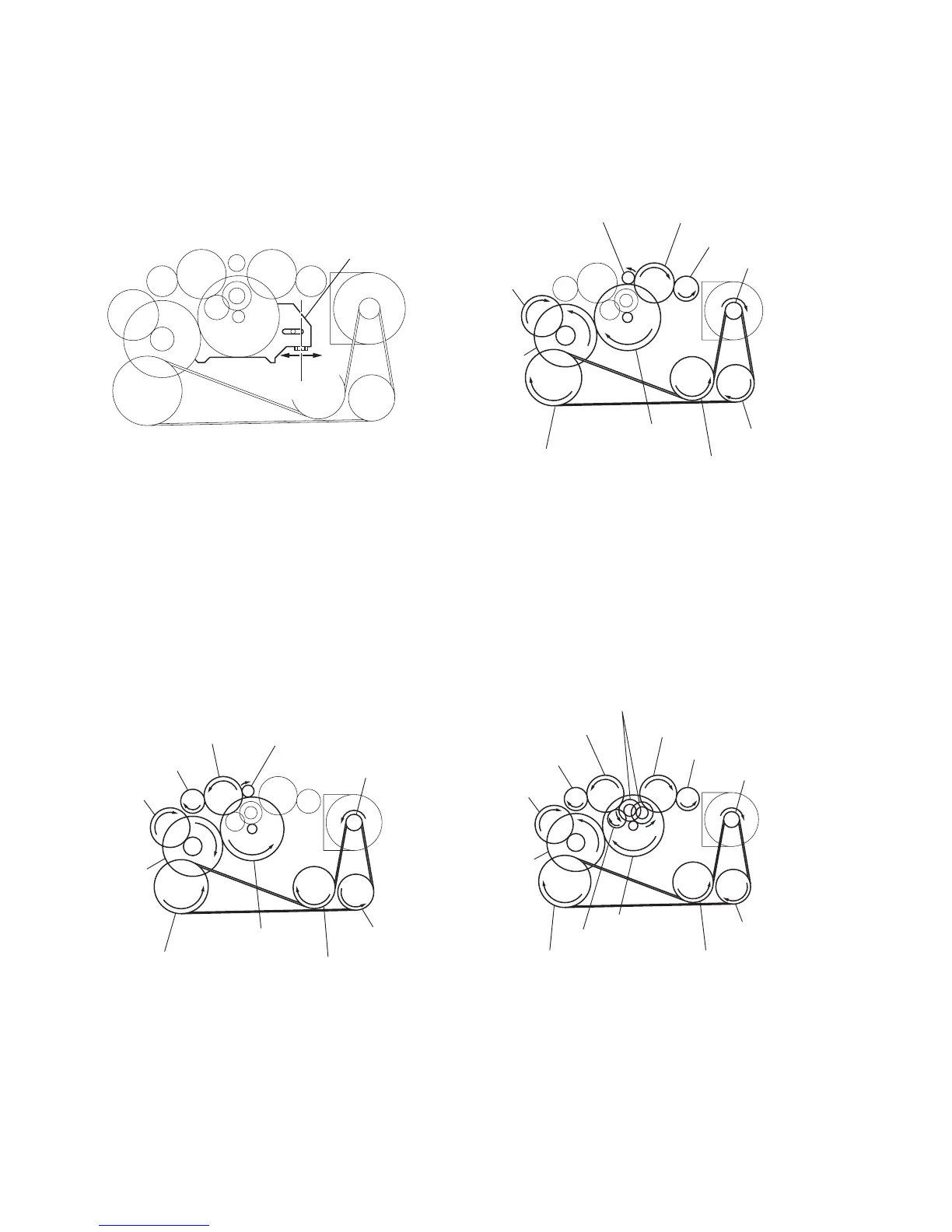

[ Slider (NR) ] [ Tape drive mechanism ]
Tape drive mechanism in PLAY mode
Tape drive mechanism in FF mode Tape drive mechanism in REW mode
Insert Flywheel (N)
Insert Flywheel (R)
Pulley (Reverse
)
Clutch Assy (F)
Gear (Y)
Cam Gear
Gear (REEL) (S side)
Motor Pulley
Idler Gear (A) (S side)
Gear (FR)
(REW:Right side)
Insert Flywheel (N)
Insert Flywheel (R)
Pulley (Reverse)
Clutch Assy (F)
Gear (Y)
Cam Gear
Gear (REEL) (T side)
Motor Pulley
Idler Gear
(A) (T side)
Gear (FR)
(FF:Left side)
Insert Flywheel (N) Insert Flywheel (R)
Pulley (Reverse
)
Clutch Assy (F)
Idler Gear (B)
Gear (Y)
Cam Gear
Gear
(REEL) (T side)
Gear (REEL) (S side)
Motor Pulley
Idler Gear
(A) (T side)
Idler Gear (A) (S side)
Gear (NR)
(FWD:Left side
REV:Right side)
Slider (NR)
F side R side
Center
