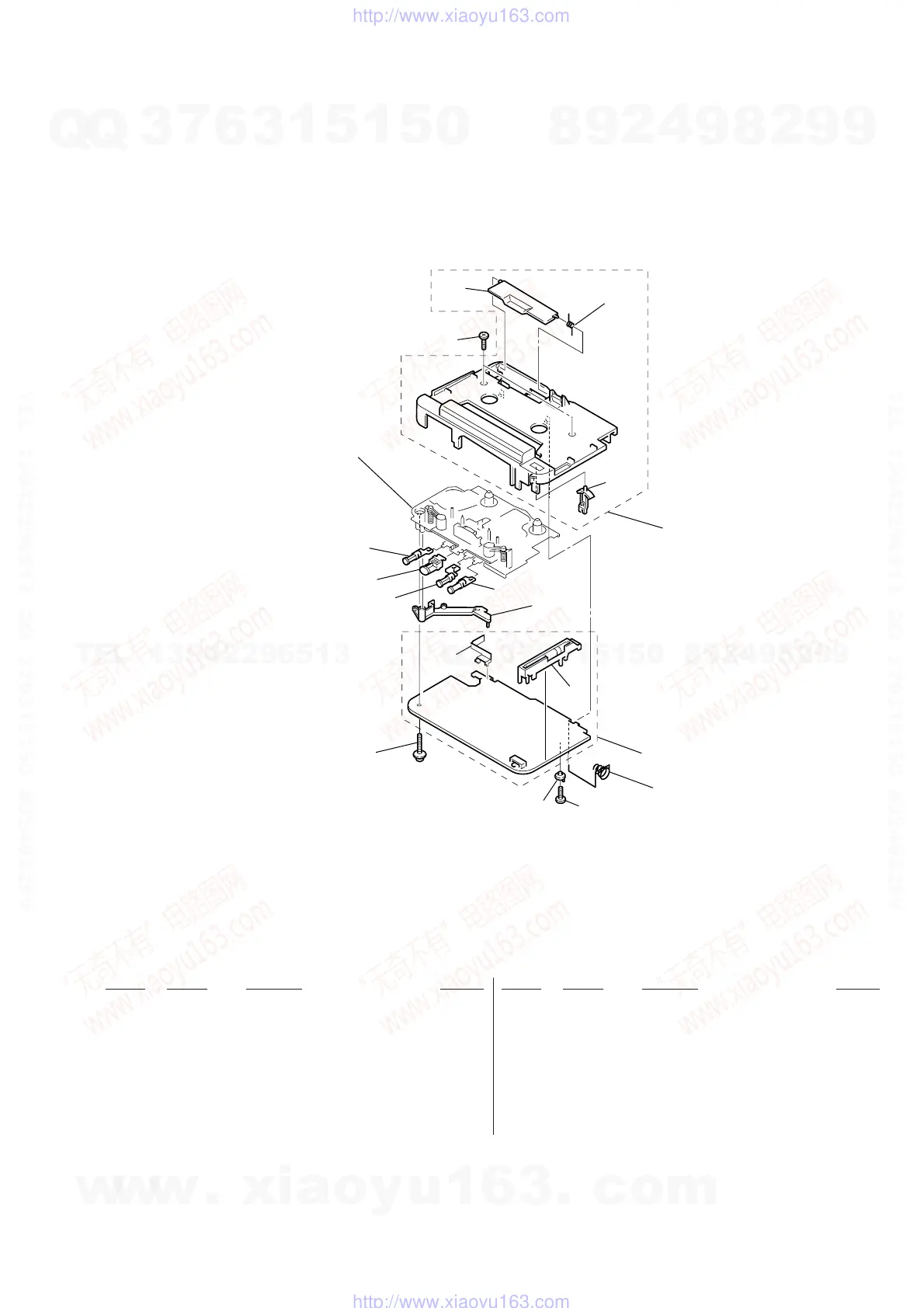

7-2. MAIN BOARD SECTION
L1
63
62
60
54
55
59
52
56
51
53
57
58
MF-WMFS220-114
#3
64
65
66
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-934-020-41 LID,BATTERY CASE
52 3-028-087-01 SPRING, TORSION
53 3-318-203-82 SCREW (B1.7X7), TAPPING
54 3-934-005-01 KNOB(DX-LOCAL)
55 X-3378-377-1 CHASSIS ASSY
56 3-042-871-01 BUTTON (REW)
57 3-042-869-01 BUTTON (PLAY)
58 3-042-870-01 BUTTON (FF)
59 3-042-868-01 BUTTON (STOP)
60 3-042-892-01 STOPPER (MD)
62 3-015-285-01 SCREW (M1.4),TOOTHED LOCK
63 A-3021-319-A MAIN BOARD, COMPLETE
64 3-934-024-01 JOINT (VOL.B)
65 3-042-872-01 TERMINAL (+), BATTERY
66 3-042-873-01 SPRING, BATTERY COIL
L1 1-754-096-11 ANTENNA, FERRITE-ROD (MW)
