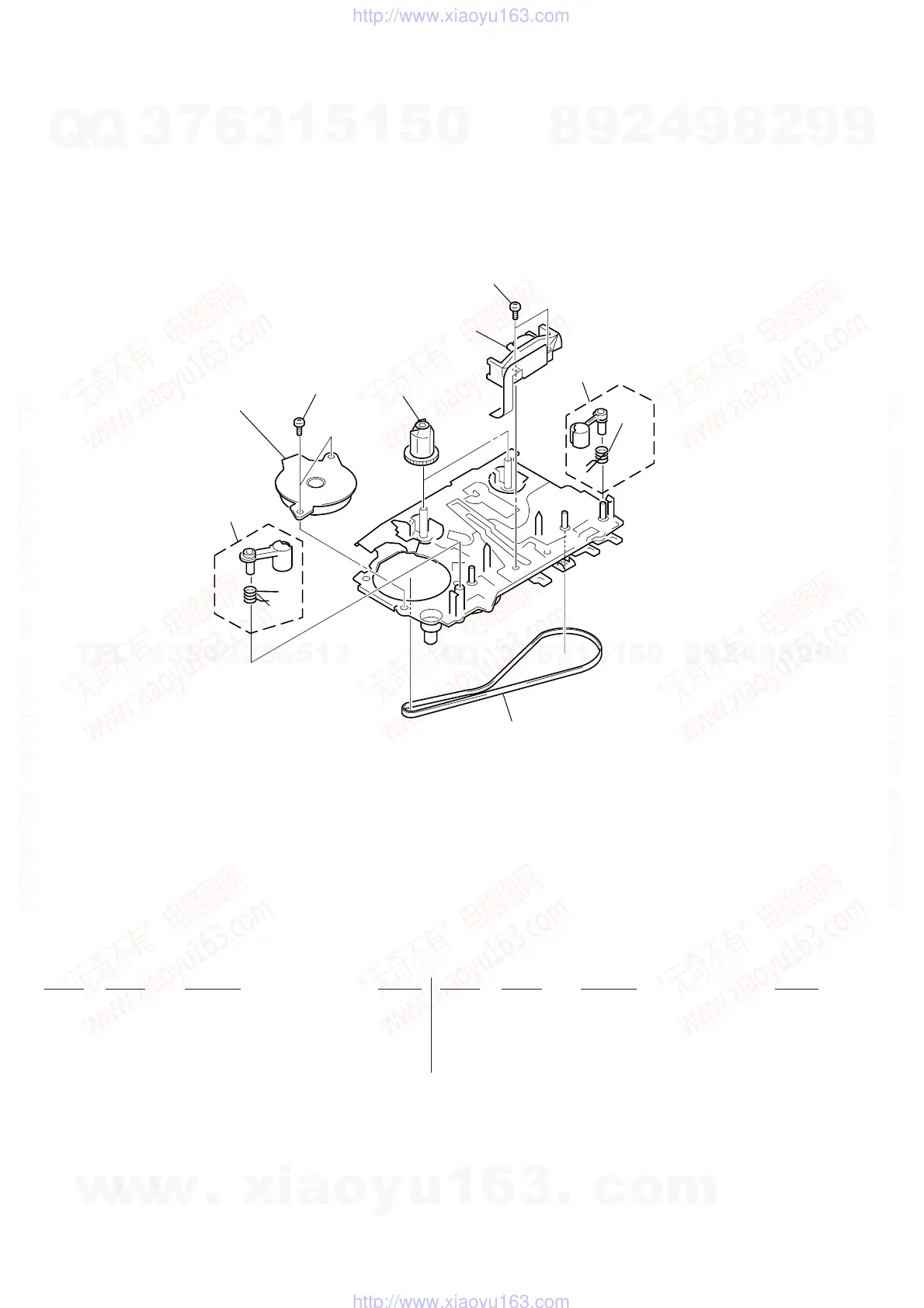

7-3. MECHANISM DECK SECTION-1
(MF-WMFS220-114)
206
205
207
208
203
202
204
201
M601
HP901
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-938-657-01 BELT
202 3-920-997-01 SPRING (PINCH R)
203 X-3369-748-1 PINCH LEVER (R) ASSY
204 3-703-816-31 SCREW (M1.4), SPECIAL HEAD
205 3-019-776-01 GEAR (REEL-S)
206 3-704-197-71 SCREW (M1.4)
207 X-3369-749-1 PINCH LEVER (N) ASSY
208 3-920-996-01 SPRING (PINCH N)
HP901 1-500-517-11 HEAD, MAGNETIC (PLAYBACK)
M601 1-763-073-11 MOTOR (REEL/CAPSTAN)(WITH PULLEY)
