16
WM-FS555/FS556

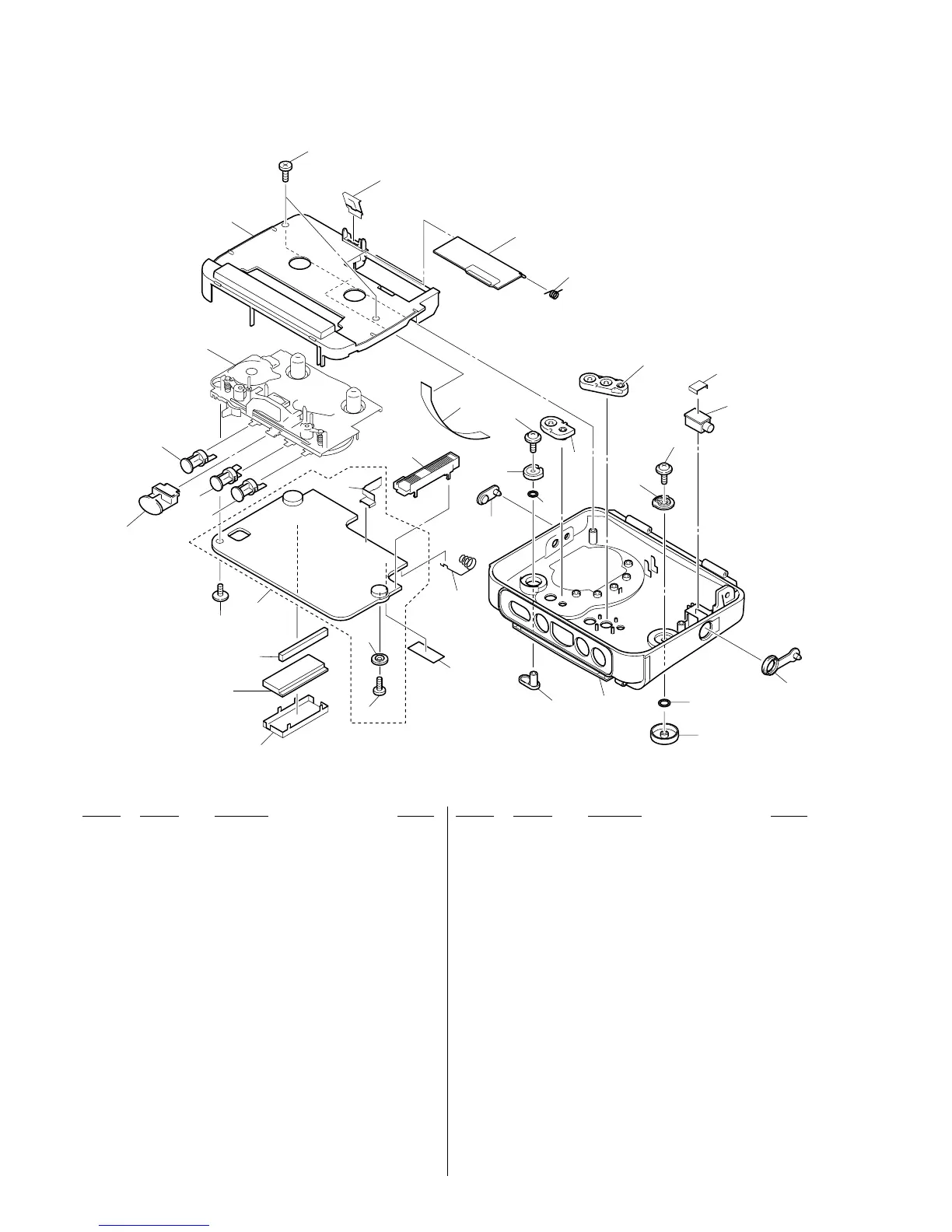

5-2. CABINET SECTION
68
67
66
65
64
63
62
61
60
58
59
56
55
54
53
52
51
57
73
74
78
79
75
77
76
83
78
82
81
80
72
71
70
69
L4
MF-WMFS555-114
LCD701
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-386-371-21 PACKING, HP JACK
52 3-221-321-11 KNOB (VOL)
53 3-012-927-01 RING, O
54 X-3381-679-1 CABINET (REAR) SUB ASSY (FS555:US,
FS556)
54 X-3381-683-1 CABINET (REAR) SUB ASSY (FS555:CND,E)
54 X-3381-684-1 CABINET (REAR) SUB ASSY (FS555:AEP)
55 3-235-975-01 KNOB (HOLD)
56 3-018-075-01 SPACER
57 3-235-982-01 TERMINAL (-), BATTERY
58 3-221-309-01 LEVER (VOL) (A)
59 4-223-413-01 SCREW (M1.4X3)
* 60 3-039-660-01 HOLDER (LCD)
61 3-040-176-01 RUBBER, CONDUCTIVE
* 62 A-3021-752-A MAIN BOARD, COMPLETE (US)
* 62 A-3021-754-A MAIN BOARD, COMPLETE (CND)
* 62 A-3021-755-A MAIN BOARD, COMPLETE (AEP)
* 62 A-3178-859-A MAIN BOARD, COMPLETE (E)
63 3-921-955-01 SCREW (M1.4), TOOTH (WH)
64 3-227-298-01 BUTTON (STOP)
65 3-227-299-01 BUTTON (FF)
66 3-227-297-01 BUTTON (PLAY)
67 3-227-300-01 BUTTON (REW)
68 3-235-970-01 CHASSIS
69 3-318-203-32 SCREW (B1.7), TAPPING
70 3-235-983-01 SPRING
71 3-235-974-01 LID, BATTERY CASE
72 3-231-465-02 SPRING, TORSION
73 3-921-878-02 TERMINAL BOARD, BATTERY
74 3-922-445-02 SHEET, BATTERY
75 3-922-447-21 PACKING, DC JACK
76 3-326-560-02 RING (DIA. 2.5XDIA. 4.5), O
77 3-221-299-01 LEVER (HOLD)
78 3-318-201-51 SCREW (B) (1.4X4), TAPPING
79 X-3381-680-1 BUTTON (BAND) SUB ASSY
80 X-3381-681-1 BUTTON (PRESET) SUB ASSY
81 3-018-075-01 SPACER
* 82 1-682-796-11 H/P BOARD
83 3-221-310-01 LEVER (VOL) (B)
L4 1-424-999-11 COIL, FERRITE-ROD ANTENNA (MW)
LCD701 1-804-256-11 LIQUID CRYSTAL DISPLAY
To Next Page
