4
WM-FS555/FS556

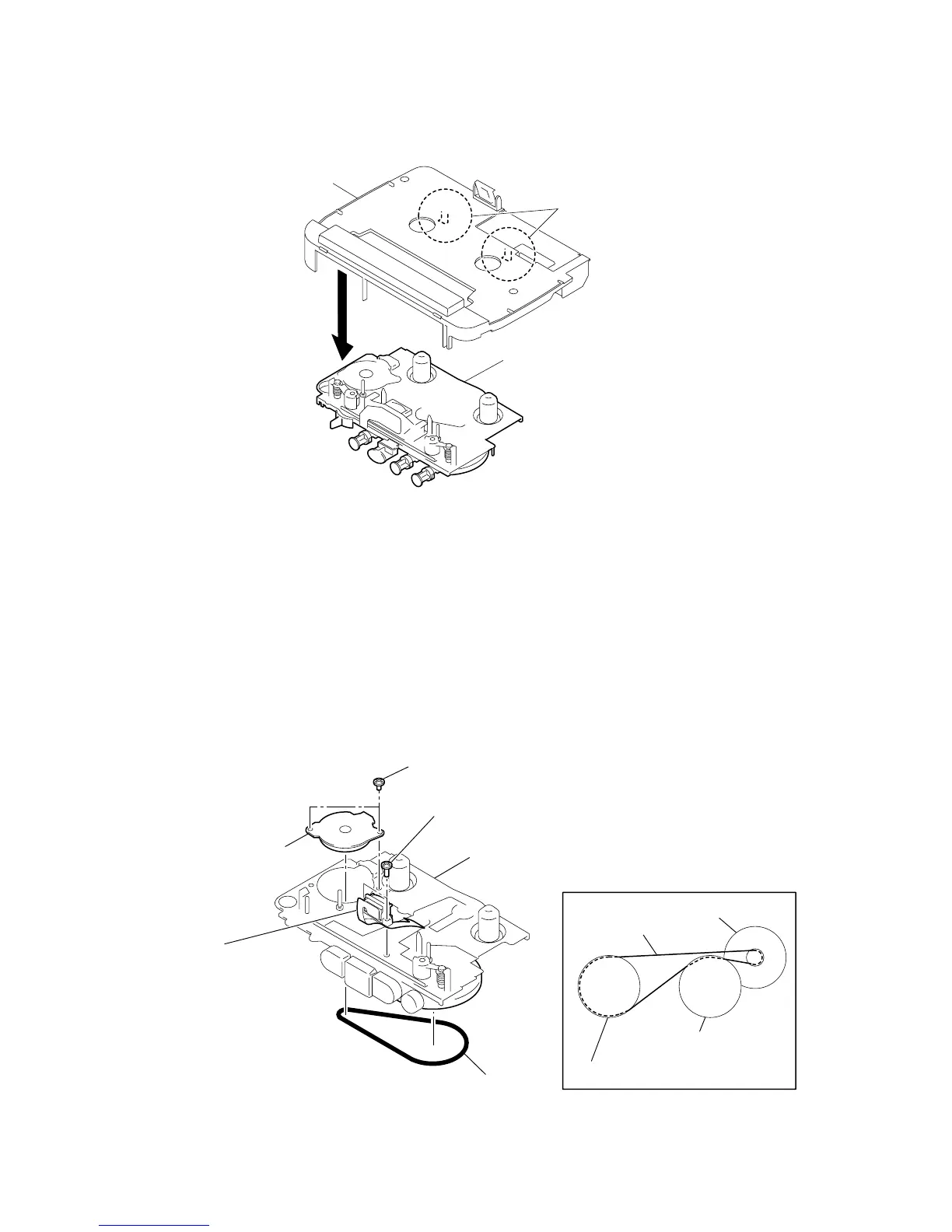

2-3. MECHANISM DECK
2-4. BELT, CAPSTAN/REEL MOTOR (M601), MAGNETIC HEAD (PLAYBACK) (HP901)
1 Claw
s
Mechanism deck
Chassis
2
wheel ASSY (P), capstan
wheel ASSY (P), capstan
Belt
• How to apply the belt
Capstan/reel motor
(M601)
1
Belt
5
magnetic head
(PLAYBACK)
(HP901)
3
Capstan/reel motor
(M601)
2
Two screws (M1.4)
4
Two screws (M1.4)
Mechanism deck
