Sony WM-FX193 Service Manual

– 5 –
3 Move it away from projection
1
5
Holder sub ASSY, Cassette
Holder sub ASSY, Cassett
e
Holder sub ASSY, Cassette
Cabinet (front)
Cabinet (front)
Cabinet (front)
2 Move it away
from projection
4 Spring (torsion)
Holder sub ASSY, Cassette
Cabinet (front)
5
4
1
3
2
Spring (torsion)
Hinge
Hinge
Dial indicator

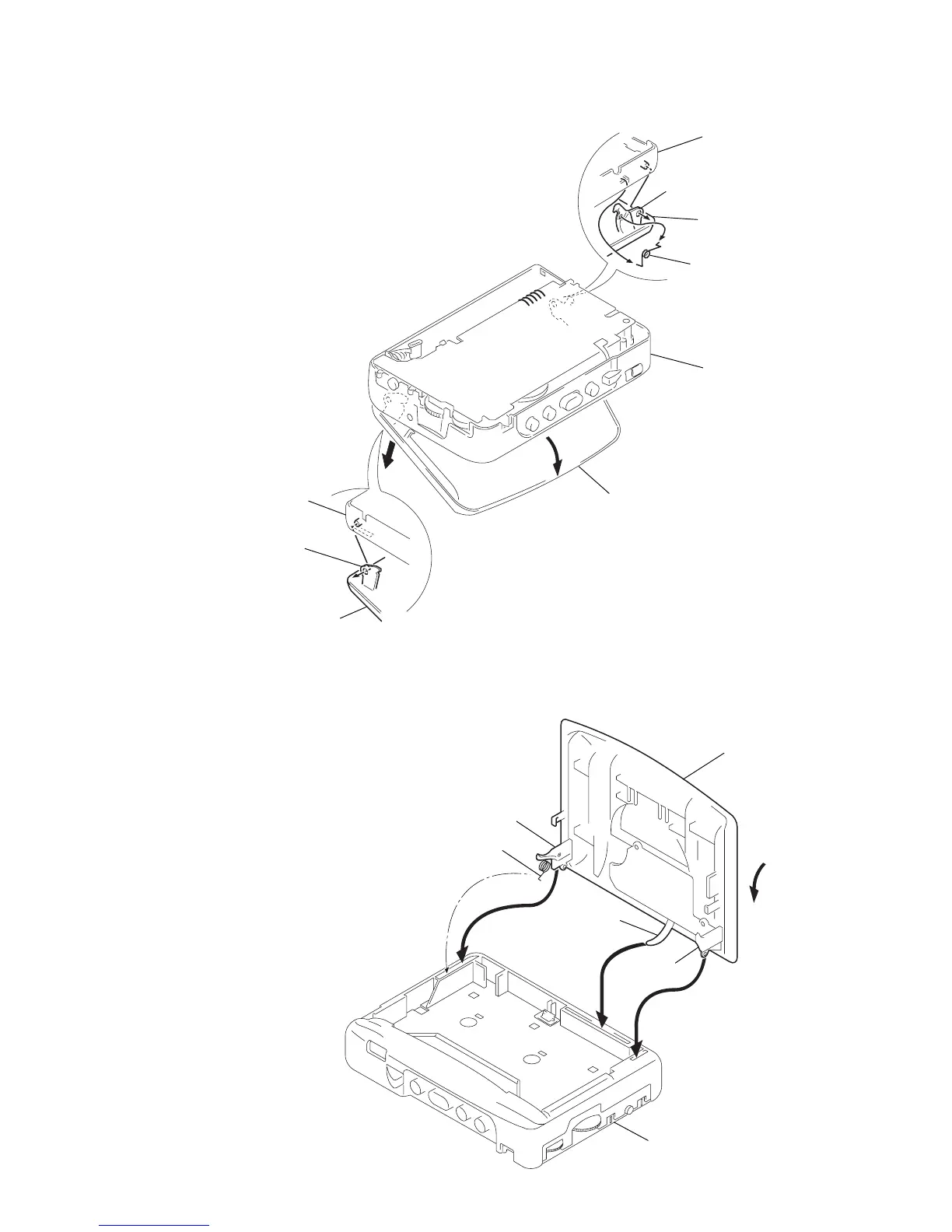

2-5. HOLDER SUB ASSY, CASSETTE
z
CAUTIONS DURING ASSEMBLY
1 Insert the dial indicator to the square hole of the cabinet
(front) and align to the pointer.
2 Insert the spring (torsion) in to the L shape slot as shown in
the figure.
3, 4 Insert the hinge of the “Holder sub ASSY, Cassette”.
5 Close the “Holder sub ASSY, Cassette” then press in.
