– 6 –

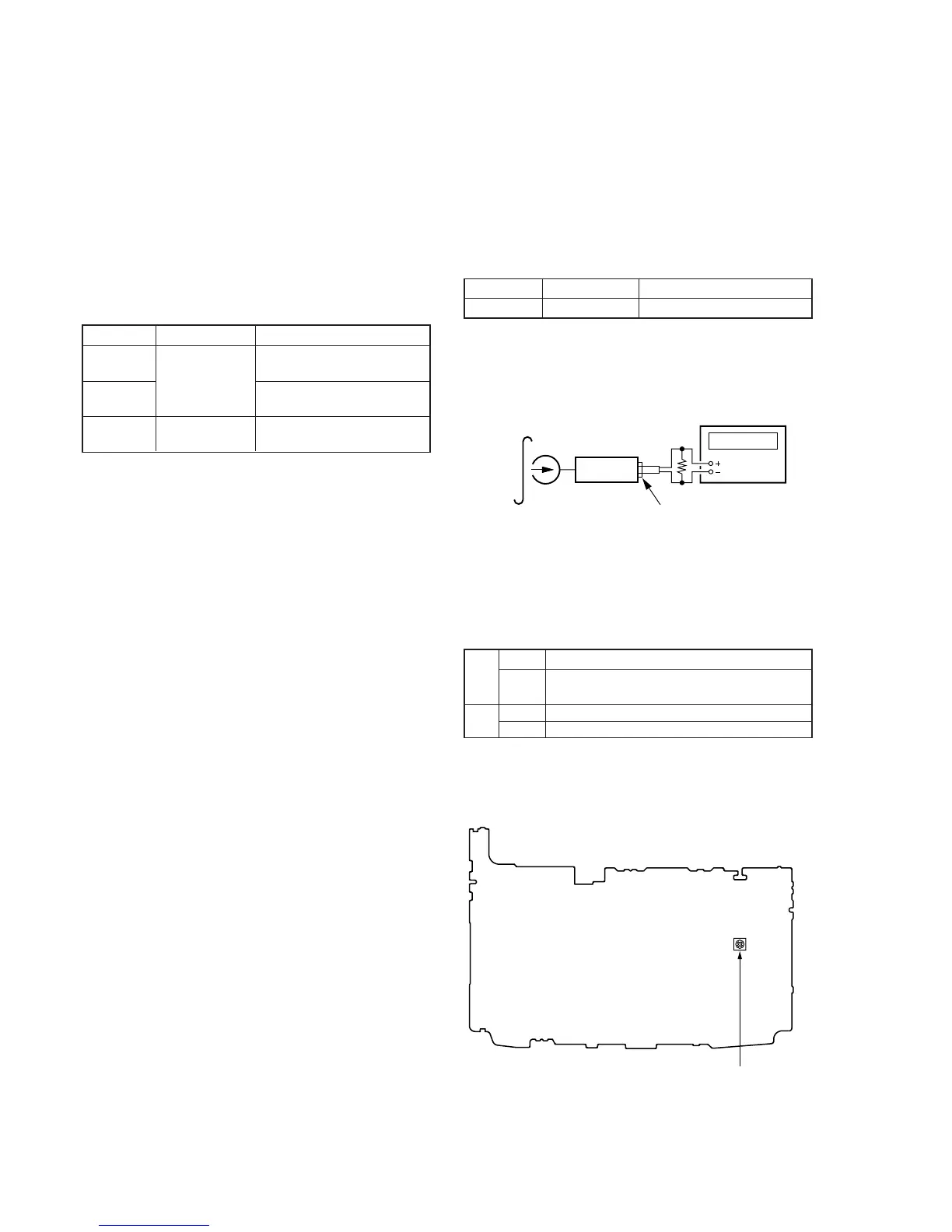

3-1. MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-alcohol-moistened
swab :
playback head pinch roller
capstan rubber belt
2. Demagnetize the playback head with a head demagnetizer.
3. Do not use a magnetized screwdriver for the adjustments.
4. These measurement and adjustment should be performed with
the rated power supply voltage (2.5 V) unless otherwise noted.
Torque Measurement
Mode Torque Meter Meter Reading
FWD
20 – 30 g • cm
CQ-102C
(0.28 – 0.41 oz• inch)
FWD 0.4 – 2 g • cm
back tension (0.006 – 0.027 oz• inch)
FF, REW CQ-201B
more than 40 g • cm
(more than 0.56 oz• inch)
SECTION 3
ADJUSTMENTS
3-2. ELECTRICAL ADJUSTMENTS
PRECAUTION
Supplied voltage : 2.5V.
Switch and control position
MEGA BASS switch : OFF (FX195)
VOLUME control : maximum
AVLS switch : NORM
Test Tape
Type Signal Used for
WS-48A 3kHz, 0dB Tape Speed Adjustment
Tape Speed Adjustment
Procedure :
1. Playback WS-48A (tape center part) and adjust RV601 so that
the frequency counter reading becomes 3,000Hz.
Standard value : 2,985–3,015Hz
2. Playback WS-48A (tape top and end).
Check that frequency counter reading is within 1.5% of the read-
ing of step 1.
*1
FX193 E, Chines, Saudi Arabia,
16
FX195
E, Chines, Saudi Arabia, AEP, French, Italian,
CEV
32
FX193 US, Canadian, AEP, French, Italian, CEV
FX195 Canadian
Abbreviation
CEV : Ukraine, Hungary, Czech
Adjustment Location :
set
test tape
WS-48A
(3kHz, 0dB)
frequency counte
r
phones jack (J302)
*
1
[MAIN BOARD] (Conductor side)
RV601 : Tape Speed Adjustmen
t
