– 7 –
TUNER SECTION
AM Section
BAND : AM
FM Section
BAND : FM
*1
FX193 E, Chines, Saudi Arabia,
16Ω
FX195
E, Chines, Saudi Arabia, AEP, French, Italian,
CEV
32Ω
FX193 US, Canadian, AEP, French, Italian, CEV
FX195 Canadian
• Abbreviation
CND : Canadian
E5, E6 : South America
CEV : Ukraine, Hungary, Czech
AM RF signal
generator
30% amplitude modulation by 400Hz
signal.
Output level : as low as possible
Put the lead-wire
antenna close to
the set.
set
*
1
phones jack (J302)
level mete
< > : US, Canadian, E5, E6 model
[ ] : Italian, Saudi Arabia model
AM IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T1 455kHz
AM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L4 505kHz [516.5kHz]
CT4 1,690kHz < 1,770kHz> [1,631.5kHz]
AM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 620kHz
CT1 1,400kHz
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L3 86MHz [87.35MHz]
CT3 109.5MHz [108.25MHz]
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L2 86MHz [87.35MHz]
CT2 109.5MHz [108.25MHz]
C12
TP339
TP338
FB101
FB301
JR5
JR2
JR3
FB201
JR4
JR1
TP1
TP9
TP8
S1
L4
T1
CP
-1
-2
EXCEPT US, CND,
E5, E6 MODEL
US, CND, E5, E6 MODEL
US, C
FM RF signal
generator
22.5kHz frequency deviation
by 400Hz signal.
Output level :
as low as possible
TP1
0.01
µ
F
[MAIN BOARD]
(Conductor side)

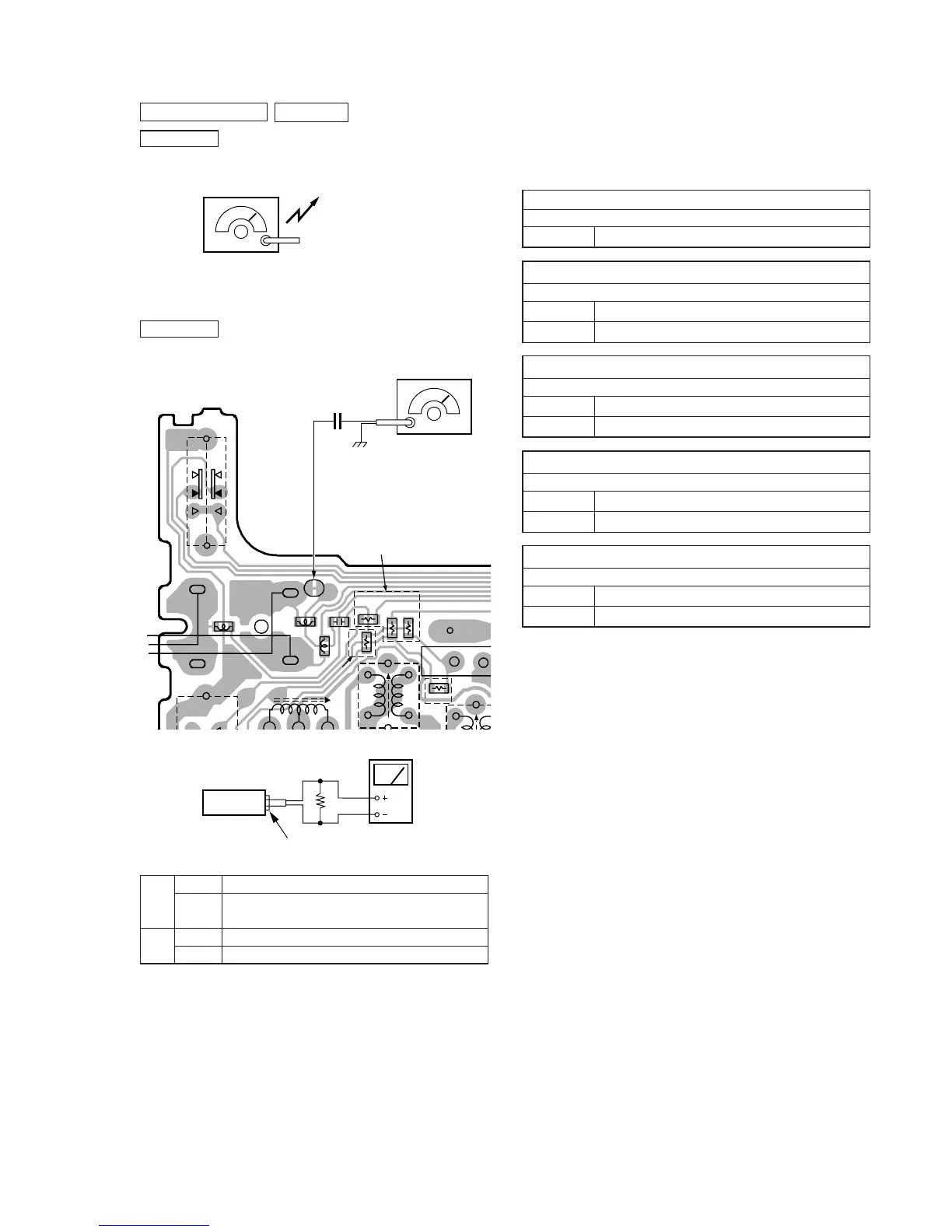

Adjustment Location : Main board (See page 8)
0 dB = 1µV
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
To Next Page
