– 7 –

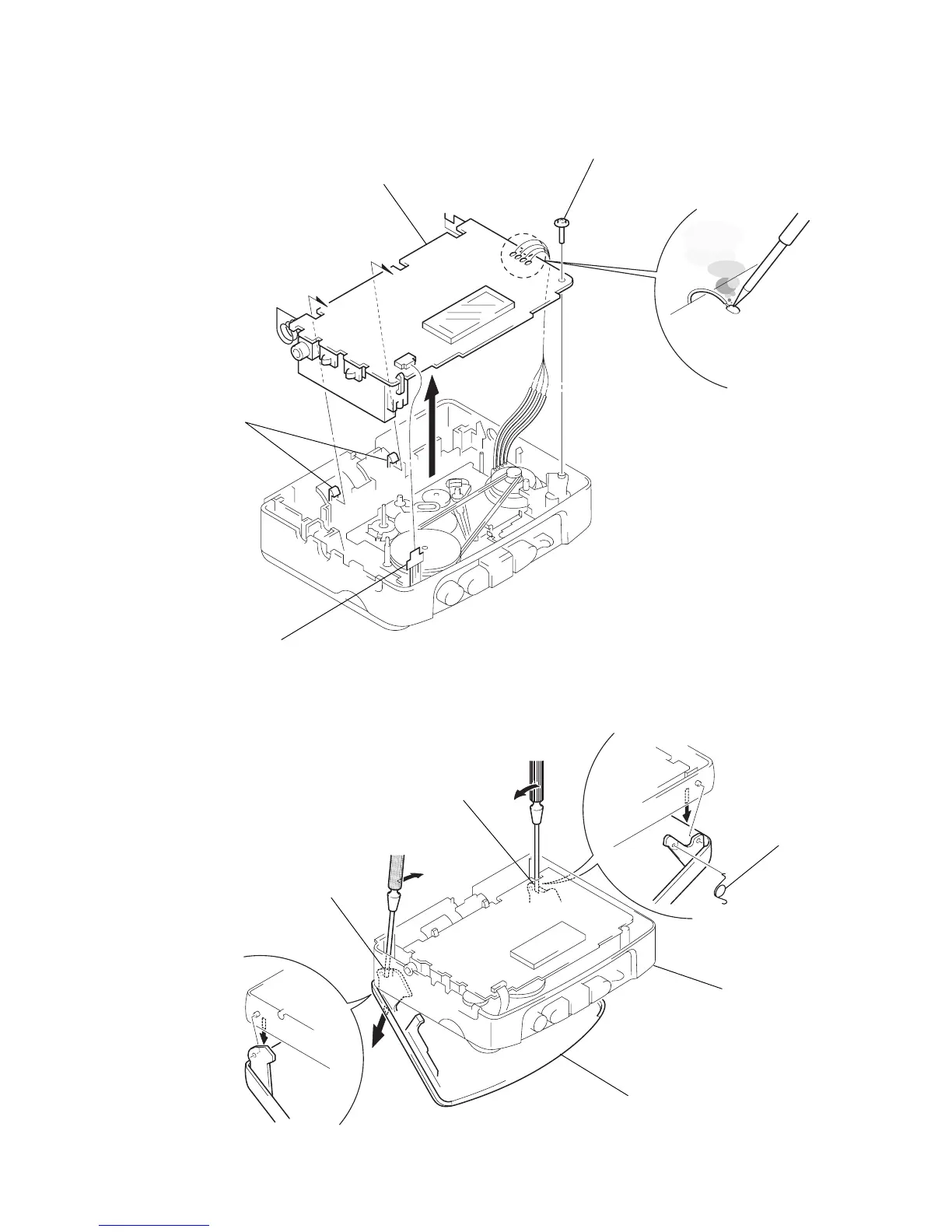

MAIN BOARD
CASSETTE HOLDER
2
Insert a precision screwdriver
(1.4 mm flat-blade) vertically
in to portion
A
to release the
hinge plate.
3
Portion
B
to release the
hinge plate.
3
screw (M1.4)
5
MAIN board
4
two claws
1
flexible board
(CN301)
2
Removal the
four solders.
A
B
center cabinet
5
torsion sprin
g
1
Open the cassette holder.
4
cassette holder
