– 8 –

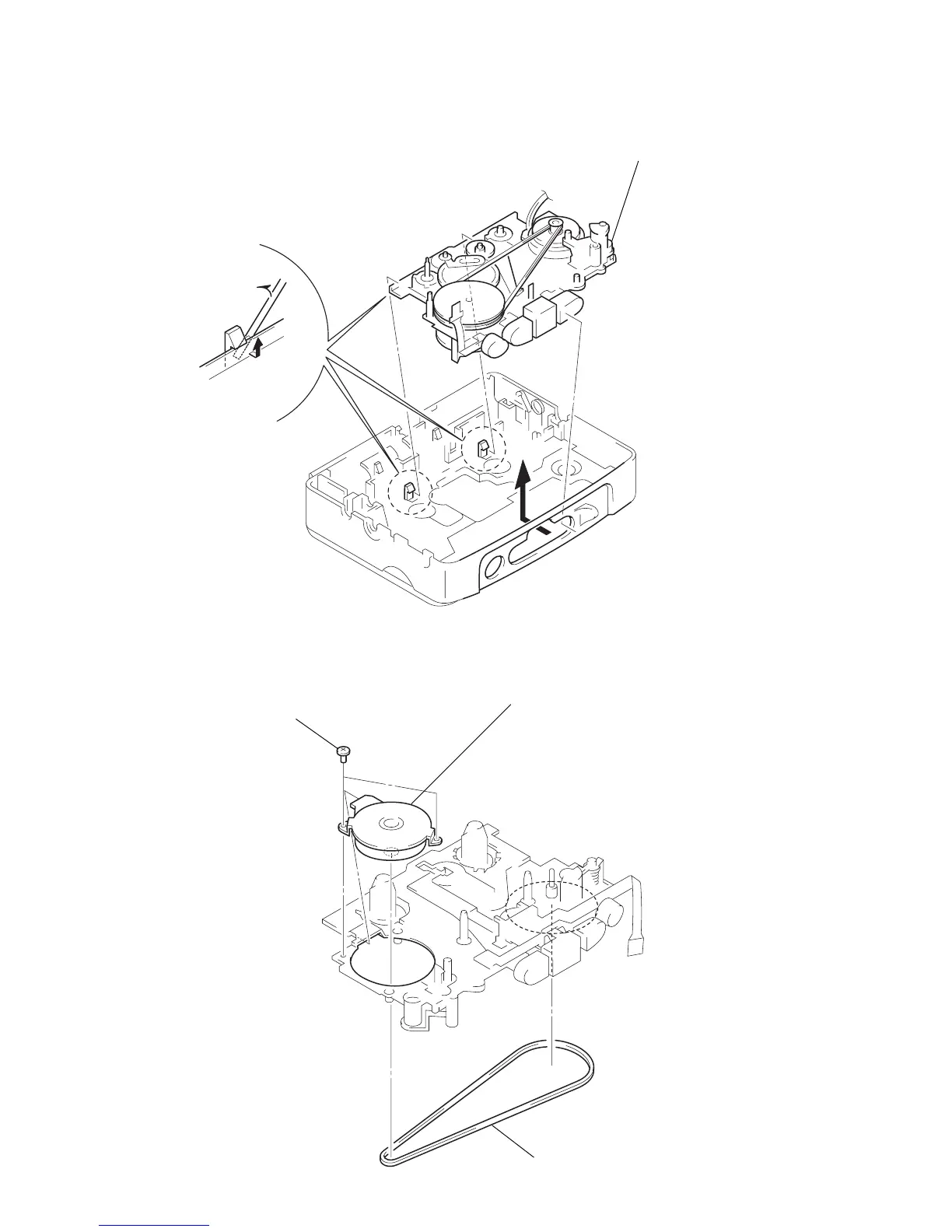

MECHANISM DECK (MF-WMFX251-114)
BELT, MOTOR (REEL /CAPSTAN) (M901)
1
Insert the precision screwdriver
(1.4 mm flat-blade) in the slit
and relese two claws.
2
Remove the mechanism deck
(MF-WMFX251-114) in the
direction of the arrow
A
.
A
2
two screws
(M1.4
×
1.6)
3
motor (reel/capstan)
(M901)
1
belt
