WM-GX677
— 17 — — 18 —

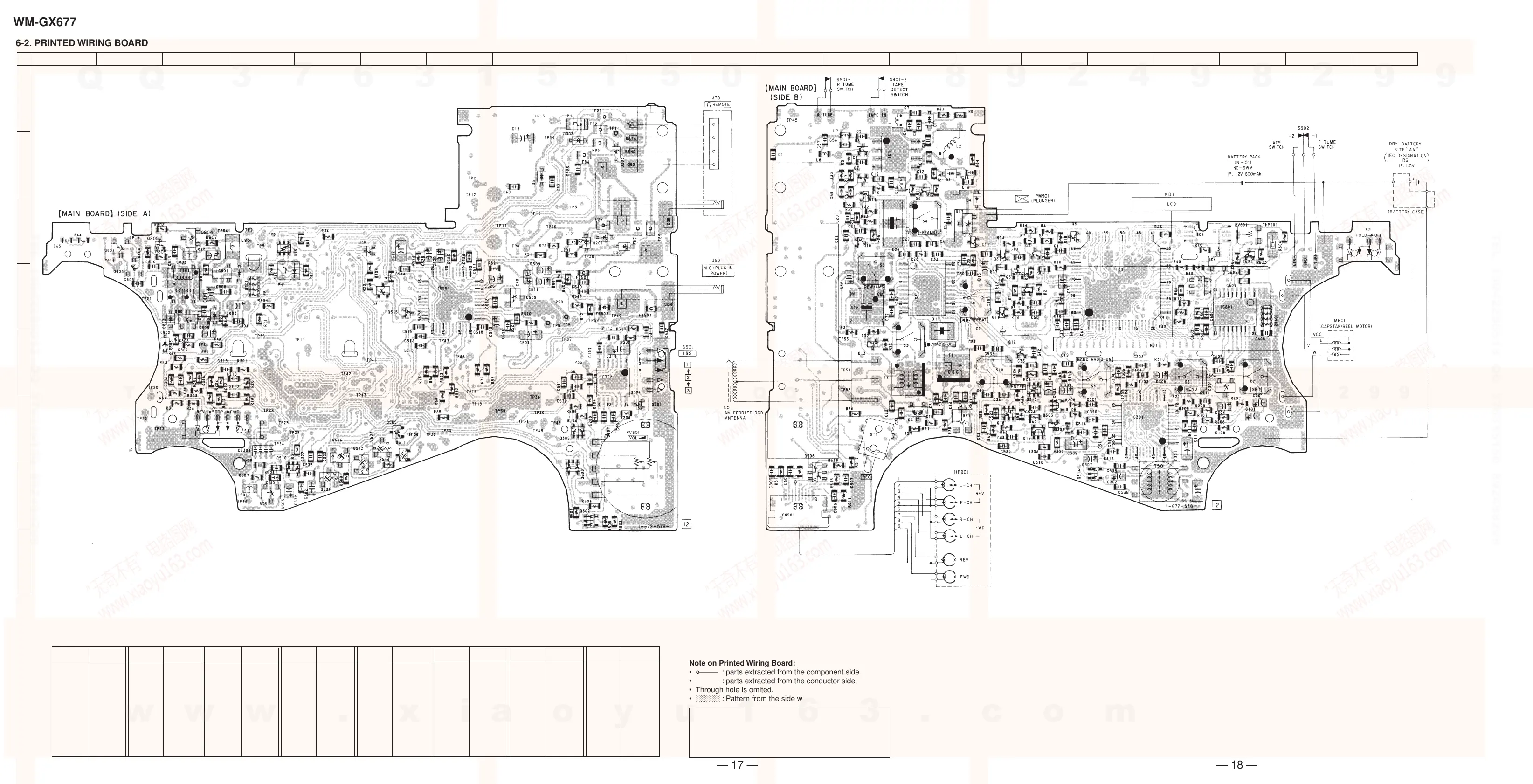

6-2. PRINTED WIRING BOARD
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• Through hole is omited.
• b : Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from
(SIDE B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
— 16 —
• Semiconductor Location
Ref. No. Location Ref. No. Location
D1 A-14
D2 B-14
D3 F-14
D4 C-15
D5 B-8
D101 C-9
D201 C-9
D301 C-9
D302 B-9
D303 B-9
Ref. No. Location
D801 D-4
D802 E-3
D803 D-3
D804 D-3
IC1 B-14
IC2 D-14
IC3 D-17
IC4 F-18
IC5 D-18
IC6 C-19
IC301 F-17
IC302 E-9
IC501 D-7
IC601 D-19
IC801 D-3
Q1 D-16
Q2 C-16
Q3 B-13
Q4 B-14
Q5 D-15
Q6 C-15
Q7 B-13
Q8 C-16
Q9 D-6
Q10 C-13
Q11 D-15
Q12 E-16
Q13 E-13
Ref. No. Location
Q14 B-13
Q15 C-4
Q16 C-15
Q17 C-15
Q18 F-15
Q19 F-16
Q20 C-6
Q301 E-19
Q302 F-16
Q303 F-16
Ref. No. Location
Ref. No. Location
Q304 F-9
Q305 F-9
Q501 G-4
Q502 G-9
Q503 G-9
Q504 G-5
Q505 F-6
Q506 F-5
Q507 F-6
Q508 G-12
Q509 D-8
Q510 G-4
Q511 F-5
Q512 F-6
Q513 E-16
Q514 G-17
Q515 D-6
Q601 C-19
Q602 C-19
Q801 D-3
Q802 C-2
Q803 D-2
Q804 C-3
Q805 C-2
Ref. No. Location Ref. No. Location
12
A
B
C
D
E
F
G
H
