— 30 —
51 X-3376-293-1 HOLDER (F) ASSY
52 X-3377-228-1 LEVER (R) ASSY, PINCH
53 3-029-271-01 SPRING (HD)
54 X-3377-227-1 LEVER (N) ASSY, PINCH
55 3-029-276-01 WASHER (STOPPER R)
56 3-029-289-01 WASHER
57 3-029-275-01 WASHER (STOPPER N)
58 3-029-278-01 WASHER
59 X-3376-813-1 CLUTCH ASSY (F)
60 3-932-724-21 WASHER
61 3-029-287-01 SPRING (TG), TORSION
62 3-386-694-01 WASHER
63 3-029-306-01 FLYWHEEL (N), INSERT
64 3-032-576-01 BELT
65 3-029-268-01 FLYWHEEL (R), INSERT
66 3-007-428-01 WASHER (R)
67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
68 3-029-274-01 RETAINER (F2), MOTOR
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
69 3-007-433-01 SHEET (N), REFLECTION
70 X-3376-291-1 CHASSIS ASSY (F)
71 3-010-274-02 TABLE, REEL
72 3-010-954-01 SPRING (BT), COMPRESSION
73 3-029-282-01 GEAR (Y)
74 3-029-285-01 GEAR, CAM
75 3-029-284-01 LEVER, TRIGGER
76 3-029-281-01 GEAR, IDLER (B)
77 3-010-273-02 GEAR (REEL)
78 3-029-273-01 GEAR (FR)
79 3-029-283-01 GEAR, IDLER (A)
80 3-029-286-01 GEAR (NR)
81 3-029-288-01 PULLEY, REVERSE
83 3-032-575-01 LEVER, HEAD
84 3-704-413-31 SCREW (M1.4 × 7.2)
HP901 1-500-355-21 HEAD, MAGNETIC (REC/PB/ERASE)
M601 1-763-166-11 MOTOR (CAPSTAN/REEL)(WITH PULLEY)
PM901 1-454-674-31 SOLENOID, PLUNGER
63
PM901
HP901
M601
60
62
66
65
67
68
56
70
55
58
57
54
51
52
64
71
71
72
72
73
74
75
76
77
77
78
79
79
80
81
59
61
69
53
61
83
84

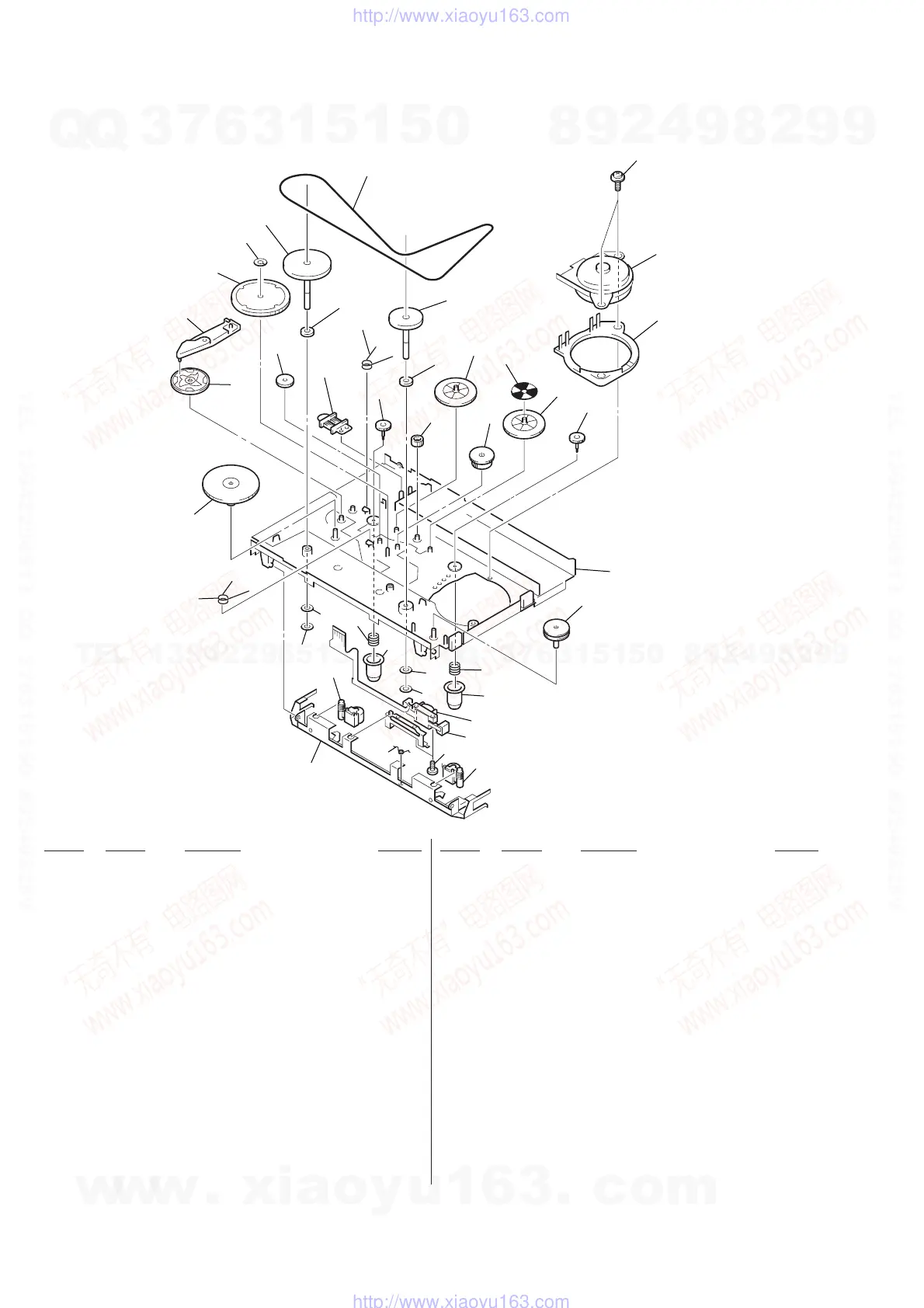

7-2. MECHANISM DECK BLOCK
