SECTION 3
DISASSEMBLY
Note : Disassemble the unit in the order as shown below.
Note : Follow the disassembly procedure in the numerical order given.
Set
Case block
assembly
Belt (F2)
Cassette lid assembly Main board
Reel ornament
assembly
Motor
(M601)
Holder
assembly
Pinch lever (N)/(R)
assembly
Magnetic hea
(HP901)

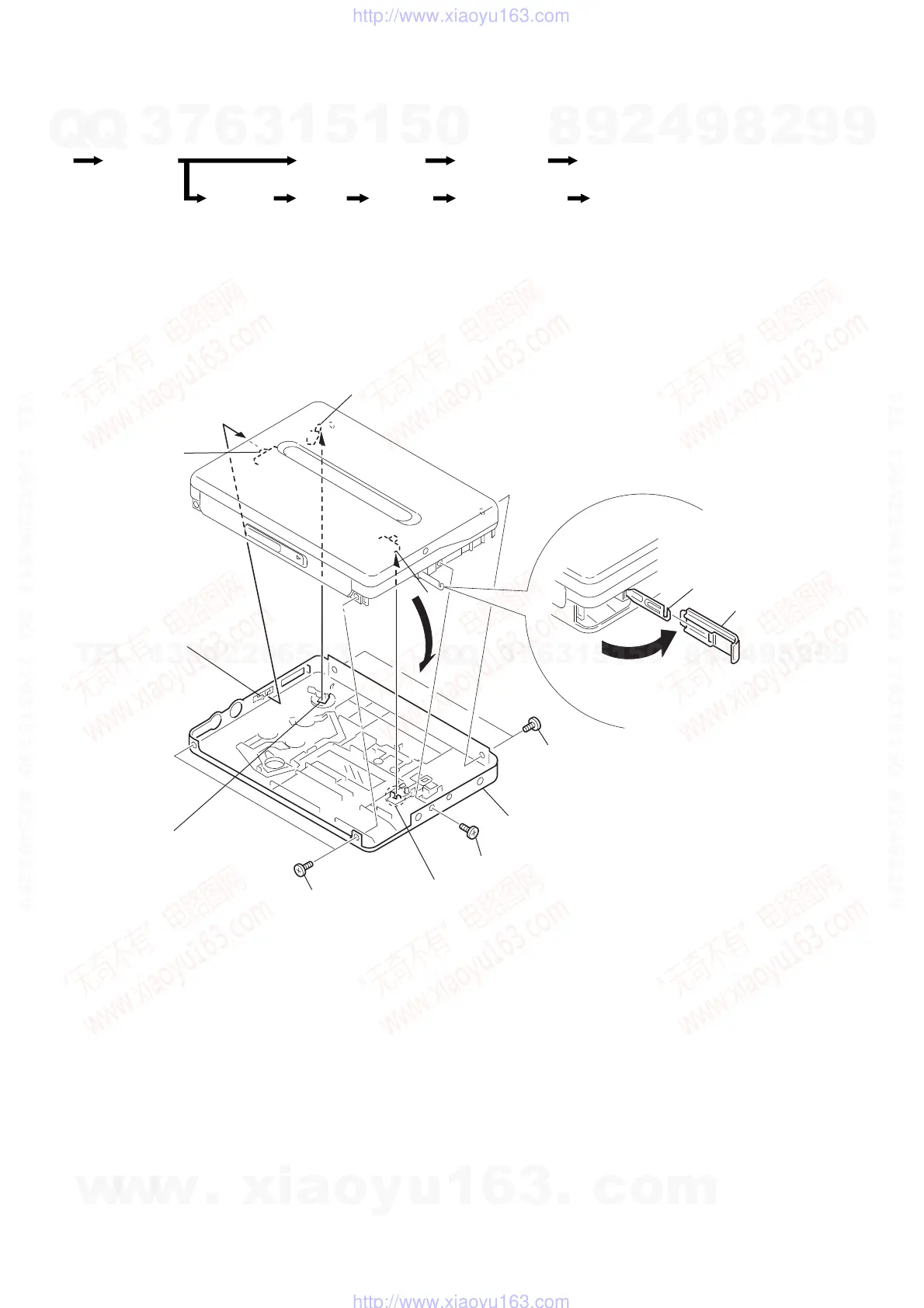

3-1. CASE BLOCK ASSEMBLY
3
Screw (M1.4
×
2.5)
2
Two screws
(M1.4
×
2.5)
1
Battery case Lid
5
Remove the case block assembly
in the direction of the arrow.
4
Two screws
(M1.4
×
2.5)
knob (HOLD)
Claw
S11
S501
S2
Note:
When assembling the case
block assembly, align the
knob (HOLD) with the
position of S2.
knob (ISS)
Note:
When assembling the case
block assembly, align the
knob (ISS) with the
position of S501.
knob (REC)
Note:
When assembling the case
block assembly, align the
knob (REC) with the
position of S11.
