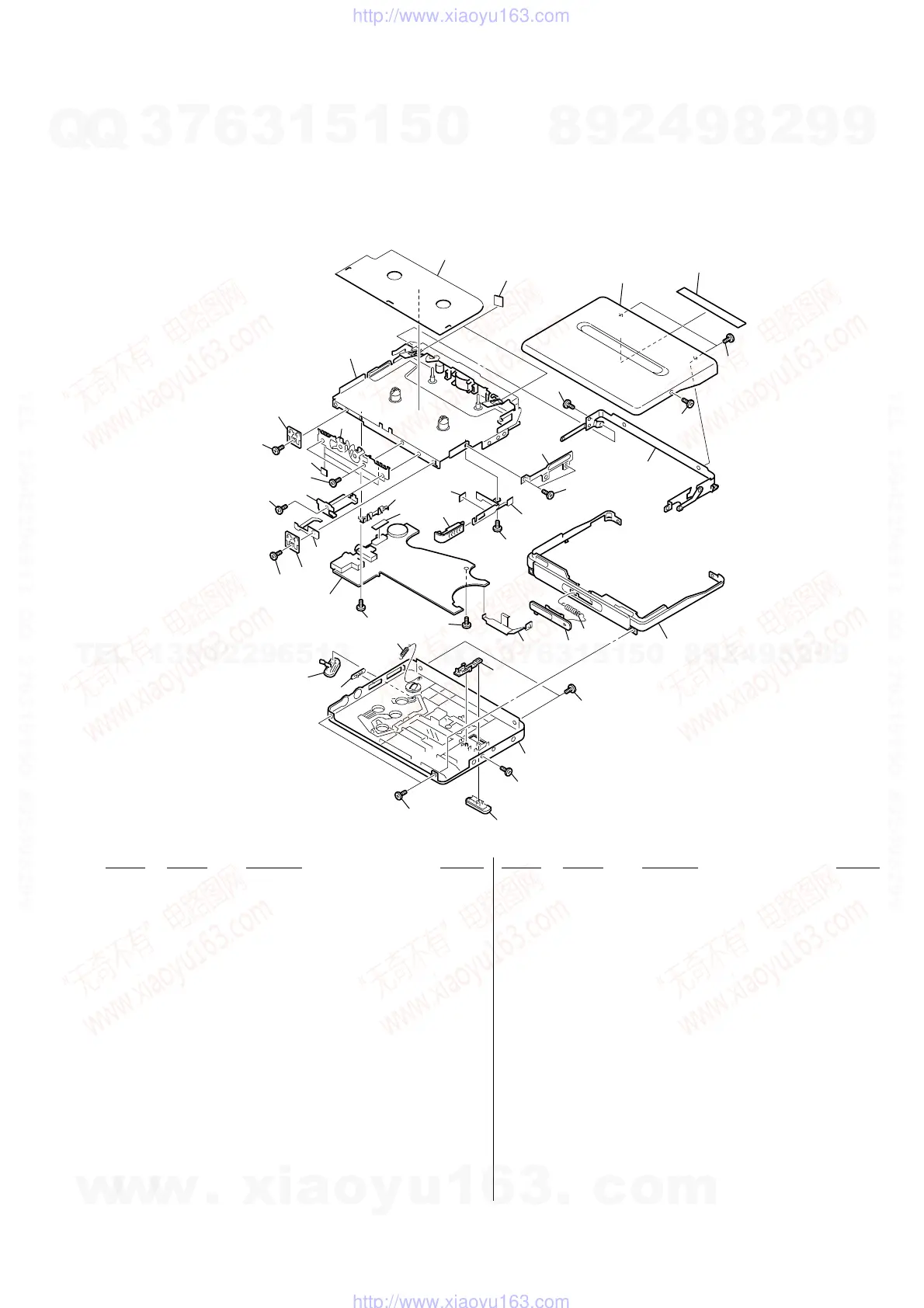

SECTION 7
EXPLODED VIEWS
NOTE:
-XX, -X mean standardized parts, so they may
have some differences from the original one.
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The mechanical parts with no reference number
in the exploded views are not supplied.
Accessories and packing materials are given in
the last of this parts list.
— 29 —
23
34
29
35
31
30
31
32
24
25
26
11
9
8
13
36
2
7
1
2
3
2
5
4
6
11
33
10
12
17
14
15
28
27
12
S901
S902
21
19
18
12
20
MF-WMGX670-162
7-1. CABINET BLOCK, MAIN BOARD
1 X-3377-067-1 CASE (GX-BS7) ASSY
2 3-704-197-21 SCREW (M1.4 × 2.5), LOCKING
3 3-034-067-01 KNOB (HOLD-B)
4 3-034-061-01 KNOB (REC-B)
5 3-034-066-01 KNOB (ISS)
6 3-034-062-01 SPRING, TENSION
7 3-034-075-01 LEVER (HOLD)
8 3-029-219-01 KNOB (OPEN)
9 3-029-220-01 SPRING, TENSION
10 A-3021-206-A MAIN BOARD, COMPLETE
11 3-893-942-11 SCREW (1.7 × 3), TAPPING (B)
12 3-366-892-01 SCREW (M1.4)
13 3-029-213-01 TERMINAL BOARD
14 3-029-210-01 TERMINAL BOARD (MINUS)
15 3-035-199-01 SHEET (GR3)
17 1-672-579-11 FLEXIBLE (ATS) BOARD
18 3-704-197-03 SCREW (M1.4 × 1.6), LOCKING
19 3-034-074-01 RETAINER, FLEXIBLE
20 3-328-483-11 SHEET
21 X-3376-277-1 BRACKET ASSY
23 3-029-205-01 COVER, MD
24 3-029-217-01 LEVER (B), LOCK
25 3-366-892-11 SCREW (M1.4 × 1.4)
26 X-3376-278-1 TERMINAL BOARD ASSY, BATTERY
27 3-031-460-01 SHEET (BT)
28 3-034-068-01 LID, BATTERY
29 A-3050-930-A LID BLOCK ASSY, CASSETTE
30 3-365-630-41 SCREW (M1.4)
31 3-704-197-11 SCREW (M1.4 × 2.0), LOCKING
32 X-3376-279-1 BRACKET (CASSETTE) ASSY
33 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
34 3-036-547-01 CUSHION (GR7)
35 3-036-323-01 SHEET (GR6)
36 3-034-072-11 ORNAMENT, REEL
S901 1-692-101-11 SWITCH, LEAF (TAPE/R TUME)
S902 1-692-100-11 SWITCH, LEAF (ATS/F TUME)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Ver 1.1 2000.08
