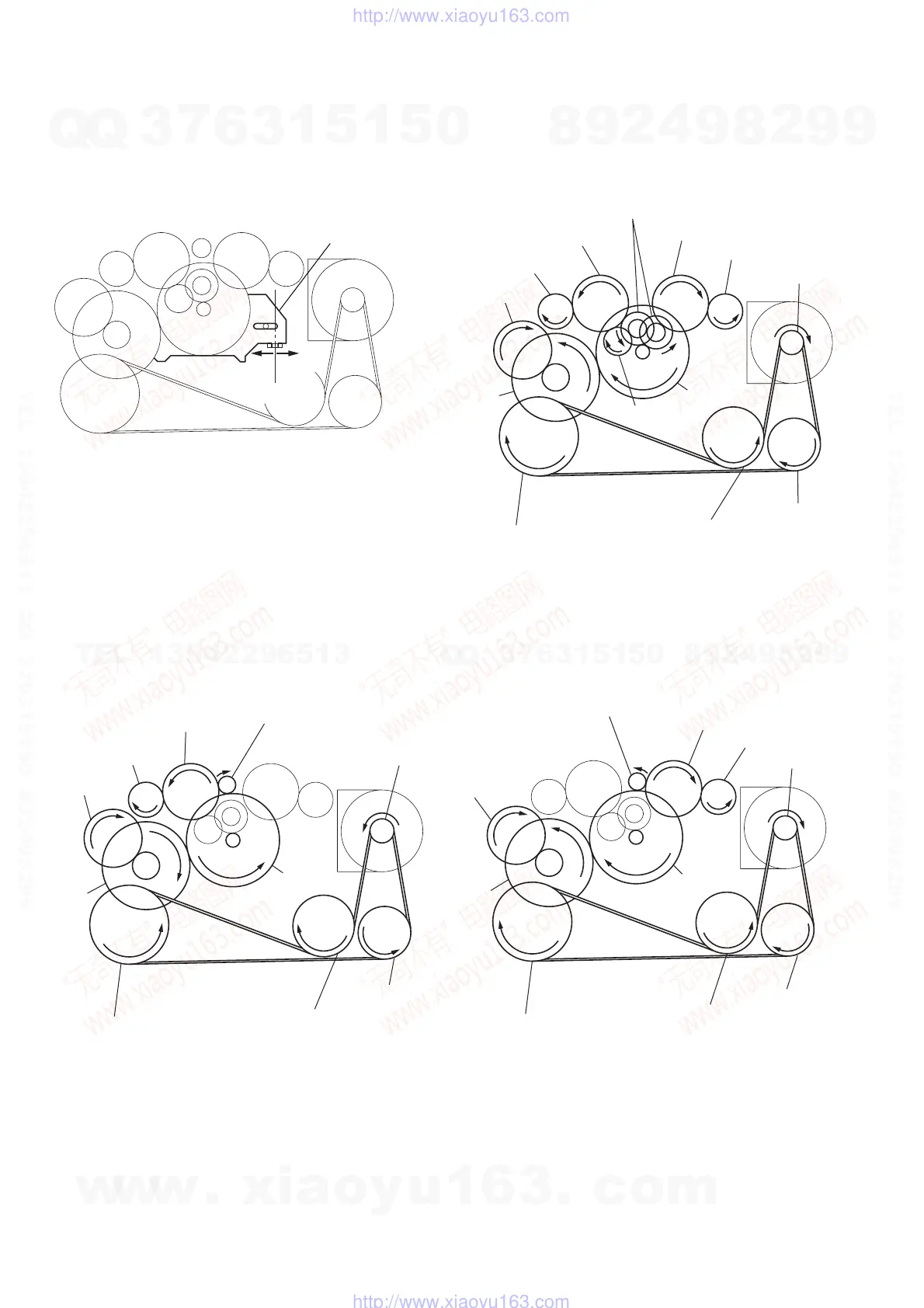

[ Slider (NR) ] [ Tape drive mechanism ]
Tape drive mechanism in PLAY mode
Tape drive mechanism in FF mode
Tape drive mechanism in REW mode
Slider (NR)
Center
F side
R side
Insert Flywheel (N)
Pulley (Reverse)
Clutch Assy(F)
Motor Pulley
Gear (REEL)(S side)
Gear
(REEL)(T side)
Gear (NR)
(FWD : Left side
REV : Right side)
Idler Gear(B)
Idler Gear (A)(S side)
Idler Gear
(A)(T side)
Insert Flywheel (R)
Cam Gear
Gear (Y)
Insert Flywheel (N)
Pulley (Reverse)
Clutch Assy(F)
Motor Pulle
Gear
(REEL)(T side)
Idler Gear
(A)(T side)
Insert Flywheel (R)
Cam Gear
Gear (Y)
Gear (FR)
(FF : Left side)
Insert Flywheel (N)
Pulley (Reverse)
Clutch Assy(F)
Motor Pulley
Gear
(REEL)(S side)
Idler Gear
(A)(S side)
Insert Flywheel (R)
Cam Gear
Gear (Y)
Gear (FR)
(REW : Right side)
