23
XP-EV500/EV500C/EV500N/EV501R
SECTION 6
EXPLODED VIEWS
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
•Abbreviation
AUS: Australian model
CND : Canadian model
E18 : 100 – 240 V AC area in E model
E33 : 100 – 240 V AC area in E model
HK : Hong Kong model
MX : Mexican model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

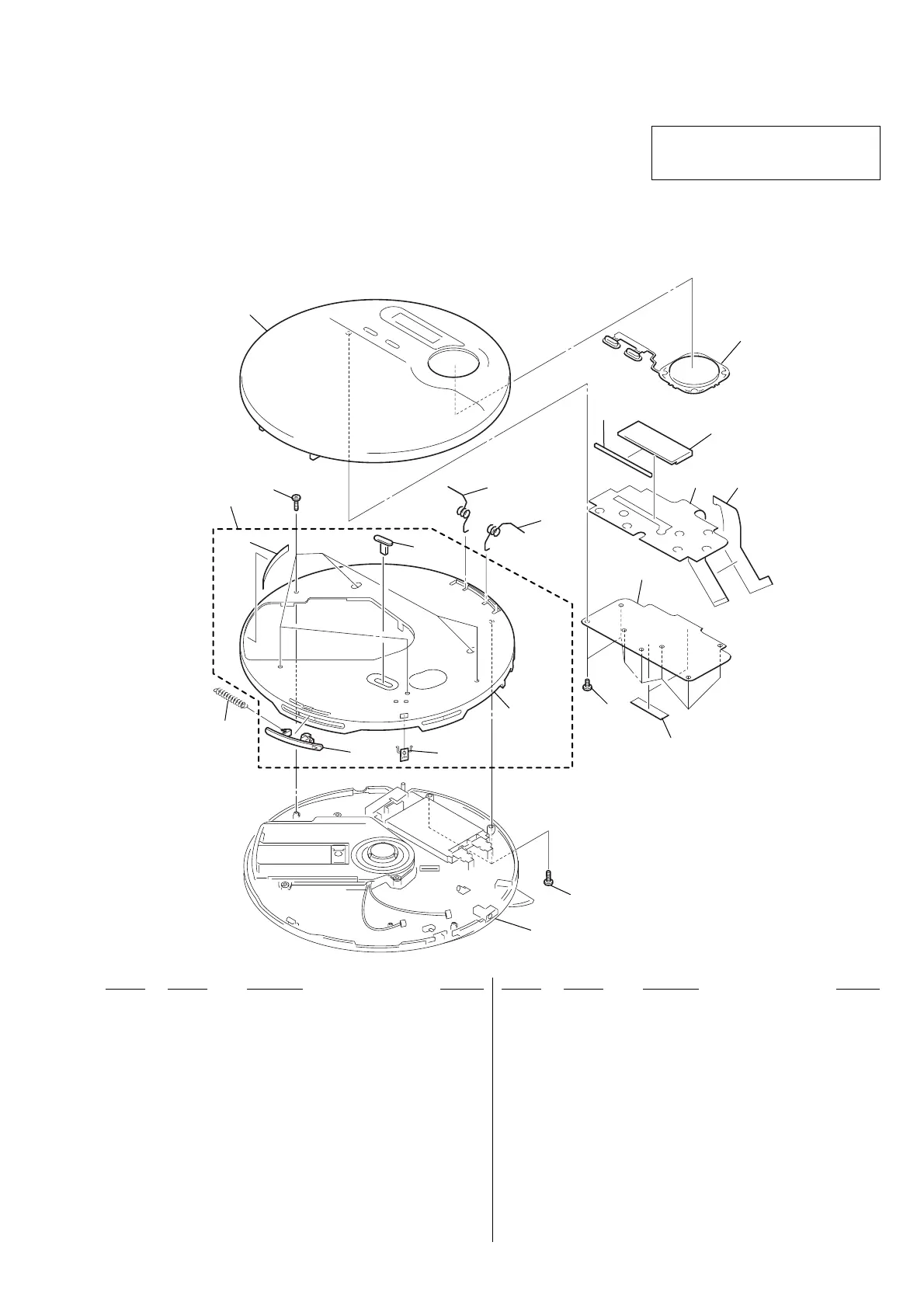

6-1. Cabinet Upper Section
1 3-249-061-01 DETECTOR, LEVER
2 3-249-062-01 KNOB, OPEN
3 3-249-069-01 SPRING, TENSION
4 X-3382-960-1 CABINET (FRONT) SUB ASSY (EV500)
4 X-3382-968-1 CABINET (FRONT) SUB ASSY
(EV500C/EV500N:CND, E, AEP)
4 X-3383-448-1 CABINET (FRONT) SUB ASSY (EV501R)
5 3-245-862-31 SCREW (B2), TAPPING
6 A-3608-206-A LID SUB ASSY, UPPER (EV501R)
6 X-3382-954-1 LID SUB ASSY, UPPER (EV500N)
6 X-3382-959-1 LID SUB ASSY, UPPER (EV500)
6 X-3383-161-1 LID SUB ASSY, UPPER (BLUE)(EV500N:AEP)
6 X-3383-162-1 LID SUB ASSY, UPPER (BLACK)(EV500N:AEP)
6 X-3383-163-1 LID SUB ASSY, UPPER (BLUE)(EV500:AEP)
6 X-3383-166-1 LID SUB ASSY, UPPER (BLACK)(EV500:AEP)
6 X-3383-168-1 LID SUB ASSY, UPPER (EV500C)
6 X-3383-875-1 LID SUB ASSY, UPPER (EV500N:CND)
7 3-249-067-01 SPRING, FULL OPEN.LEFT
8 3-249-068-01 SPRING, FULL OPEN.RIGHT
11 3-249-057-01 BUTTON, CONTROL
12 3-249-070-01 RUBBER
13 1-805-122-11 DISPLAY PANEL, LIQUID CRYSTAL
14 1-477-704-11 SWITCH UNIT
15 3-355-424-81 SCREW, TAPPING
16 3-249-060-01 KNOB, EASS
17 3-254-579-01 CUSHON, CABI
18 3-254-876-01 SHEET PLATE, ADHESIVE
19 3-255-548-01 SHEET, SHILD
6
5
7
3
15
16
13
5
4
11
14
12
2
1
8
cabinet lower section
not supplied
not supplied
19
18
17
Ver 1.2 2003.08
