Sony XP-EV500 - Cabinet Lower Section

24
XP-EV500/EV500C/EV500N/EV501R
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

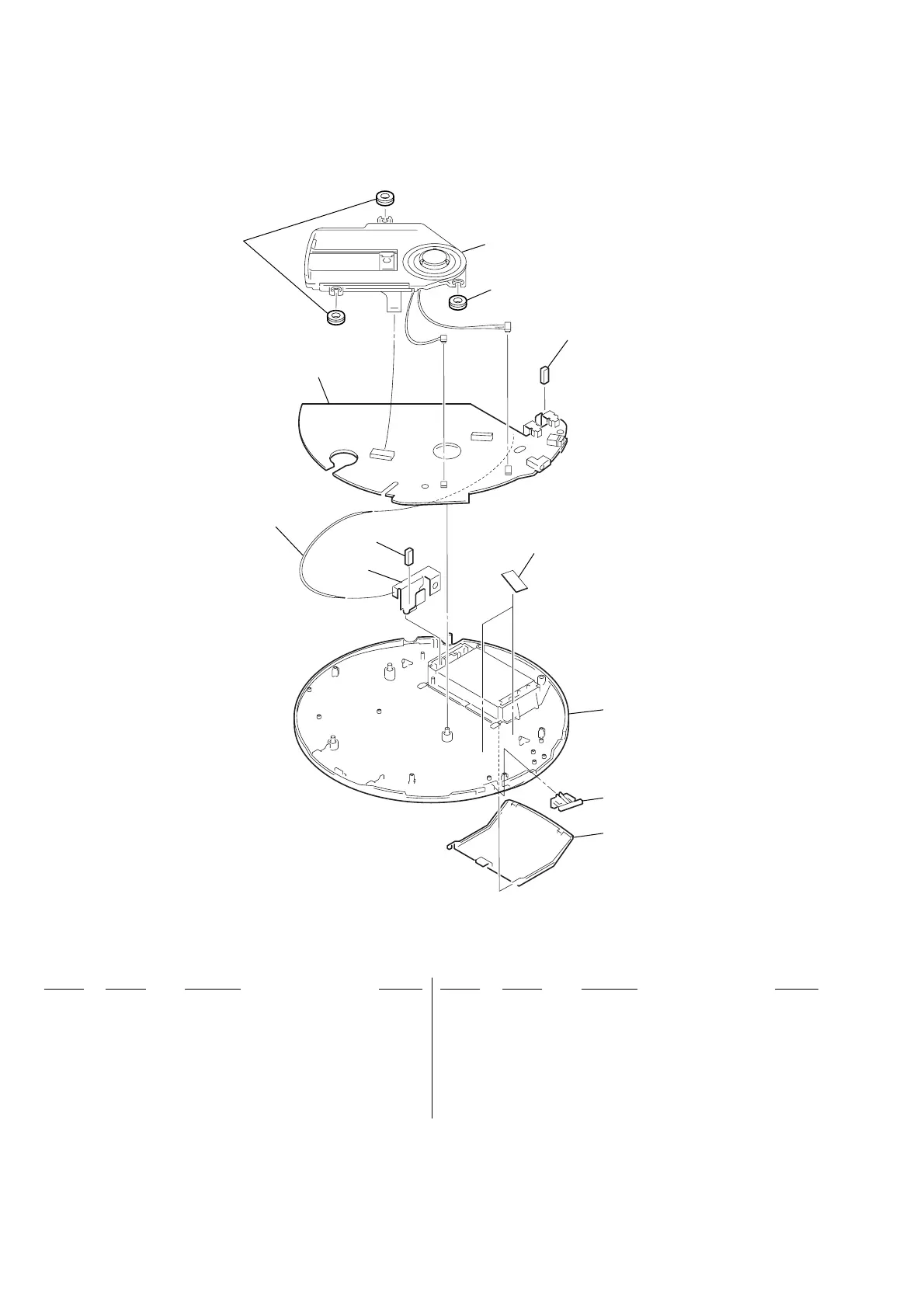

6-2. Cabinet Lower Section
52 3-245-331-02 INSULATOR
* 53 A-3347-855-A MAIN BOARD, COMPLETE (EV500N:AEP)
* 53 A-3347-900-A MAIN BOARD, COMPLETE
(EV500:E18, E33, HK, MX, AUS)
* 53 A-3663-994-A MAIN BOARD, COMPLETE
(EV500C/EV500N:CND, E)
* 53 A-3683-306-A MAIN BOARD, COMPLETE (EV500:AEP, UK)
* 53 A-3683-556-A MAIN BOARD, COMPLETE (EV501R)
57 3-249-066-01 TERMINAL BOARD (RELAY), BATTERY
58 3-249-054-01 CABINET, LOWER (EV500/EV500C/EV500N)
58 3-249-054-21 CABINET, LOWER (EV501R)
59 3-249-059-01 KNOB, HOLD
60 3-249-055-01 LID, BATTERY
61 3-254-581-01 CUSHON, COMTACT
53
52
52
61
58
60
59
57
61
not supplied
not supplied
CD mechanism deck section
