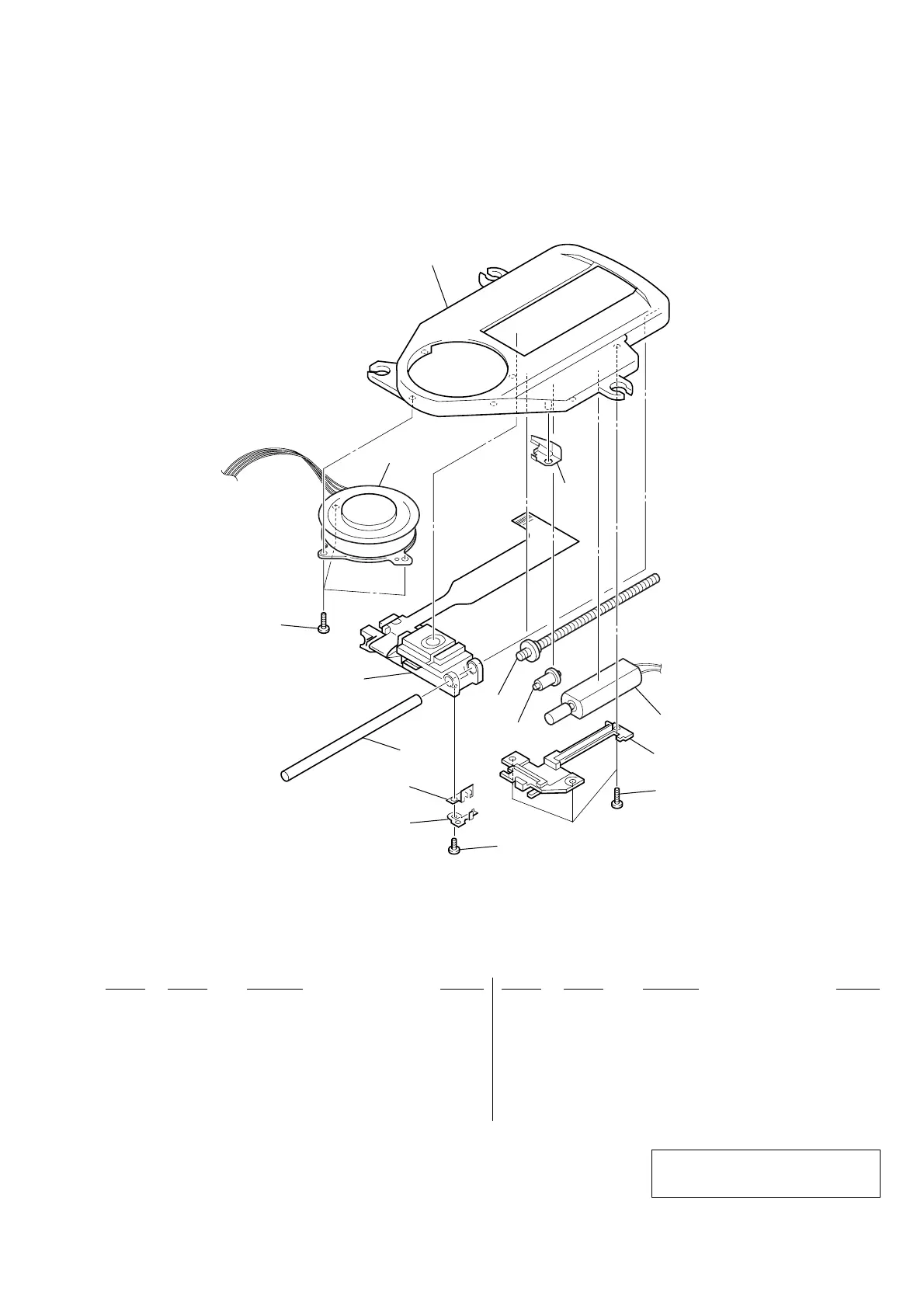

6-3. CD Mechanism Deck Section (CDM-3325ER)
101 3-318-203-61 SCREW (B1.7X4), TAPPING
0 102 X-3380-950-1 OPTICAL PICK-UP (DAX-25E)
103 3-221-473-01 COVER, GEAR
104 3-221-472-02 CHASSIS
105 3-221-474-01 SPRING, SLED
106 A-3180-967-A FEED ASSY, SCREW
107 3-221-268-01 GEAR (B)
108 3-221-475-01 SHAFT, STANDARD
109 3-222-298-01 RACK
110 3-222-299-01 SPRING, RACK RETAINER
111 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN
M901 A-3180-965-A MOTOR ASSY, TURN TABLE (SPINDLE)
M902 A-3180-966-A MOTOR ASSY, SLED (SLED)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
101
108
103
106
105
107
111
109
110
101
104
102
M90
2
M901
