Sony XP-EV500 - CD Mechanism Section (CDM-3325 ER)

7
XP-EV500/EV500N/EV501R
5 CD mechanism
(CDM-3325ER )
3 flexible board
(15P) (CN401)
4 three insulators
1 connector (2P)
(CN403)
2 connector (4P
)
(CN402)

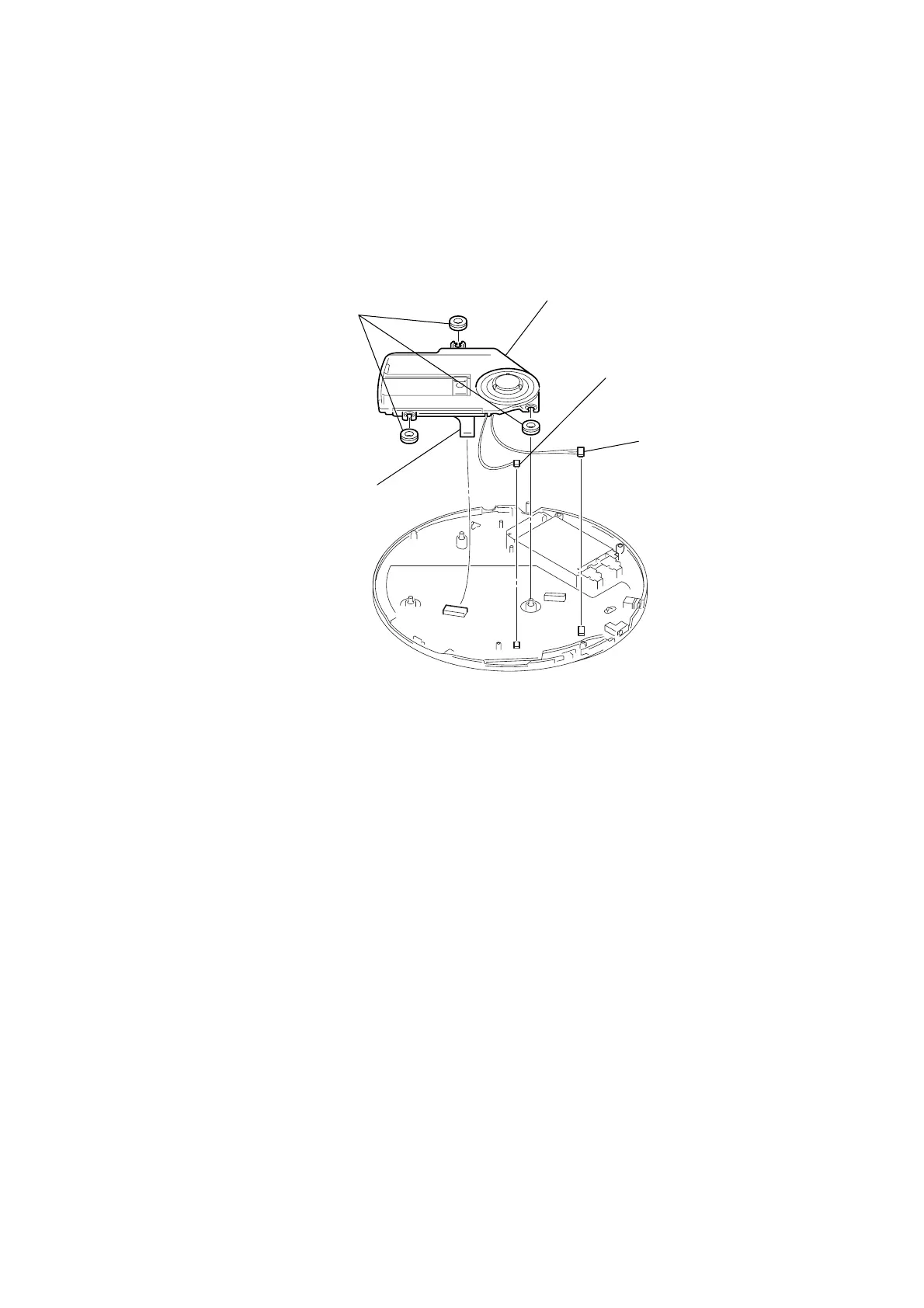

3-2. CD Mechanism Section (CDM-3325ER)
