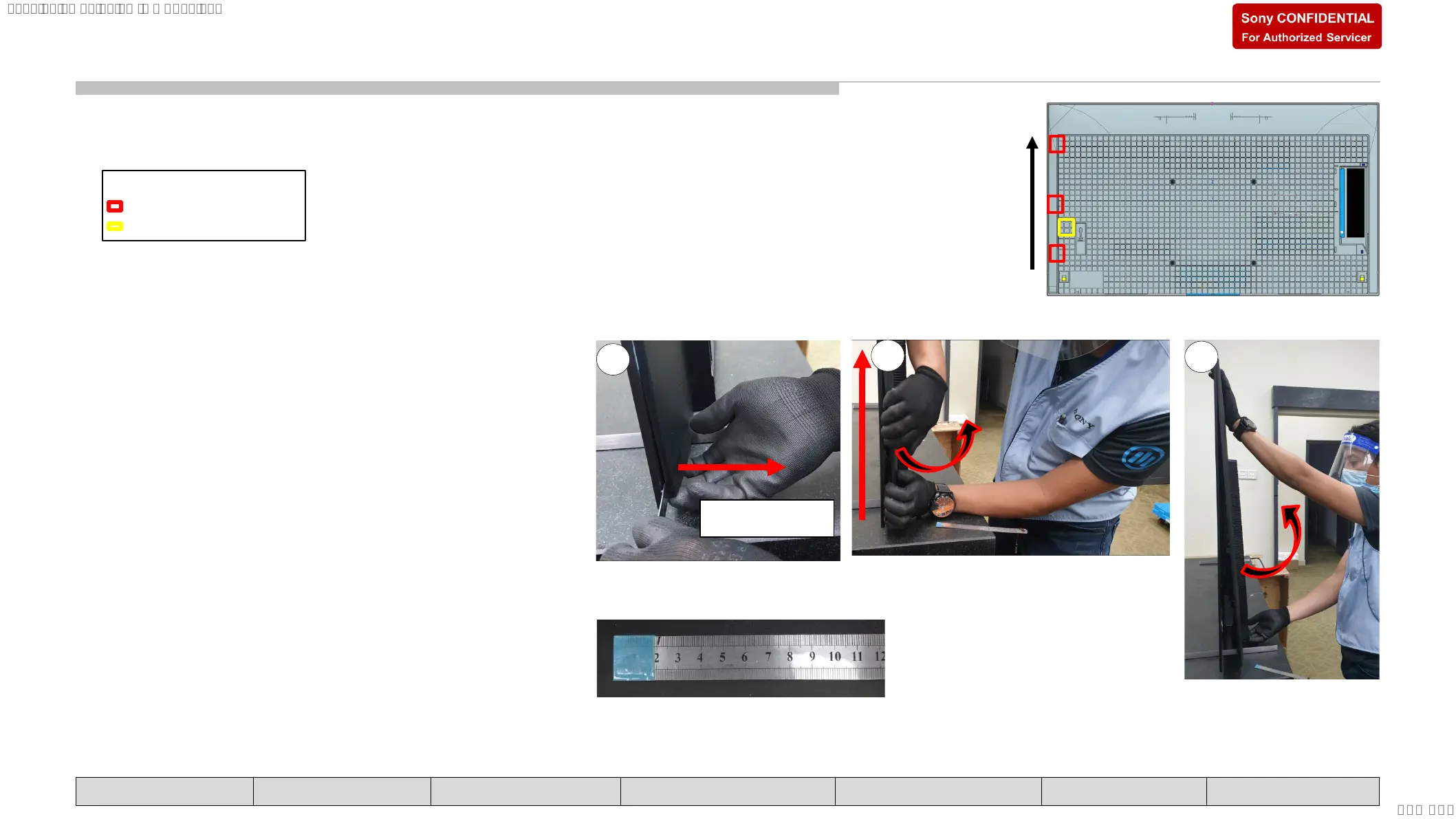

4. Unhook the left side hooks. (3 hooks)
10
REAR COVER
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX
Backward
1
2
3
Ruler or jig to release corner hook
*Wrap ruler with tape to prevent scratch
① When releasing hook, pull the rear cover corner and insert jig
② Flex the rear cover outwards to release outline hook
③ Pull rear cover below the AC tml to release the AC tml hook
Legend
=outline hook
=AC tml Hook (1 hook)
1-1. DISASSEMBLY AND REMOVAL CAUTION
