5. Unhook the right side hooks. (3 hooks)
11
REAR COVER
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX
Ruler or jig to release corner hook
*Wrap ruler with tape to prevent scratch

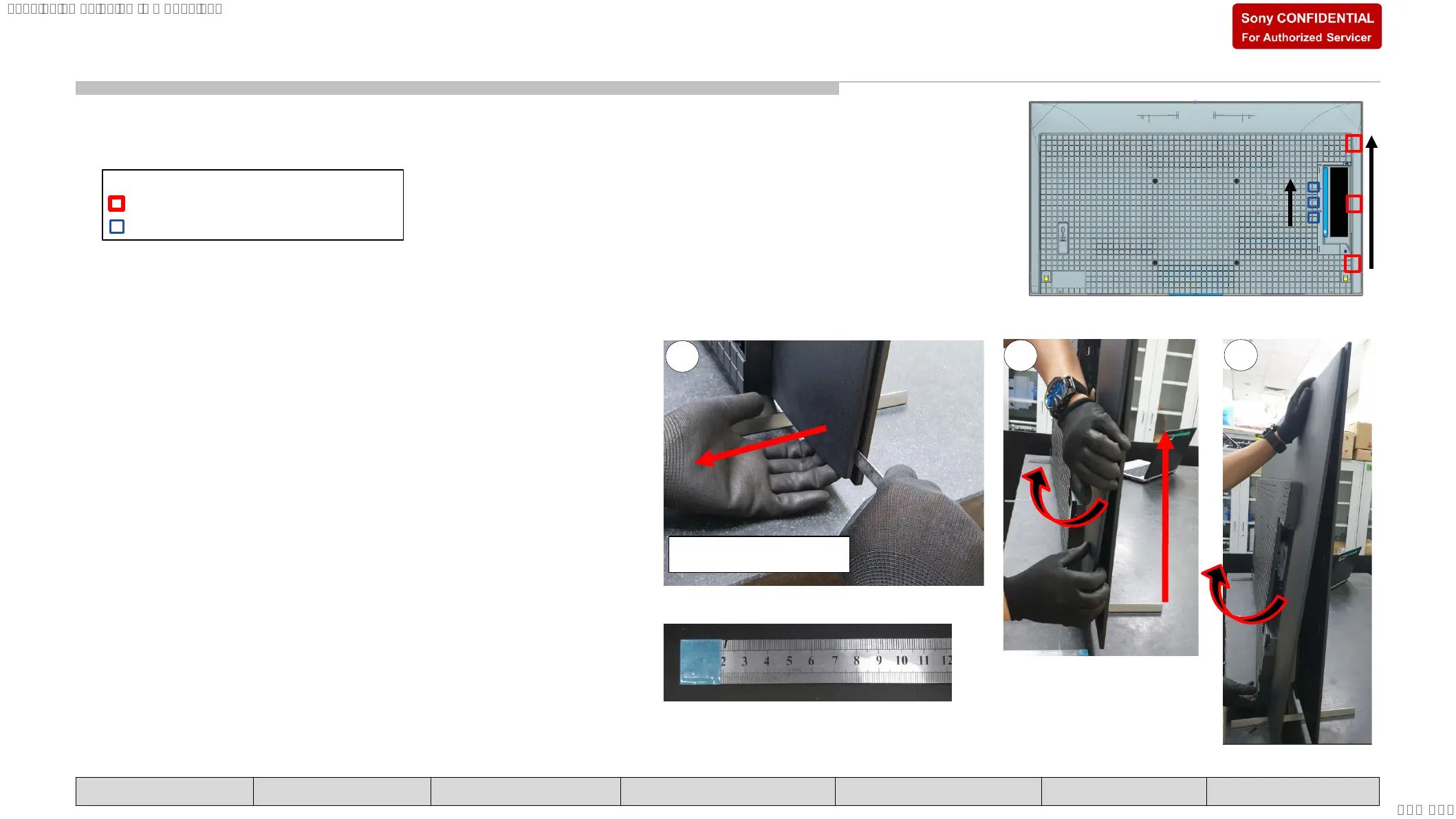

① When releasing hook, pull the rear cover and insert jig
② Flex the rear cover outwards to release outline hook
③ Pull rear cover below the side jack to release the side jack bottom hook.
Legend
=outline hook
=Side Jack Bottom Hook (3 hooks)
Backward
1
2
3
1-1. DISASSEMBLY AND REMOVAL CAUTION
SECTION 1: XR-55A8*K
