Sony XR-55A80K - Page 13

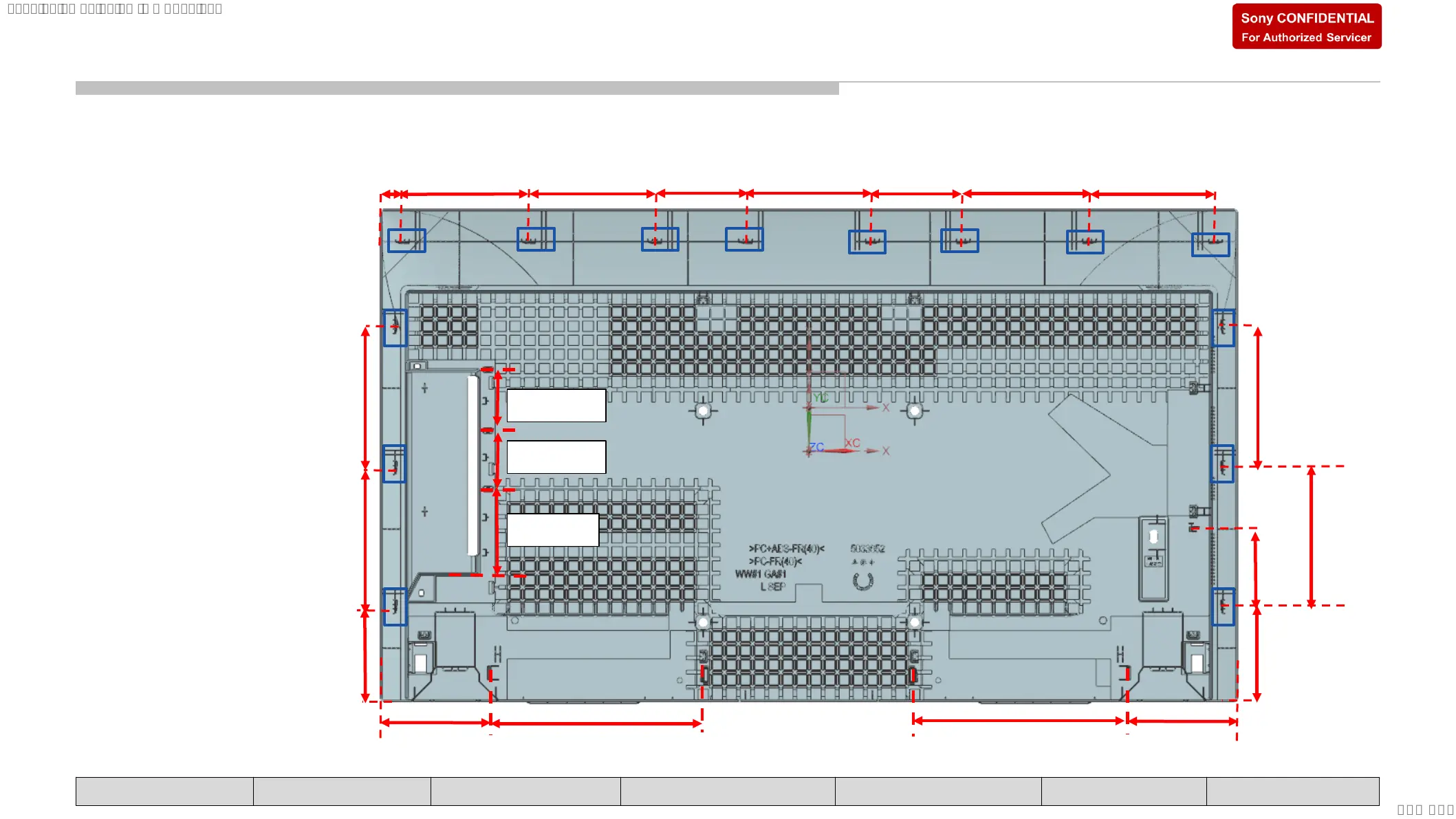

Hook positioning.
13
REAR COVER
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX
200mm
31.7mm
179mm
179mm
123mm
197mm
129mm
180mm
135mm
136mm
302mm
302mm
110mm
129mm
179mm
179mm
136mm
200mm
197mm
135mm
82.5mm
86.5mm
1-1. DISASSEMBLY AND REMOVAL CAUTION
