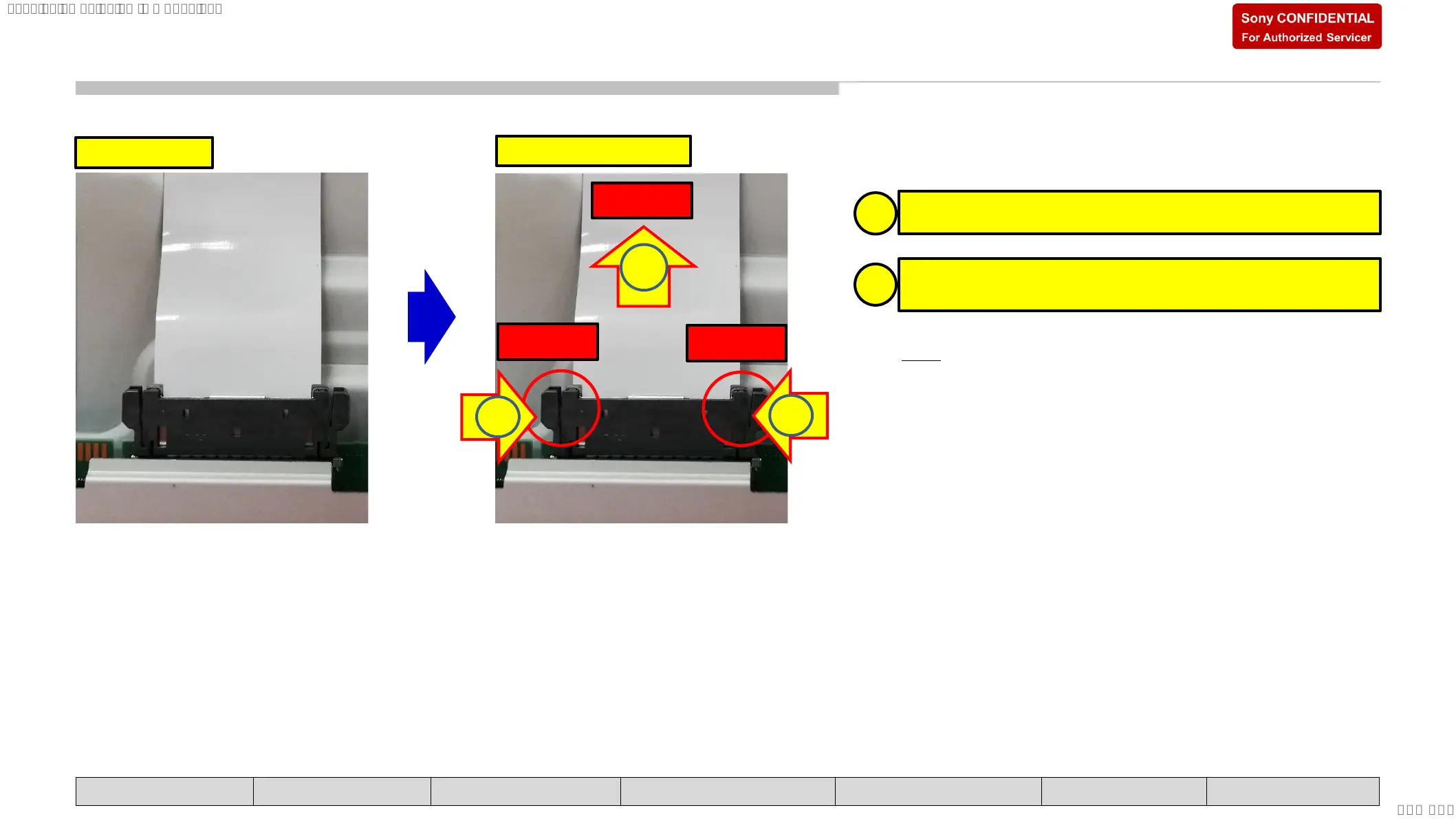

Withdrawal of 41P & 51P FFC using non-ZIF from panel side (JAE Connector)
Initial condition
Step 1 & 2
2
PULL
1
1
PUSH
PUSH
Pull-out FFC in straight direction while pushing side-release
lock buttons at the same time.
Push the side-release lock buttons inward (highlighted in red).
2
Note: FFC as in image is only for reference purpose. Actual
FFC outlook may vary by each vendor.
1
