Withdrawal of 20P/25P FFC (IRISO Connector)
Main Board side
Wi-Fi Module side
20P
25P
Initial condition
PUSH
PULL
2
1
1
PUSH
2
PULL
Step 1 & 2
Ensure fingers does NOT touch
parts on board and tuner connector
when pushing the side locks.
Main Board side
Wi-Fi
Module side
Caution

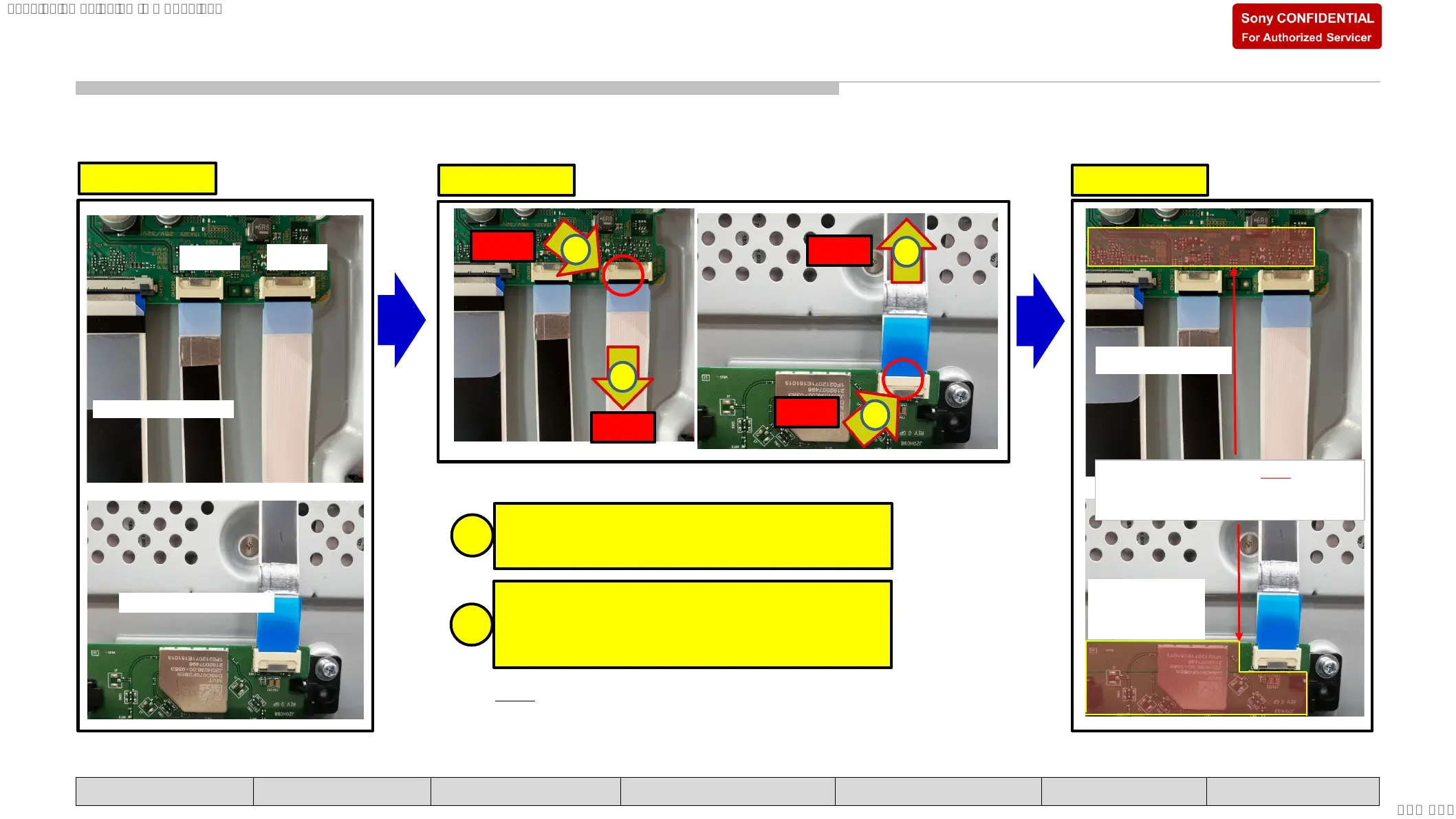

Push the side-release lock buttons inward (highlighted in red).
Pull-out FFC in straight direction while pushing side-release
lock buttons at the same time.
1
2
Note: FFC as in image is only for reference purpose.
Actual FFC outlook may vary by each vendor.
