Sony XR-65A90J Dismantling Information For Use

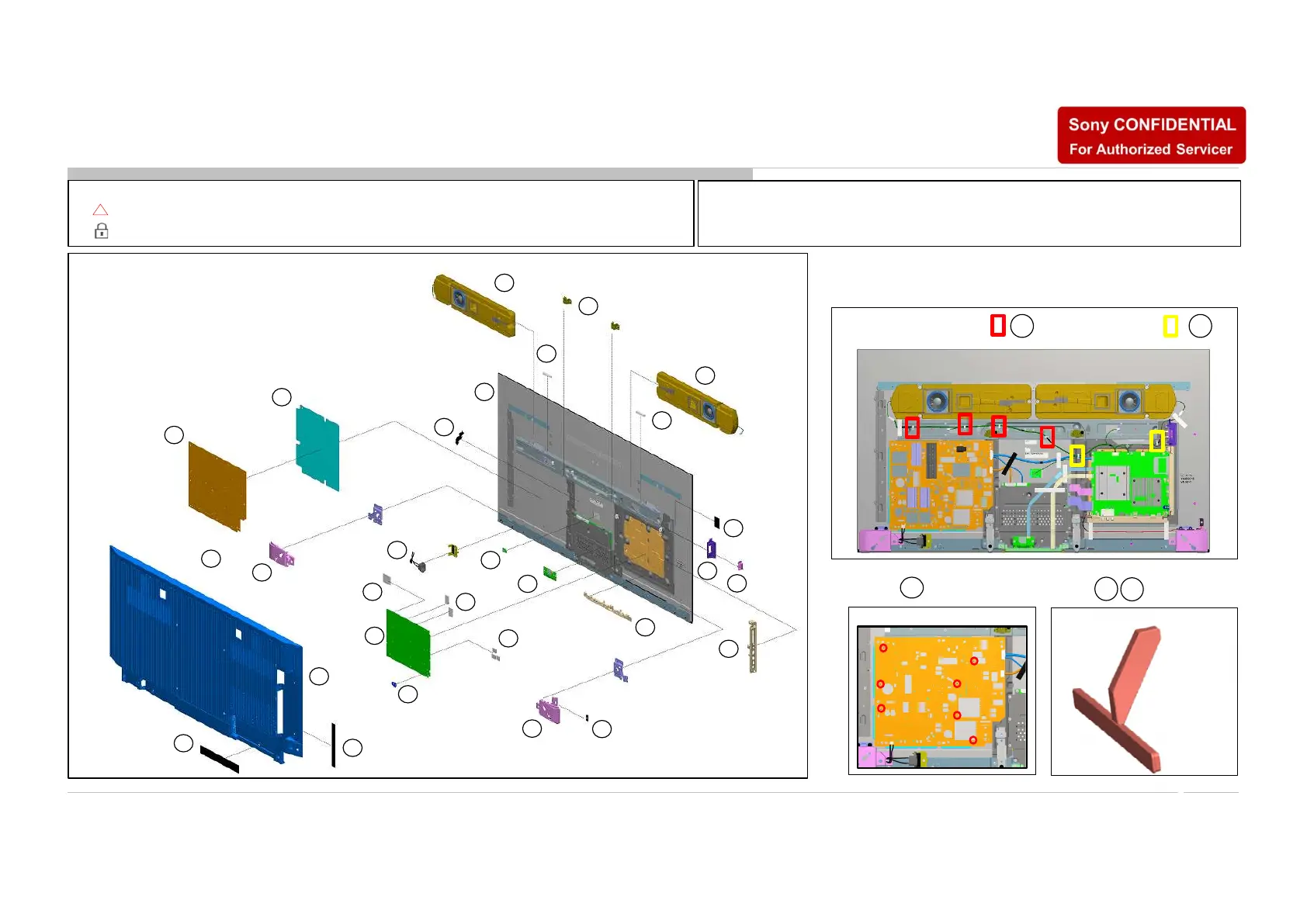

EXPLODED VIEW & PART LISTS
 (*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated
when ordering these components.
 Picture provided in this section might have slight difference from the actual sets.
 The reference number beside the part indicates the disassembly sequence.
 Remove screws before disassembly. Unplug connectors before disassembly
Stand
30
• Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and / or replaced
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
!
• and shaded parts are critical for safety. Replace only with part number specified
XR-55A90J
Spacer
23
Slide, Clamp (mini) Slide, Clamp
2
3
4
5
6
7
8
9
10
13
1
14
16
15
15
17
18
19
20
19
22
24
27
29
31
11
12
21
2526
28
28
6
