Sony XR-C7220R Service Manual

– 22 –

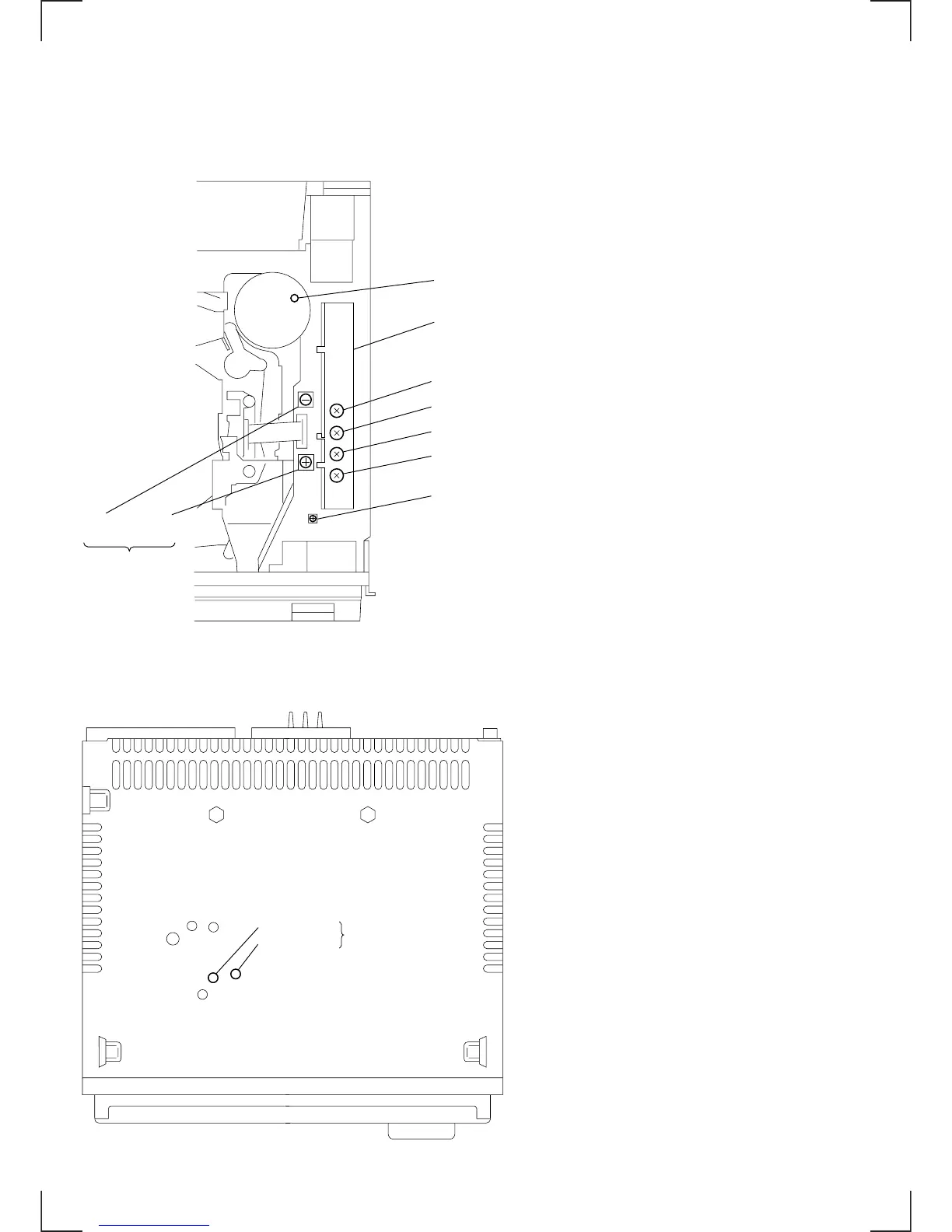

Adjustment Location:
– SET UPPER VIEW –
– SET BOTTOM VIEW –
TUX10
Tape Speed Adjustment
RV1 MW Auto Scan/Stop Level Adjustment
RV3 FM Stereo Separation Adjustment (Wide)
RV4 FM Stereo Separation Adjustment (Narrow)
RV2 FM Auto Scan/Stop Level Adjustment
RV240
(R-CH)
RV230
(L-CH)
Dolby Level
Adjustment
RV10 FM RDS S-Meter Adjustment
TP (DOLBY-L)
TP (DOLBY-R)
Dolby Level
Adjustment
