Registered Quality System to ISO 9001:2008
27/60
Form 912
sorinc.com
913-888-2630

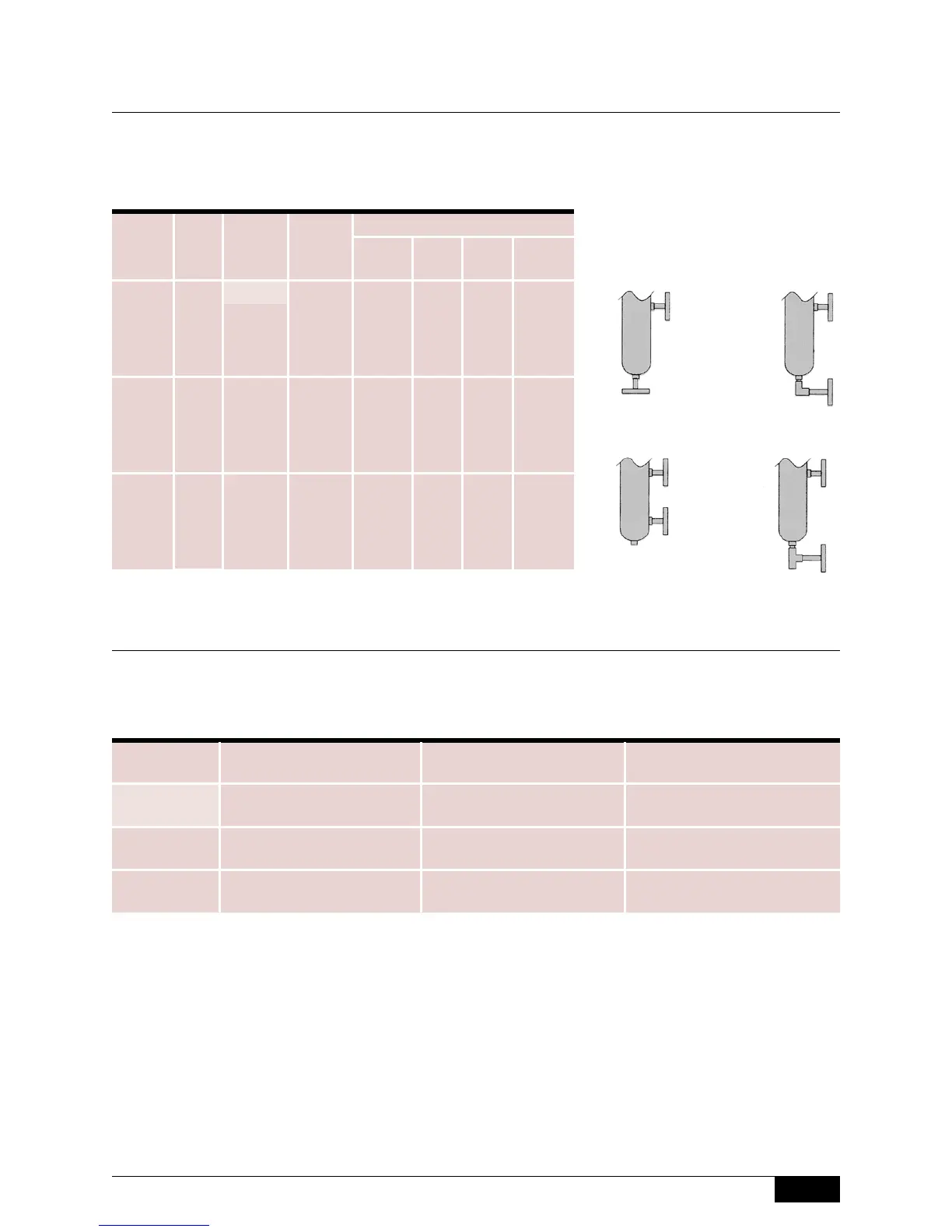

Step 3: Process Connection
741 A-A1C-B-A1-N4-CRTT
Select a process connection size, style and designator from the chart below. Consult the factory for
variations. Flanged process connections may reduce the maximum working pressure of the unit.
*Not available on Models 741, 742, and 743.
Select the internal trim material from the chart below. Consult the factory for pressure ratings on
Monel trim.
741 A-A1C-B-A1-N4-CRTT
Step 4: Trim Material
VH
(Vertical/Horizontal)
VV
(Vertical/Vertical)
VVD
(Vertical/Vertical/
Drain)
VVT
(Vertical/Vertical/
Tee Drain)
741-743 and
802 Series
Designator Displacer Material Attraction Sleeve
Available with
Chamber Material:
B 316/316L Stainless Steel 400 Stainless Steel A106 Carbon Steel (A) only
C 316/316L Stainless Steel 316/316L Stainless Steel
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
M Monel 400 Monel 400
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
Size Style
NPT
Thread
Socket
Weld
Flange
150#
RF
300#
RF
600#
RF
1500#
RTJ
1”
VH A1A A1B A1C A1D A1E A1T
VV - - B1C B1D B1E B1T
VVD C1A C1B C1C C1D C1E C1T
VVT - - D1C D1D D1E D1T
1-1/2”
VH A5A A5B A5C A5D A5E A5T
VV - - B5C B5D B5E B5T
VVD C5A C5B C5C C5D C5E C5T
VVT - - D5C D5D D5E D5T
2”
VH A2A* A2B* A2C A2D A2E A2T
VV - - B2C B2D B2E B2T
VVD C2A* C2B* C2C C2D C2E C2T
VVT - - D2C D2D D2E D2T
