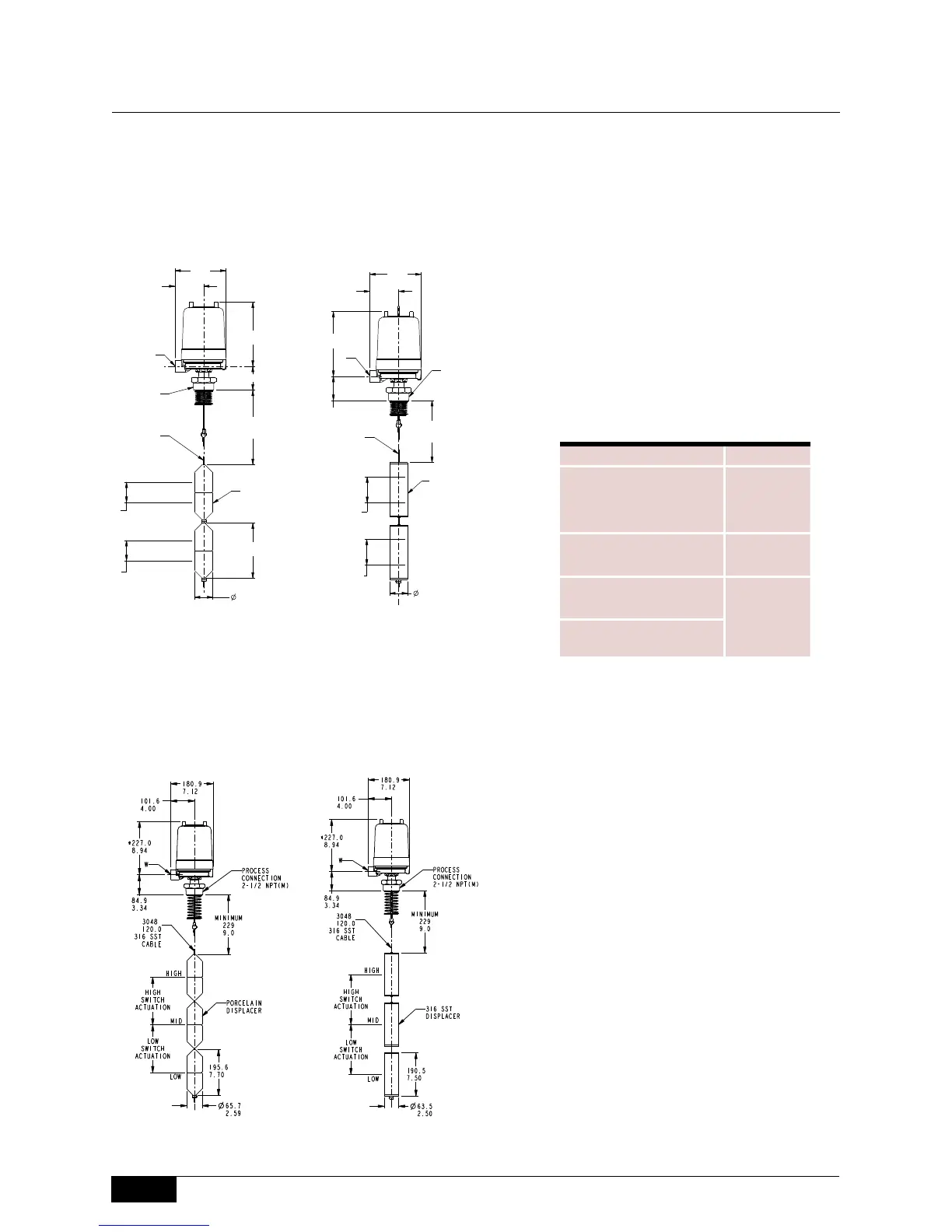

Unit Dimensions
Model 730/732
2-1/2” NPT/Flanged
Narrow Differential
Model 735/737
2-1/2” NPT/Flanged
Wide Differential
Model 734/736
2-1/2” NPT/Flanged
Wide Differential
Model 731/733
2-1/2” NPT/Flanged
Narrow Differential
Dimensions in this catalog are for reference only. They may be changed without notice. Contact the
factory for certified drawings for a particular model number. Dimensions are expressed as millimeters
over inches. (Linear = mm/in.)
730 Series
Housing** W
General Purpose
Explosion Proof
Explosion Proof
Explosion Proof
N4
N7
B1
B2
1” NPT
Pneumatic P1 (3) 1/4” NPT
ATEX
Flame Proof/IS
T6
S3 w/CL
M20 x 1.5***
TestSafe
Flame Proof
S3
S8
Drawing 0390677 Drawing 0390678
ISO-9001
14685 W 105TH ST LENEXA, KS 66215 USA
913-888-2630
SORINC.COM
180.9
7.12
MINIMUM
229
9.0
*227.0
8.94
101.6
4.00
180.9
7.12
62.7
2.47
63.5
2.50
HIGH
SWITCH
ACTUATION
LOW
SWITCH
ACTUATION
MINIMUM
229
9.0
*227.0
8.94
101.6
4.00
63.5
2.50
HIGH
SWITCH
ACTUATION
LOW
SWITCH
ACTUATION
84.9
3.34
Model Name: 0390673.ASSEM/1/7+
PRODUCT CERTIFICATION DRAWING
ALL DIMENSIONS ARE ±1/16 IN
UNLESS OTHERWISE SPECIFIED
MM
LINEAR =
IN
DRAWN BY
JFIXSEN
CHECKED BY
JKENT
ENGINEER APPROVAL
SBOAL
DATE
2/4/03
THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SOR.
NO USE WHATSOEVER OF THE INFORMATION CONTAINED
HEREON, NOR REPRODUCTION IN WHOLE OR PART MAY BE
MADE WITHOUT THE EXPRESS WRITTEN PERMISSION OF SOR.
TITLE
DIM DWG 731, 733
NARROW DIFFERENTIAL
EO NUMBER: 4441
SCALE: 0.20
DO NOT SCALE PRINT
DRAWING NUMBER REV
0390678 1
SHEET 1 OF 1
DWG SIZE
B
MODEL # SALES ORDER # LINE ITEM # PURCHASE ORDER #
146.1
* MINIMUM OVERHEAD CLEARANCE REQUIRED
5.75
TO REMOVE HOUSING COVER.
ELECTRICAL CONN. "W" : __________
PROCESS
CONNECTION
2-1/2 NPT(M)
W
MODEL 731
SCALE 0.2
316 SST
DISPLACER
3048
120.0
316 SST
CABLE
HIGH
LOW
HIGH
LOW
PROCESS
CONNECTION
FLANGED
W
MODEL 733
SCALE 0.2
316 SST
DISPLACER
3048
120.0
316 SST
CABLE
HIGH
LOW
HIGH
LOW
Reset Form
Drawing 0390679 Drawing 0390680
* Minimum 5-3/4’’ (146 mm) overhead clearance
required to remove housing cover.
** See Switch Housing section (page 48).
*** M20 adapters are brass. Contact the factory for
alternate materials.
ISO-9001
14685 W 105TH ST LENEXA, KS 66215 USA
913-888-2630
SORINC.COM
D
C
*227.0
8.94
101.6
4.00
180.9
7.12
MINIMUM
229
9.0
65.7
2.59
HIGH
SWITCH
ACTUATION
LOW
SWITCH
ACTUATION
195.6
7.70
*227.0
8.94
101.6
4.00
180.9
7.12
MINIMUM
229
9.0
65.7
2.59
HIGH
SWITCH
ACTUATION
LOW
SWITCH
ACTUATION
195.6
7.70
Model Name: 0390672.ASSEM/1/6+
PRODUCT CERTIFICATION DRAWING
ALL DIMENSIONS ARE ±1/16 IN
UNLESS OTHERWISE SPECIFIED
MM
LINEAR =
IN
DRAWN BY
K MITCHELL
CHECKED BY
M SMITH
ENGINEER APPROVAL
J FIFE
DATE
21 JUN 2011
THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SOR.
NO USE WHATSOEVER OF THE INFORMATION CONTAINED
HEREON, NOR REPRODUCTION IN WHOLE OR PART MAY BE
MADE WITHOUT THE EXPRESS WRITTEN PERMISSION OF SOR.
TITLE
DIMENSION DRAWING 730, 732
NARROW DIFFERENTIAL
EO NUMBER: 5090
SCALE: 0.20
DO NOT SCALE PRINT
DRAWING NUMBER REV
0390677 3
SHEET 1 OF 1
DWG SIZE
B
MODEL # SALES ORDER # LINE ITEM # PURCHASE ORDER #
SALES PAGE
NPT A
FLANGE B
DIMENSION C SEE CHART
DIMENSION D SEE CHART
ELECTRICAL CONNECTION W
DIMENSION C
SIZE
FLANGE
150 # 300 # 600 #
3"
62.7
2.47
67.6
2.66
70.6
2.78
4"
62.7
2.47
70.6
2.78
77.0
3.03
6"
64.3
2.53
75.4
2.97
86.6
3.41
DIMENSION D
2-1/2 NPTM
84.9
3.34
3 NPTM
87.9
3.46
146.1
* MINIMUM OVERHEAD CLEARANCE
5.75
REQUIRED TO REMOVE HOUSING COVER
W
PROCESS
CONNECTION
NPT A
MODEL 730
SCALE 0.2
3048
120.0
316 SST
CABLE
PORCELAIN
DISPLACER
HIGH
LOW
HIGH
LOW
W
PROCESS
CONNECTION
FLANGE B
MODEL 732
SCALE 0.2
3048
120.0
316 SST
CABLE
PORCELAIN
DISPLACER
HIGH
LOW
HIGH
LOW
1
Reset Form
