2.2: PARTS OF THE CONSOLE
GETTING STARTED > PARTS OF THE CONSOLE
2.2: Parts Of The Console

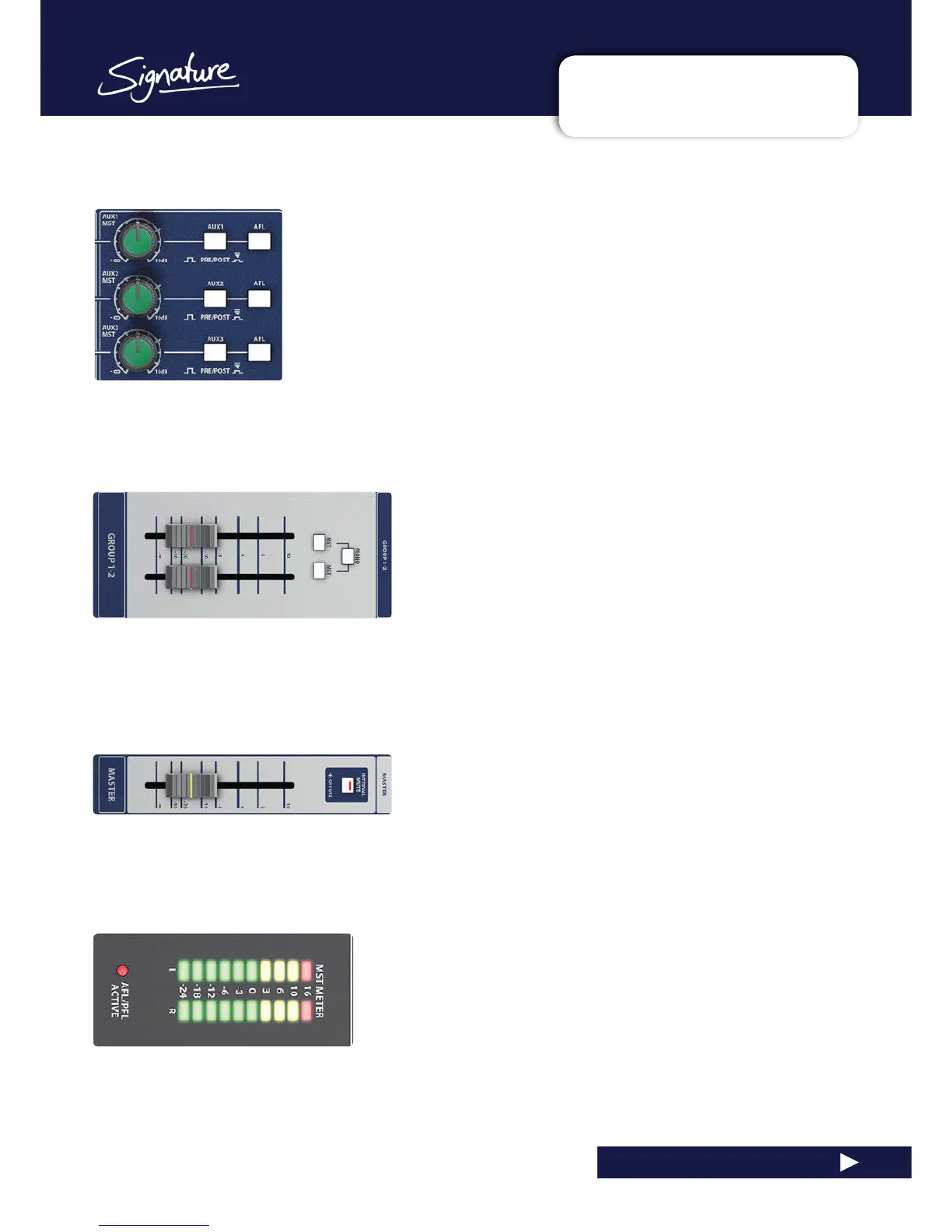

Aux Output Masters
Aux (Auxiliary) Master output channels control the output level of the auxiliary bus and global pre-fade/
post-fader switching. AFL switching allows aux master solos. Refer to Sections 4.5 and 5.5 for more detail.
Group Output Masters
The Group Output Master channels control routing and output level for the Group busses. For Signature
12 and 12MTK Group 1 and 2 outputs can be summed to mono and/or routed to the Master Stereo Output.
Refer to Sections 4.6 and 5.6 for more detail.
Master Stereo Output
Controls the output level of the Master Stereo bus. Includes the Interval Mute function (Mute all channels
except the Stereo Playback Channel). Refer to Sections 4.7 and 5.7 for more detail.
Metering
The meters on the Signature 10, 12, and 12MTK show Master Left/Right output level in normal operation.
Refer to section 6.0 for more detail. The AFL/PFL ACTIVE indicator is below the main meters and lights
when any AFl or PFL selection is engaged. See section 6.0 for more detail.

SoundCraft Signature 12 Specifications

General

Number of Channels	12
USB Interface	2-in/2-out
Faders	60mm
Phantom Power	Yes
Type	Analog
Headphone Output	1 x 1/4"
EQ Bands	3-band
Effects	Yes, with Lexicon effects
Inputs - Line	8
Outputs - Main	2 x XLR
Main Outputs	2
Monitor Outputs	1/4"
Weight	14.3 lbs
