10, 12, 12MTK User Manual
2.2: PARTS OF THE CONSOLE
GETTING STARTED > PARTS OF THE CONSOLE

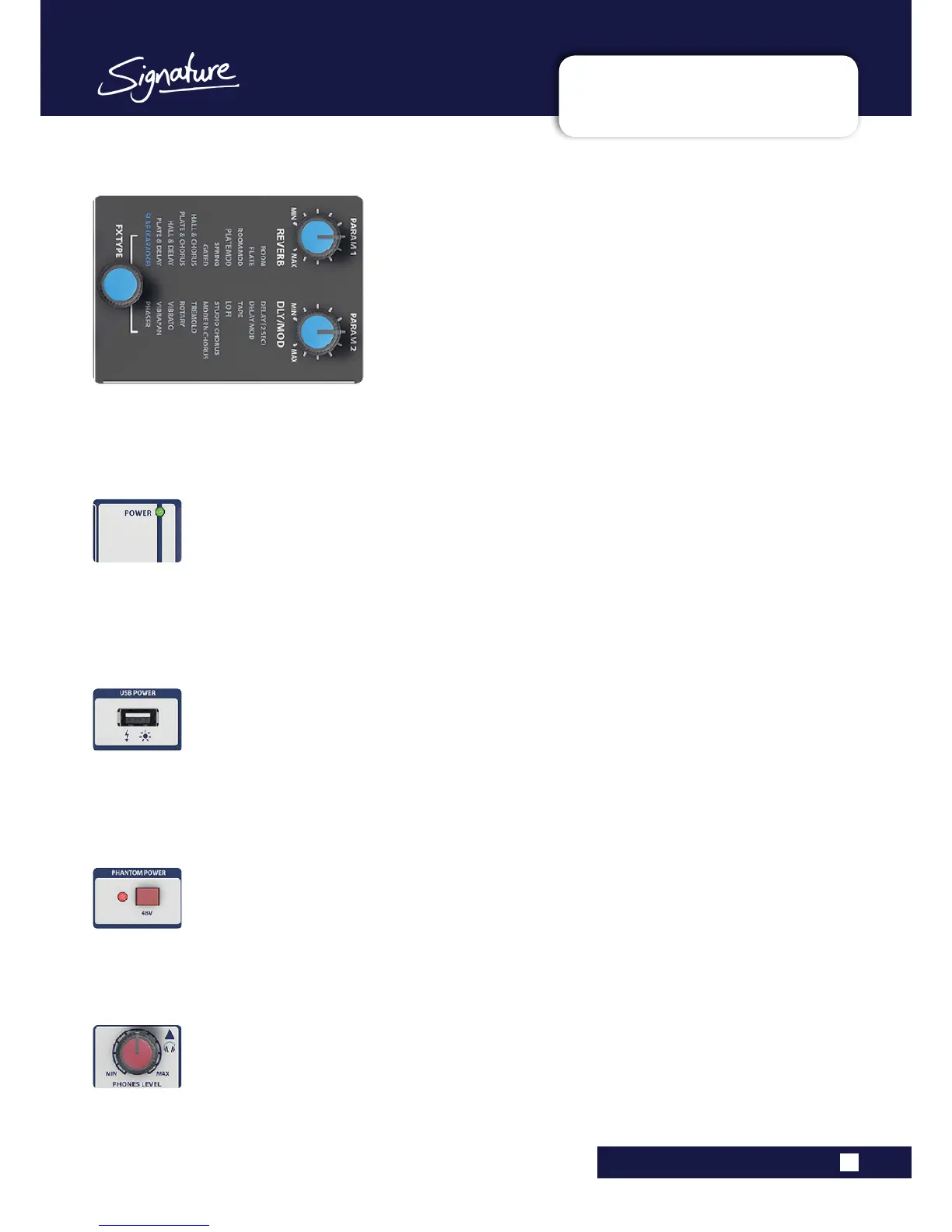

2.2: Parts Of The Console
Lexicon FX Control
Signature 10, 12, and 12MTK consoles have an internal Lexicon FX processor and send/return bus for add-
ing FX such as reverb, delay, Chorus, Rotary, LoFi, Tape emulation, and more. Each Effect has two adjust-
able parameters. Refer to section 8.0 for more detail.
Power Indicator
Lights Green when console is powered. Use the power switch on the rear underside of the console to
poweritonandoff.Itisgoodpractisetoturntheoutputleveldownrstincasethisaffectsanyconnected
speakers.
USB Power Socket
For attaching powered/chargeable USB peripherals such as a USB-powered LED lamp, or a mobile phone.
Not for data. There is a 500mA current limit on this connection.
Global Phantom Power Switch
Applies 48V phantom power to the console microphone inputs so you can use Condenser/Capacitor
microphones, active DI boxes, and so on. See section 5.1 for more detail.
Headphones Level Control
Level control for the monitoring output - either the Master Stereo Output, or the Solo Bus. See section 6.0
for more detail.
To Next Page
