After connecting, when you start up the reverse gear, the unit
will
receive the picture from car
rear view camera.
Note:
Only
use
groundless loudspeakers.
Use
only loudspeakers
of
minimal 40Watt,
using fewer watts may
result
in
damaging
your loudspeakers
at higher volumes.
Use
4-8
n
(Ohm impedance)
loudspeakers only;
using higher or
lesser
impedance may
damage the unit.
Do not use
3-cable loudspeakers
and do not connect the
loudspeakers
minus to the car
body (GND). The unit
is
using a BTL circuit and each
loudspeaker
must
be
connected
with
insulated cables according the diagram.
Loudspeaker cables
and/or
optional external
power
amplifiers must always
be
about
30cm
away from the antenna and/or antenna extension parts.
Connect the speakers according the
following
diagram, incorrect connections will
damage the
unit or your loudspeakers

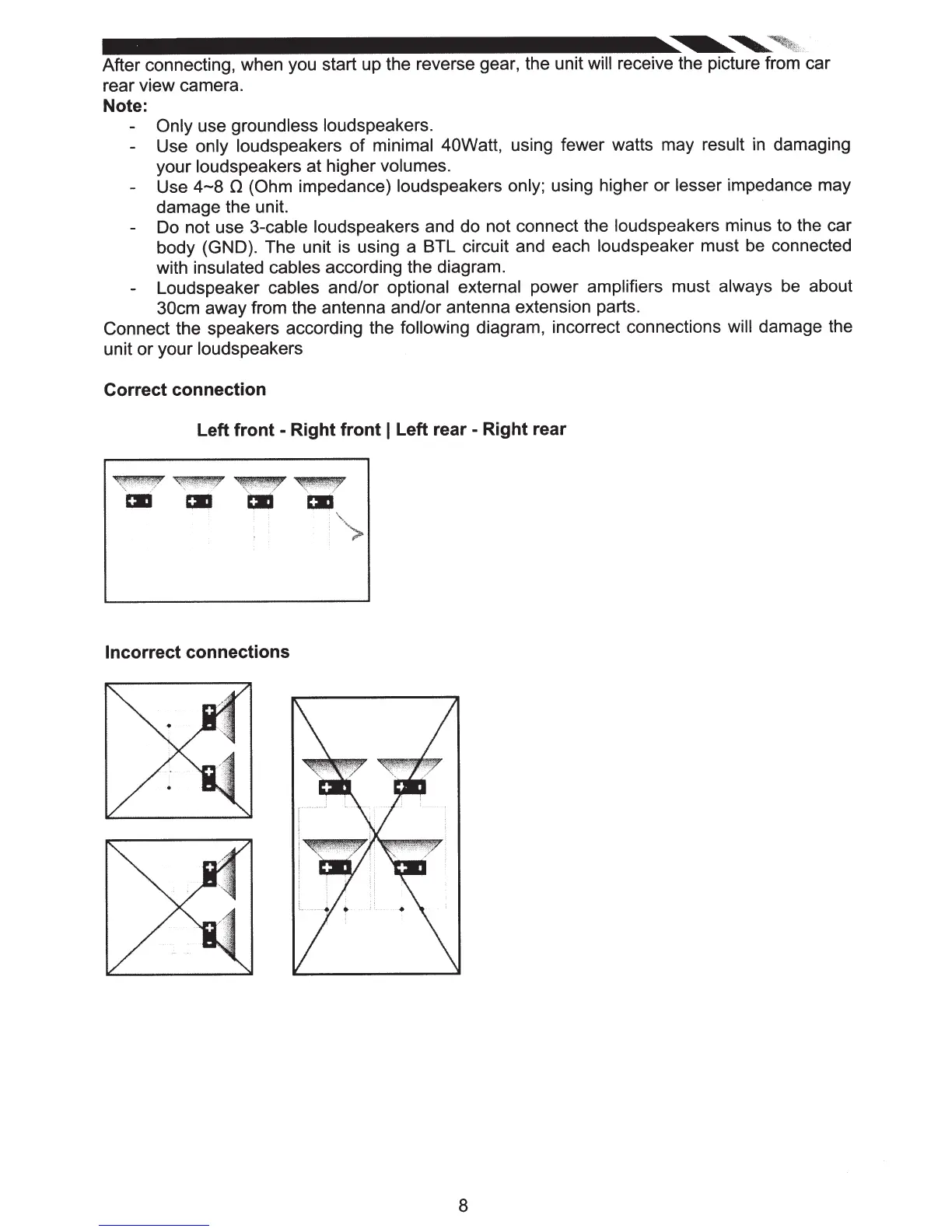

Correct connection
Left
front-
Right front
1
Left
rear-
Right rear
*
z1
xy;>
~
aa
't:
it
M#tJv\+1
'
01
Incorrect
connections
8
