TOOLS / PARTS FOR INSTALLATION
NOTE: TOOLS ARE NOT SUPPLIED
Small flat blade screwdriver Phillips screwdriver (#2 or medium sized),
Wire cutters Wire strippers, - #6 round head screws, and 1 - #8 sheet
metal screw (or nut, bolt,flat washer, star washer) [see detail] 2 - Ring
connectors (large enough to accommodate your method of
grounding) In-line fuse or circuit breaker - see fuse chart below Power
and ground wire - see Power Wire Calculator on page 7 Speaker wire -
12-16 gauge Grommets (sized to work with the power wire you plan to
use in your installation) Tube of silicone sealant

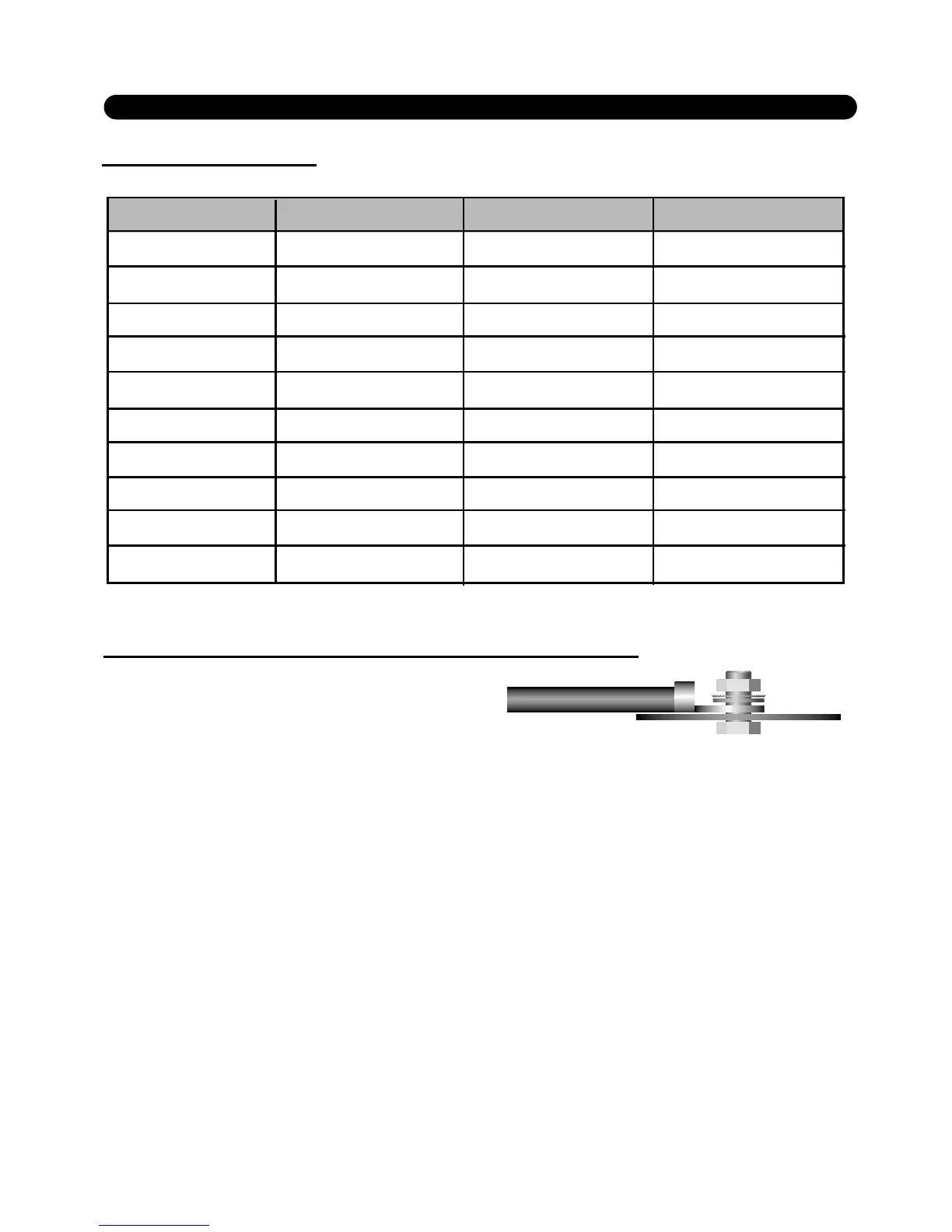

DIMENSIONS
6
MODEL
XTA180.2
XTA240.2
XTA360.2
XTA480.2
XTA600.2
XTA880.2
XTA360.4
XTA480.4
XTA720.4
XTA600.5
Length
7 inch
8.2 inch
11 inch
13.7 inch
20 inch
21.6 inch
11 inch
13.7 inch
20 inch
20 inch
Width
10 inch
10 inch
10 inch
10 inch
10 inch
10 inch
10 inch
10 inch
10 inch
10 inch
Height
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
2.4 inch
