CONDUIT SUPPORT STAND
Refer to the “Identification” section of this manual.
1. Each BEND
MAX
™
Power Bender comes with a Conduit Support Stand
(23) located on the back of the bender.
2. To use this stand, Remove it from its stored position by lifting stand
off the frame mounted hooks and place to the right as viewed from
the front of bender. The stands height can be adjusted by loosening
the screw knob and lifting up on the roller. Once proper height is
obtained, screw knob clockwise to tighten.
3. Once conduit is loaded into the bender rollers, minor adjustments can
be made to Conduit Support Stand to facilitate easy feeding of conduit
into the bender.
4. This feature can help to eliminate the need to find a coworker to hold
and help load long runs of conduit as seen in (Fig 18).
OPERATION cont.

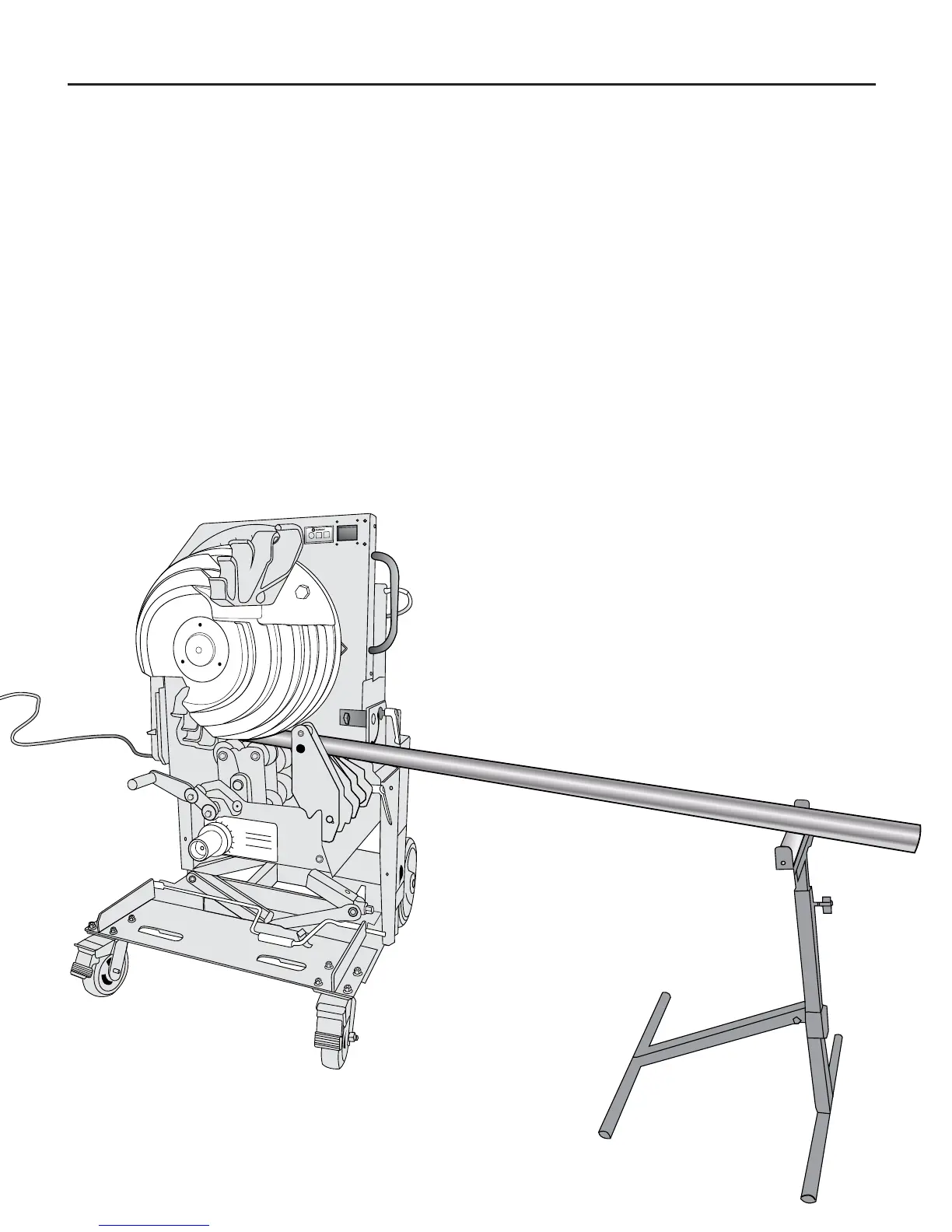

Fig. 18
