8
4. Plug the Pendent Control Cable (18) into housing under
Power Switch (20) then into Hand Pendent (17).
Refer to the “Identification” section
of this manual.

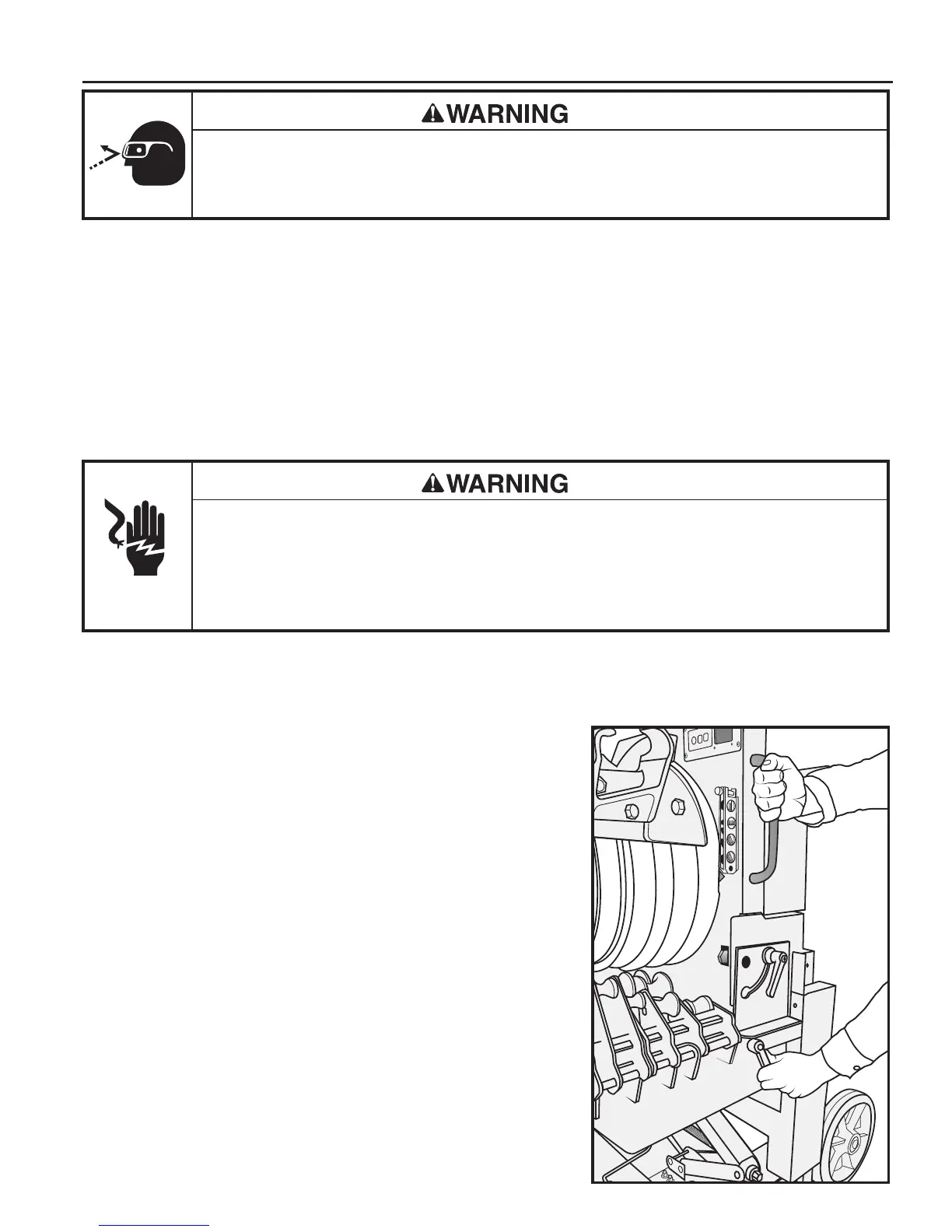

1. To level the
BENDMAX
™
Power Bender,
place a magnetic level to the front plate
just under the digital display (5). Loosen
the two degree fine adjustment handle (28)
and use Bender Support Handle (6) to find
the level position on the magnetic level.
Tighten fine adjustment handle (28) to
secure in place as shown in (Fig 1).
LEVELING OF THE BENDMAX
™
Extension cords:
• Use only three-wire, 12 AWG extension cords that have three-prong grounding-type plugs and three-hole
receptacles that accept tool’s plug.
• Do not use extension cords that are longer than 30 m (100 ft).
• Repair or replace damaged extension cords.
Failure to observe these warnings could result in severe injury or death.
Fig. 1
SETUP
Refer to the “Identification” section of this manual.
1. Position the bender so that there is room to load conduit and
engage the front caster brakes (27).
2. Place the bender in the desired vertical or horizontal bending position.
Refer to section labeled “CHANGING THE BENDING PLANE OF
THE BEND
MAX
™
”.
3. Plug approved 12 AWG extension cord into the power receptacle (16)
from grounded 20 amp outlet.
Always use safety glasses. Everyday glasses only have impact resistant lenses;
they are NOT safety glasses.
When using in dusty enviornment, use face or dust mask.
Failure to wear eye protection could result in serious eye injury from flying debris.
