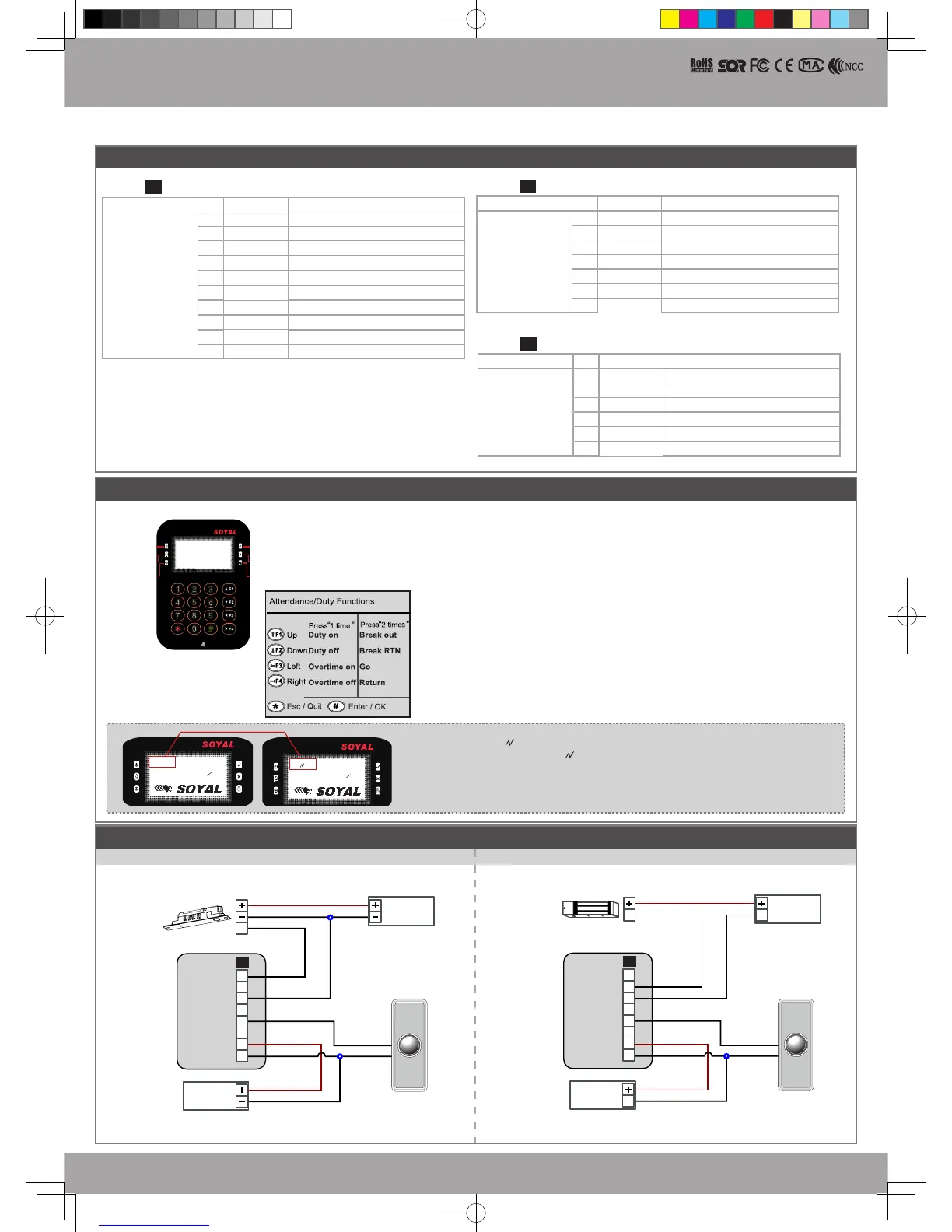

Front Panel & Indicator
1. System will automatically exit Programming Mode when inactivating for 30
seconds.
2. LED status indicates controller’s mode and status.
OK (green) – blinking constantly when operating in Programming Mode
– or ashing an existed card in card learn mode, it comes 2 beeps
warning and LCD panel displays “Same Card: user address / card
number”
Error (red) – invalid card with 2 beeps warning and LCD panel displays “Card
Number Err!”
– or in anti-pass-back mode, when violates the access, it comes one
beep warning and LCD panel displays “Anti-pass Error!”
Arming (green) – arming on status
Alarm (red) – any abnormal condition occurs
3. Keypad will be locked up 30 sec. when incorrect pin code or master code is
constantly entered.
4. Maximum error input of pin code and master code can be changed via the
software 701Server (default: 5 times)
Power
(Green)
Alarm
(Red)
Arming
(Green)
OK
(Green)
Error
(Red)
In processing
(Green)
Networking : / and interactively ash between the Month and DAY.
[e.g.] 12/07←→12 07
Stand-alone : No ashing [e.g.] 12/07
(←Reference to picture)
Connect to Electric Bolt
Wiring Diagram
EXIT
1
2
3
4
5
6
7
8
E
12V
GND
Exit Switch
12V
GND
12V
GND
N.O.
GND
N.O.
COM
PB
12V
GND
P1
Electric Bolt
Controller
RTE
POWER
12VDC
POWER
12VDC
EXIT
1
2
3
4
5
6
7
8
N.C.
COM
PB
12V
GND
12V
GND
12V
GND
12V
GND
N.O.
GND
P1
Controller
RTE
POWER
12VDC
POWER
12VDC
Magnetic Lock
Connect to Magnetic Lock
Connector Table (2): Optional
Wire Application Wire Color Description
TCP/IP Module 1 Black DC 0V
2 Red DC 3.3V
3 Black DC 0V
4 Blue RSTN
5 Green IRQN
6 Purple NSS
7 Brown MISO
8 Yellow MOSI
9 White CLK
10 Black DC 0V
Wire Application Wire Color Description
HID RF Module 1 Orange
ANT 1
2
Purple
ANT 2
3 Black DC 0V
4 Red DC 5V
5 Blue Wiegand DAT: 1 Input
6 Green Wiegand DAT: 0 Input
7 White --
Wire Application Wire Color Description
Voice Module
(*Required speaker
8Ω / 1.5W (Max.
2W)
1 Black DC 0V
2
Yellow
TX
3 White TE
4 Orange RX
5 Red DC 5V
6 Blue --
Cable: CN7
Cable:
Cable: CN9
P3
P8
P9
