TX Power
Warning: Follow these precautions to preserve your
Motherboard from any remnant currents when connecting
to ATX power supply:
Turn off the power supply and unplug the power cord
of the ATX power supply before connecting to ATX PW
connector.
The Motherboard requires a power supply with at least 200 Watts
and a "power good" signal. Make sure the ATX power supply can
take at least 720 mA * load on the 5V Standby lead (5VSB) to meet
the standard ATX specification.
* Note: If you use the Wake-On-LAN (WOL) function, make sure
the ATX power supply can support at least 720 mA on the 5V
Standby lead (5VSB).

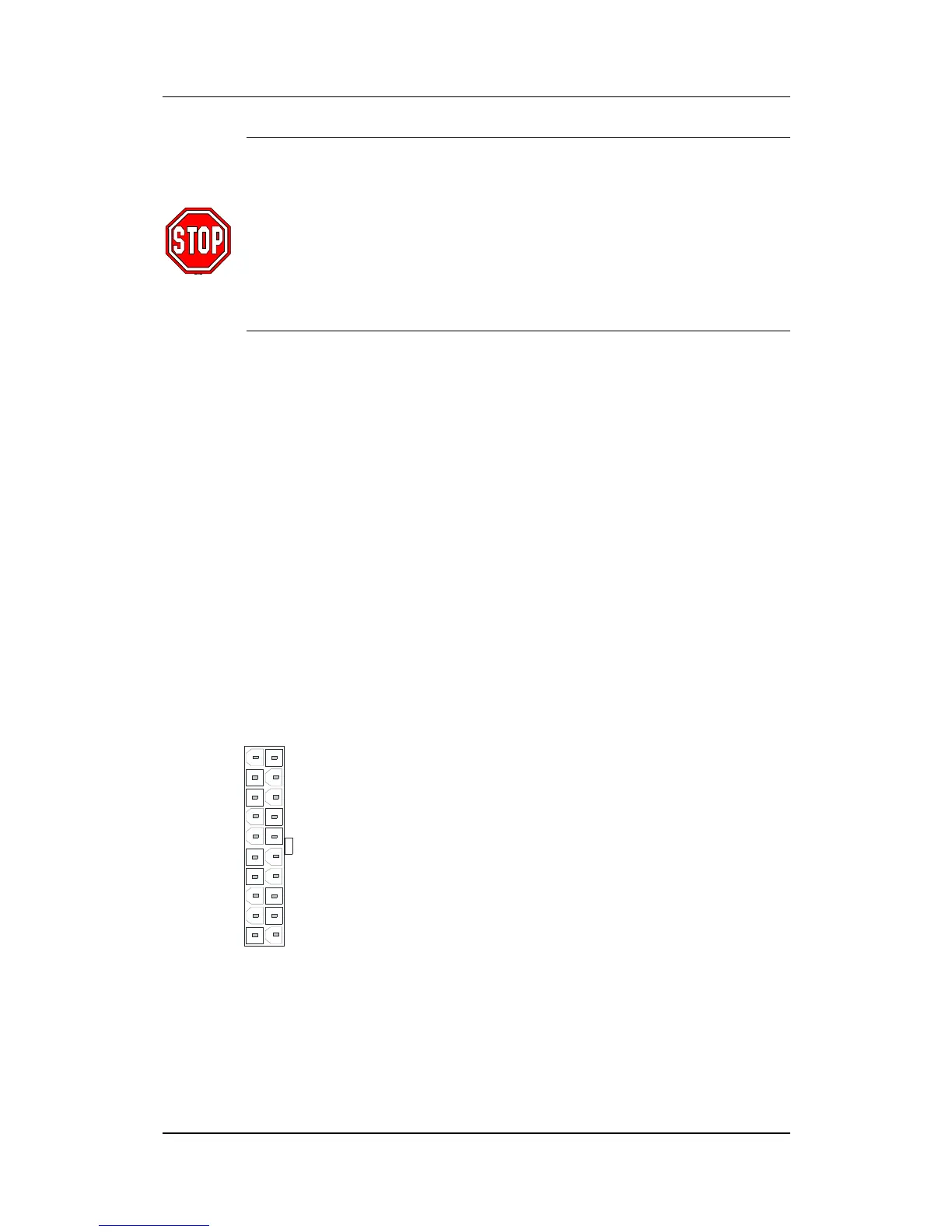

Please install the ATX power according to the following pin
assignment:
Pay special care to the directionality.
2-3.13
AT Power Supply
If you are using AT power, plug the dual 6-pin headers from the
power directly into the 12-pin male AT Power connector on the
motherboard. Make sure black leads of the 6-pin AT power headers
are in the center.
