Spa Builders SC-CF - Wiring Diagram (SC-MP)

64 SC-CF & SC-MP Service Manual

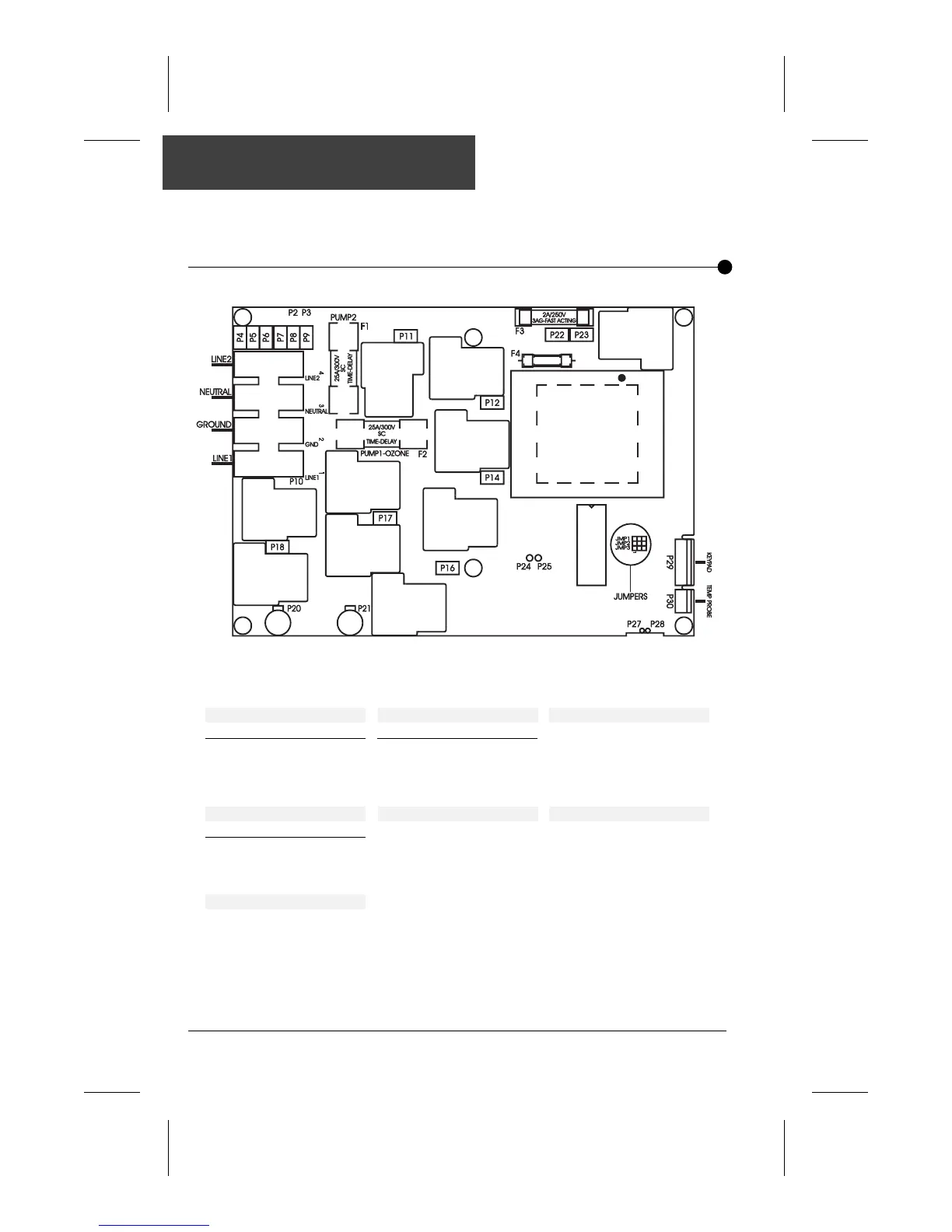

Wiring Diagram (SC-CF)
Pump 1
Voltage 240v
Green / Ground P4
Black / Low Speed P14
Red / High Speed P12
White / Com P18
Pump 2
Voltage 240v
Green / Ground P6
Black / Line P11
White / Com P17
Jumper Settings
Refer to page 10
Heater
Black 1 P20
Black 2 P21
Pressure Switch
Green P25
Red P24
Ozonator
Voltage 120v
Green / Ground P5
Black / Line P16
White / Neutral P8
Light Connector
White / 0 VAC P23
Black / 12 VAC P22
The wiring diagram below provides a general idea of SC-CF wiring, but it is important to
note that it may not apply to all systems. The wiring diagram including on inside power
box cover is the one to be used as main reference for the spa you are servicing.
