91518 Multigas Analyzer Service Manual 2-3
Setup

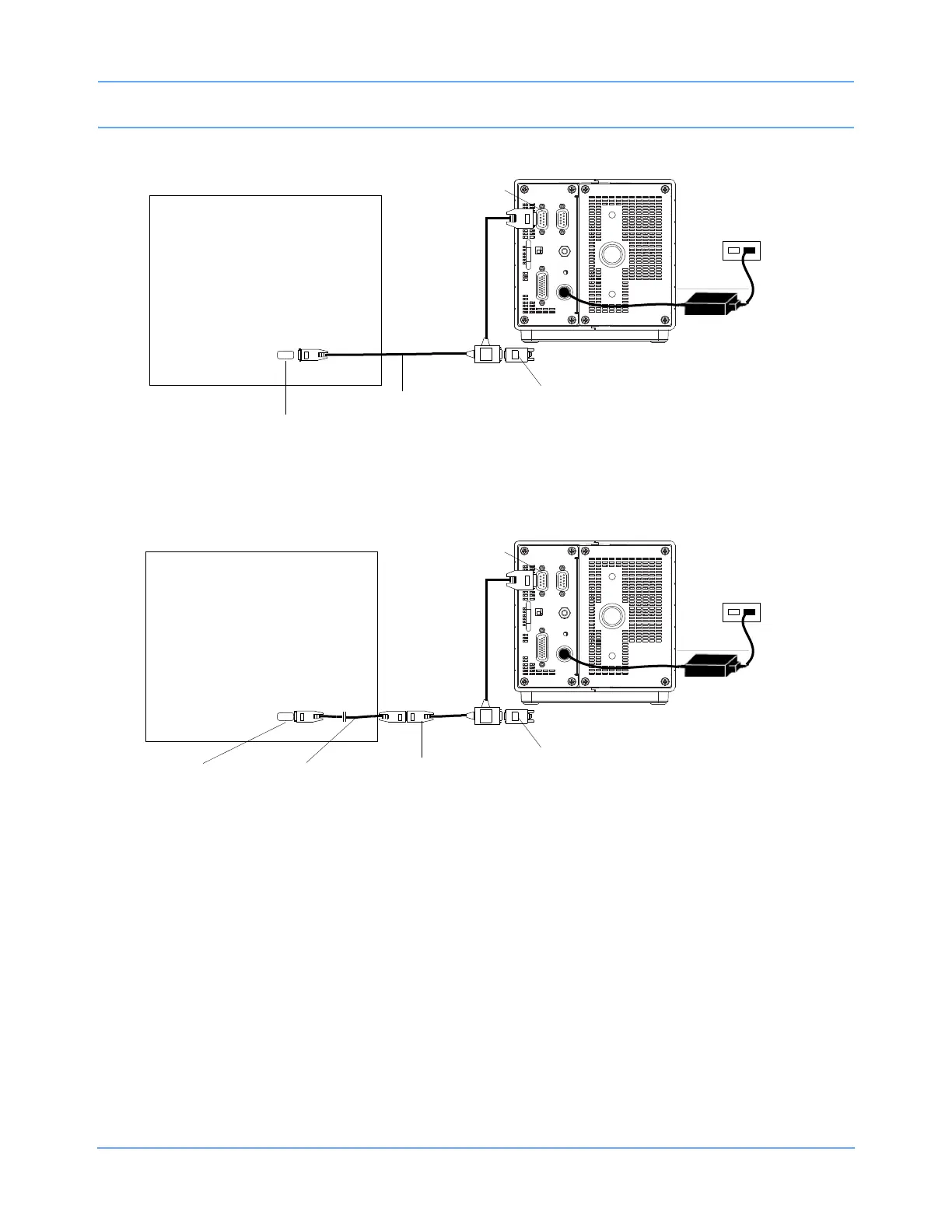

Figure 2-2: 91518 connections to 90367/69, 91369, 91370 monitors
Figure 2-3: 91518 connections to 90367/69, 91369, 91370 monitors, using extension cable
jack (J2)
P/N 012-0175-01
SDLC
terminator
P/N 012-0507-02
SDLC
SDLC
....
.....
tee cable
91518
90367/69/91369/91370
monitor
jack
AC power
source
Power supply
P/N 119-0480-00
jack (J2)
P/N 012-0175-01
SDLC
terminator
P/N 012-0507-02
SDLC
SDLC
....
.....
tee cable
91518
90367/69/91369/91370
monitor
jack
AC power
source
Power supply
P/N 119-0480-00
extension cable
P/N 012-0619-00
or 012-0242-00
