Setup
91518 Multigas Analyzer Service Manual 2-4
90367/69, 91369, 91370 Monitor Installations with Flexport
To install the 91518 with 90367/69, 91369, 91370 monitors:
1 Verify that AC power is connected as required by local standards. An external power supply
(P/N
119-0480-00 or 119-0251-00) is required for use with the 91518 Multigas Analyzer.
2 Ensure that the monitor and multigas analyzer are powered OFF.
3 Assemble the required cables and terminators or your system configuration (refer to Figure 2-4 for part
numbers).
4 Connect the P1 connector of the tee cable (P/N 012-0175-01) to the SDLC jack (J2) on the 91518 rear panel
(refer to
Figure 1-3 on page 1-5 for rear panel information).
Note:
An extension cable (6-foot SDLC extension cable [P/N 012-0619-00] or 3-foot SDLC extension cable
[P/N
012-0242-00]) can be connected to the tee cable to extend the distance of the 91518 from the monitor
(refer to
Figure 2-5 on page 2-5).
5 Connect P3 of the Flexport tee cable (P/N 012-0152-00) to P2 of the tee cable (P/N 012-0175-01).
6 Connect P1 of the Flexport cable to the monitor.
7 Set the SDLC switch on the 91518 Multigas Analyzer to terminated ( ).
Note:
If using more than one Flexport, Spacelabs Healthcare recommends the use of the Flexport Holder
(P/N
650-0201-00).

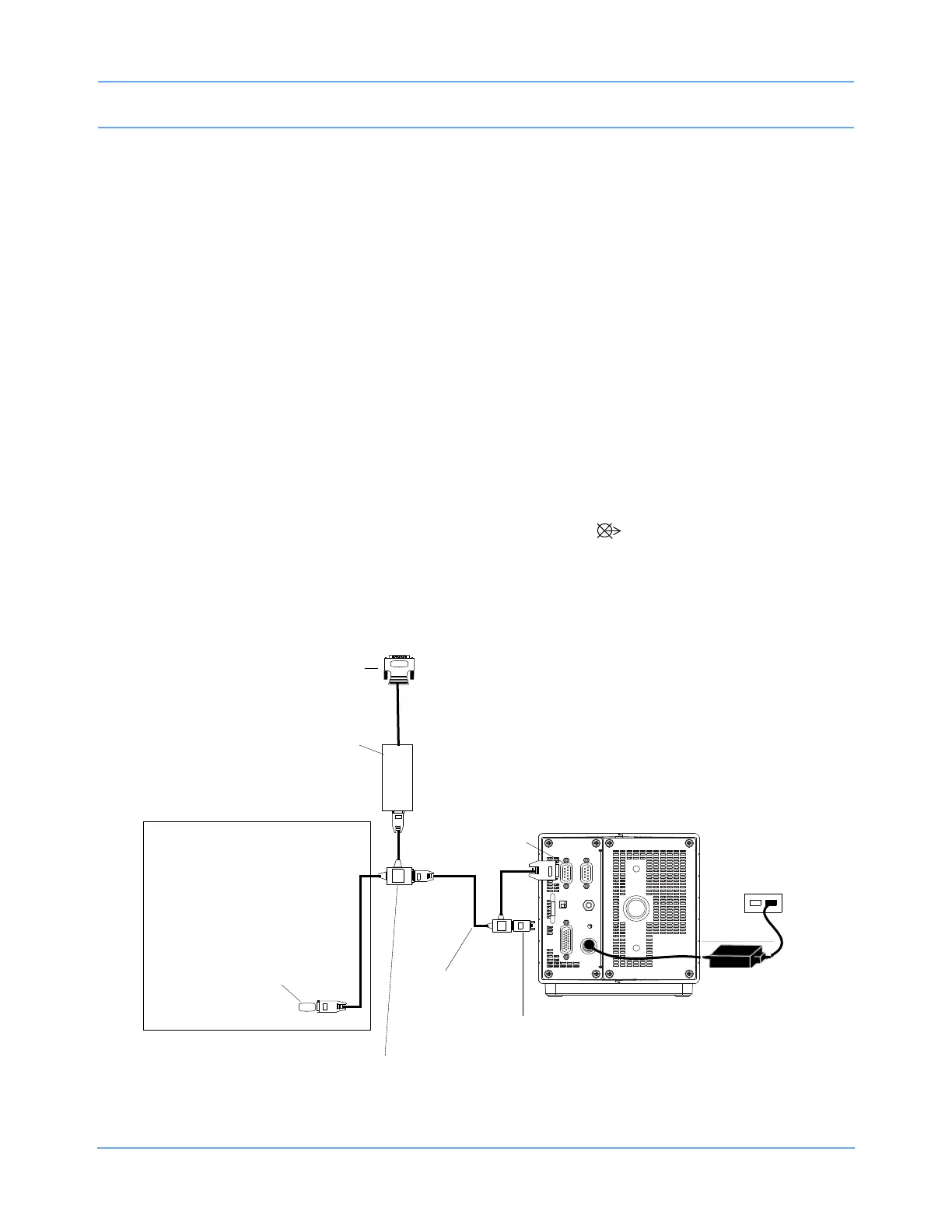

Figure 2-4: 91518 connections to 90367/69, 91369, 91370 monitors, with Flexport
jack (J2)
P/N 012-0175-01
SDLC
terminator
P/N 012-0507-02
SDLC
SDLC
....
.....
tee cable
91518
90367/69/91369/91370
monitor
jack
AC power
source
Power supply
P/N 119-0480-00
P/N 012-0152-00
tee cable
To peripheral device
Flexport interface
