Introduction
91518 Multigas Analyzer Service Manual 1-4
Controls and Connectors
The blue power ON/OFF switch is located on the front of the analyzer.
All other multigas analyzer functions are controlled using the touch keys on Spacelabs Healthcare monitors.
Front View

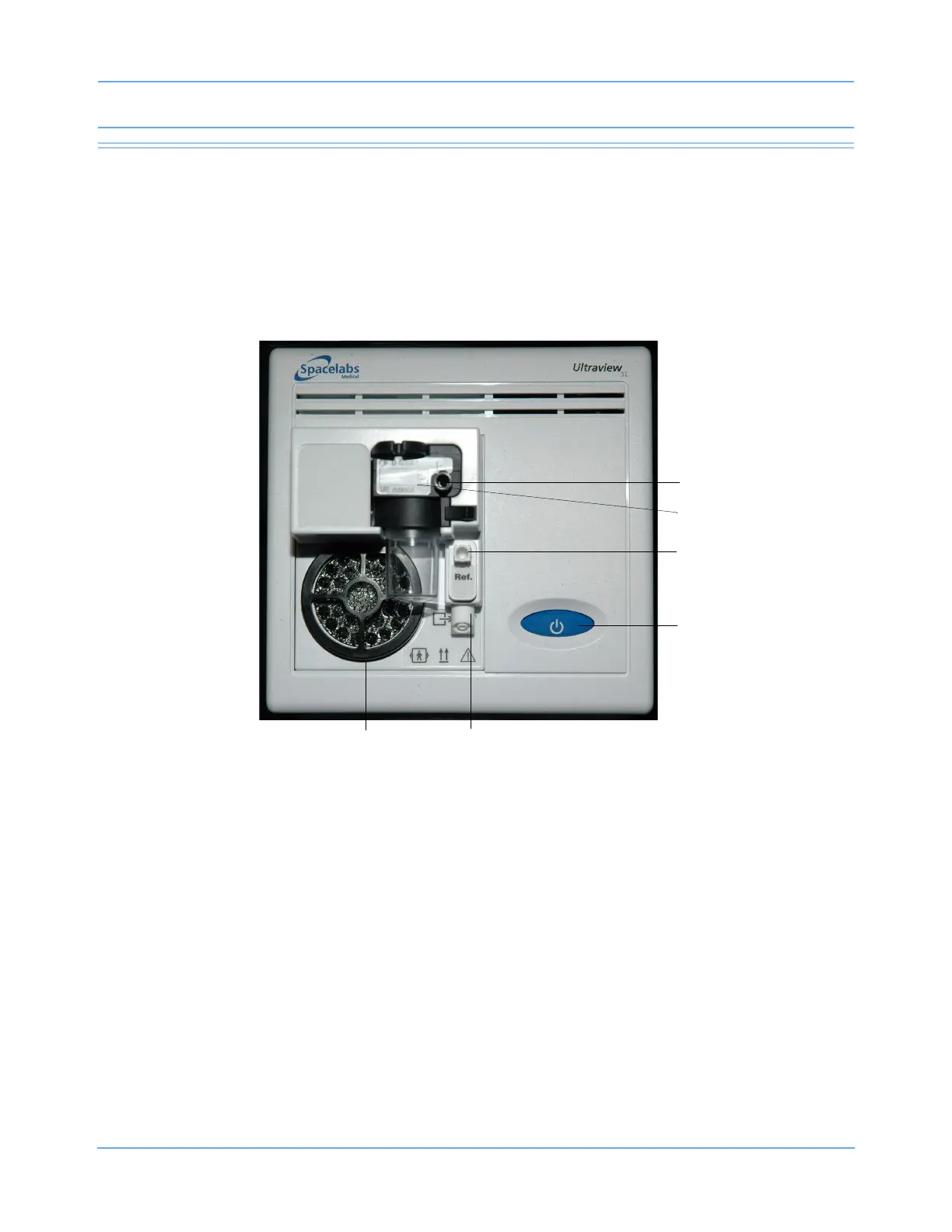

Figure 1-2: Front view of the 91518 Multigas Analyzer
Gas sampling line inlet connector
Replaceable D-fend water trap
Reference gas port (no connection)
Power ON/OFF switch
Gas outlet port
Fan and filter
