SPALDING 2622007 - Arena Slam Rim Assembly; Attach Slam Jam Bracket to Backboard

Assemble the Arena Slam™ Rim
22
Assemble the Arena Slam™ Rim
Required Parts: Completed Arena Slam™ Rim Assembly:
• Kit 5
• Socket Wrench or Wrench
1/2 in, 3/4 in
• Screwdriver - #3 Philips
G

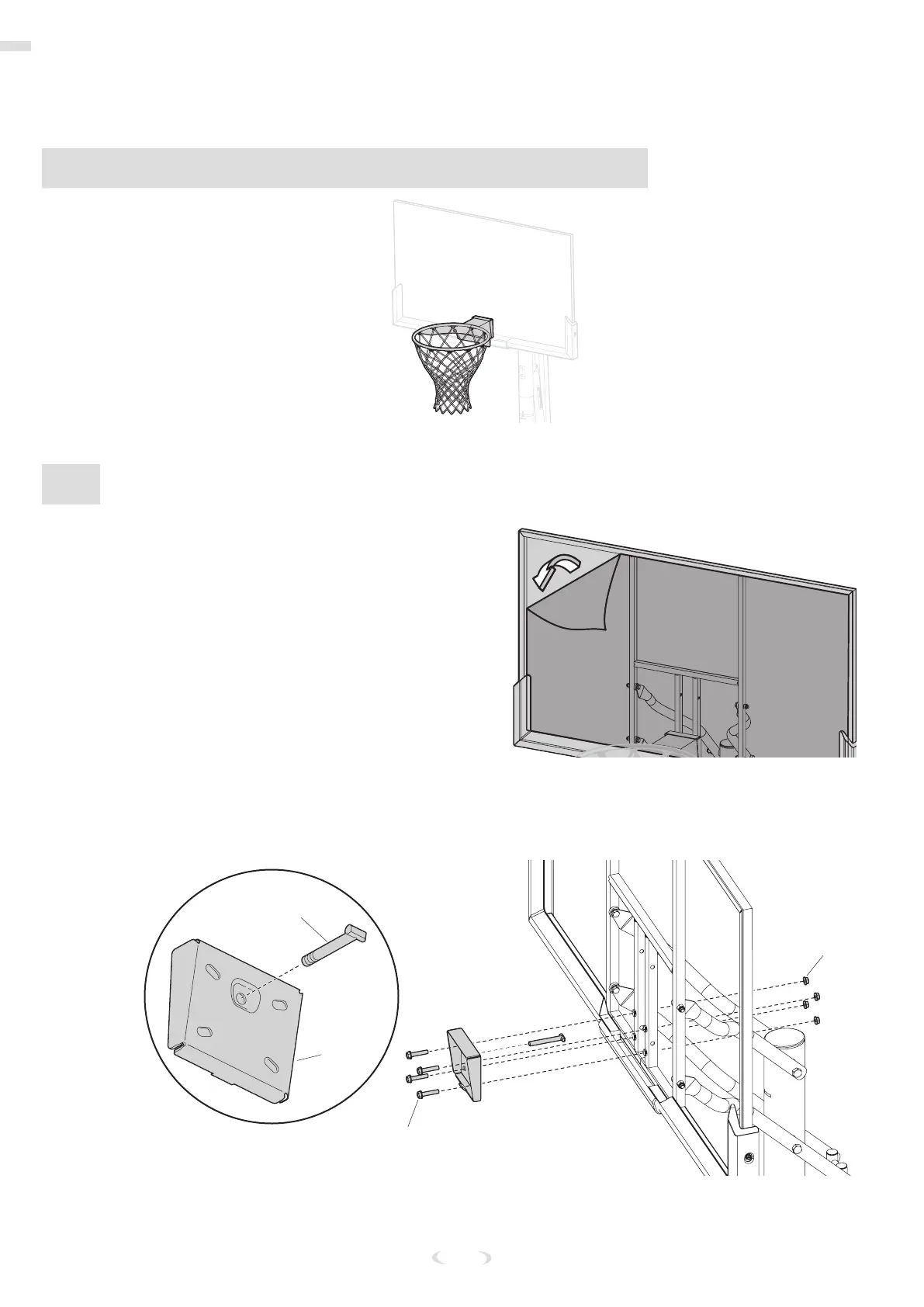

ASSEMBLE THE ARENA SLAM™ RIM
1. Peel and remove the protective lm from the
front of the backboard.
2. Insert the t-bolt (33) through the Slam Jam bracket (32).
3. Secure the Slam Jam bracket (32) to the backboard using the bolts (51) and nuts (16).
#33
#16
#51
#32
