SPALDING 2622007 - Base Assembly; Assemble the Oval Pole

Assemble the Base
11
Assemble the Base
Required Parts: Completed Base Assembly:
• Kit 1
• Kit 2
• Scrap Wood Board
• Socket Wrench or Wrench
1/2 in, 9/16 in
A
ASSEMBLE THE OVAL POLE

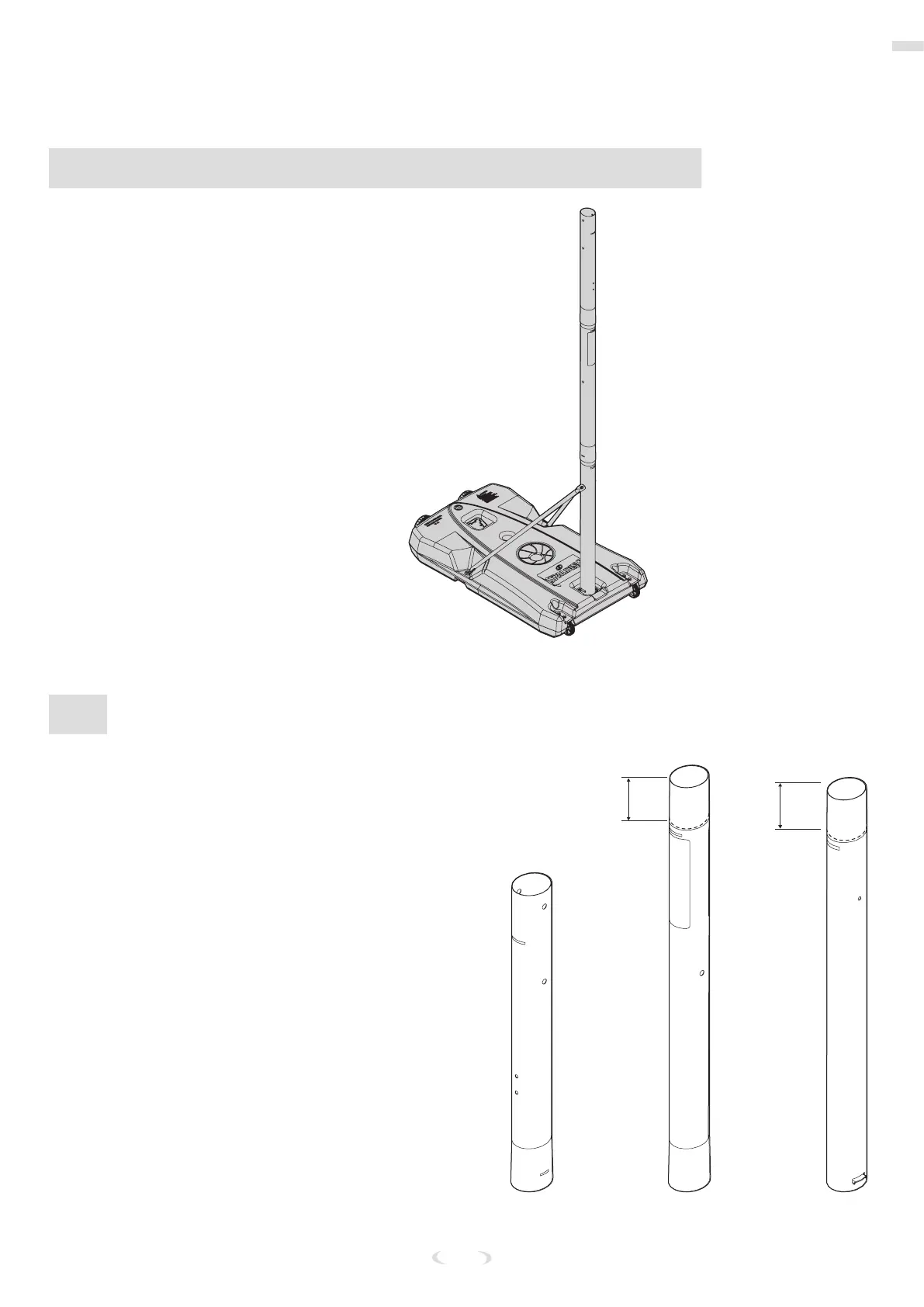

1. Identify the top (4), middle (5), and
bottom (6) oval pole sections.
2. Using a tape measure, make a mark 9 cm
(3.5 in) from the top of both the middle
(5) and bottom (6) pole sections.
#4
9 cm
(3-1/2 in)
9 cm
(3-1/2 in)
#5 #6
