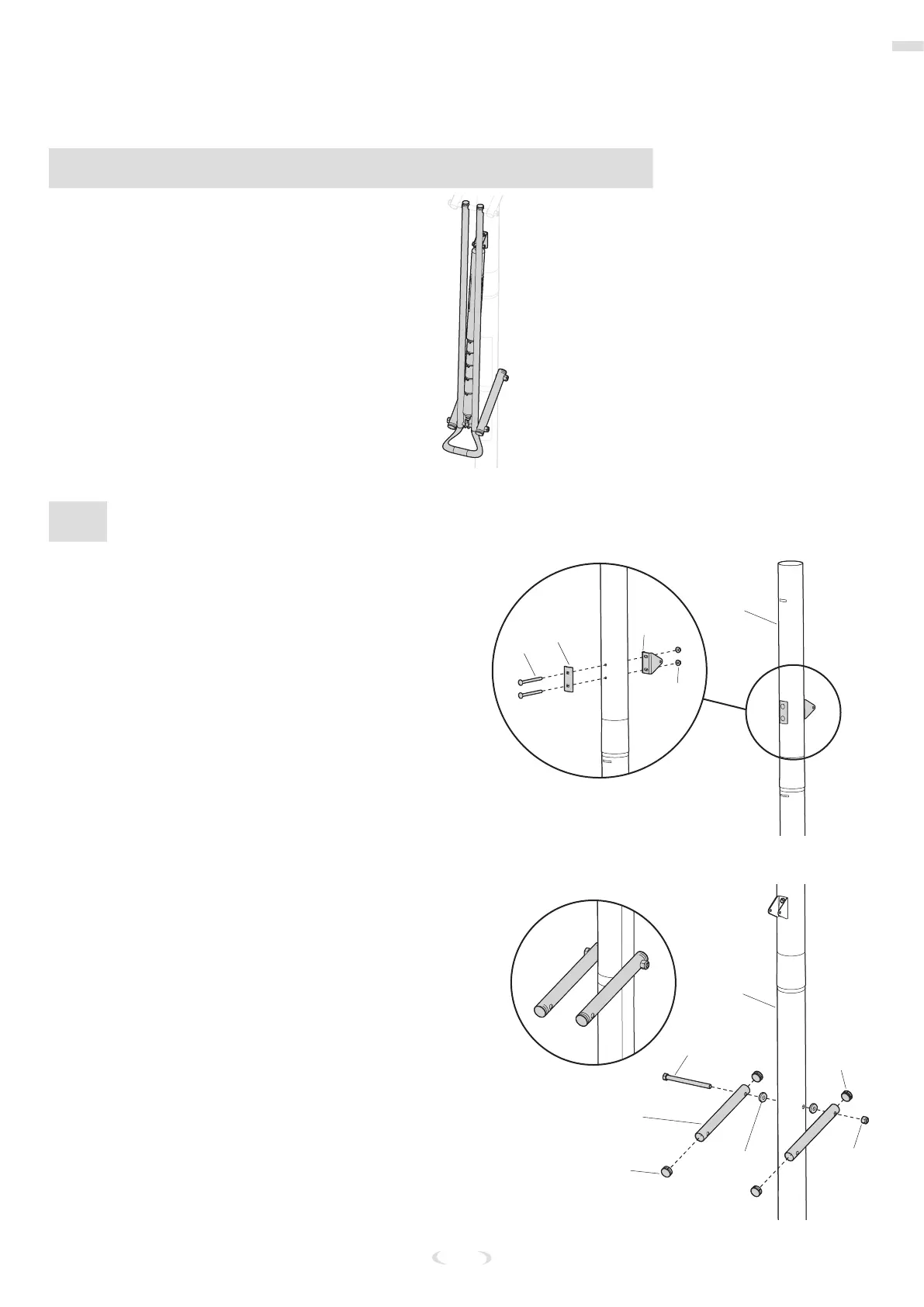

Assemble the AccuGlide™ Lift
15
Assemble the AccuGlide™ Lift
Required Parts: Completed AccuGlide™ Lift:
• Kit 3
• Socket Wrench or Wrench
1/2 in, 3/4 in
E
ASSEMBLE THE ACCUGLIDE™ LIFT
1. Secure the pole mount bracket (27) to the
rear of the top pole (4) and reinforcement
bracket (34) into the front of the top pole
(4) using the mounting holes and carriage
bolts (28).
2. Tighten the ange nuts (16).
#28
#34
#4
#16
#27
Front Side
Back Side
3. Install the handle arm tubes (53) to
the middle pole (5) using hex bolt (44),
spacers (49), and nylock nut (40).
4. Insert plugs (38) into tubes (53).
#5
#38
#49
#53
#44
#40
#38
Back Side
To Next Page
