Assemble the AccuGlide™ Lift
16
E
ASSEMBLE THE ACCUGLIDE™ LIFT

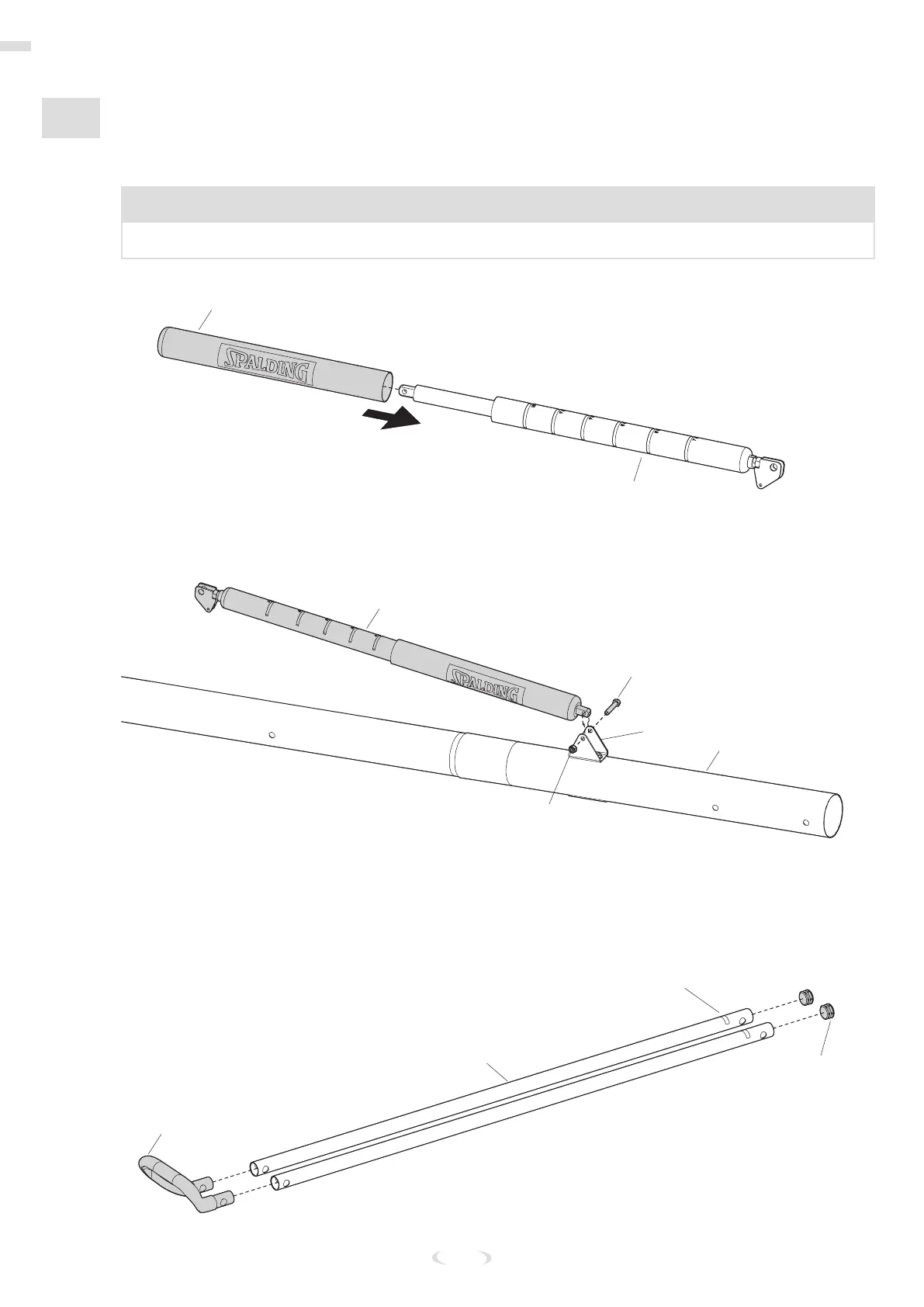

5. Slide the top cover (56) over the gas strut assembly (54).
NOTE
This step may already be completed out of the box.
#56
#54
6. Attach the gas strut assembly (54) to the pole mount bracket (27) using the bolt (18) and nut (13).
#54
#18
#27
#4
#13
7. Orient the vertical connecting tubes (52) according to the identication stickers.
8. Insert the caps (37) into the top of the tubes (52).
9. Slide the bottom end of the tubes (52) over the handle (59) and align the holes.
#59
(BOTTOM)
(TOP)
Identification Sticker
#37
#52
