Assemble the AccuGlide™ Lift
17
E
ASSEMBLE THE ACCUGLIDE™ LIFT

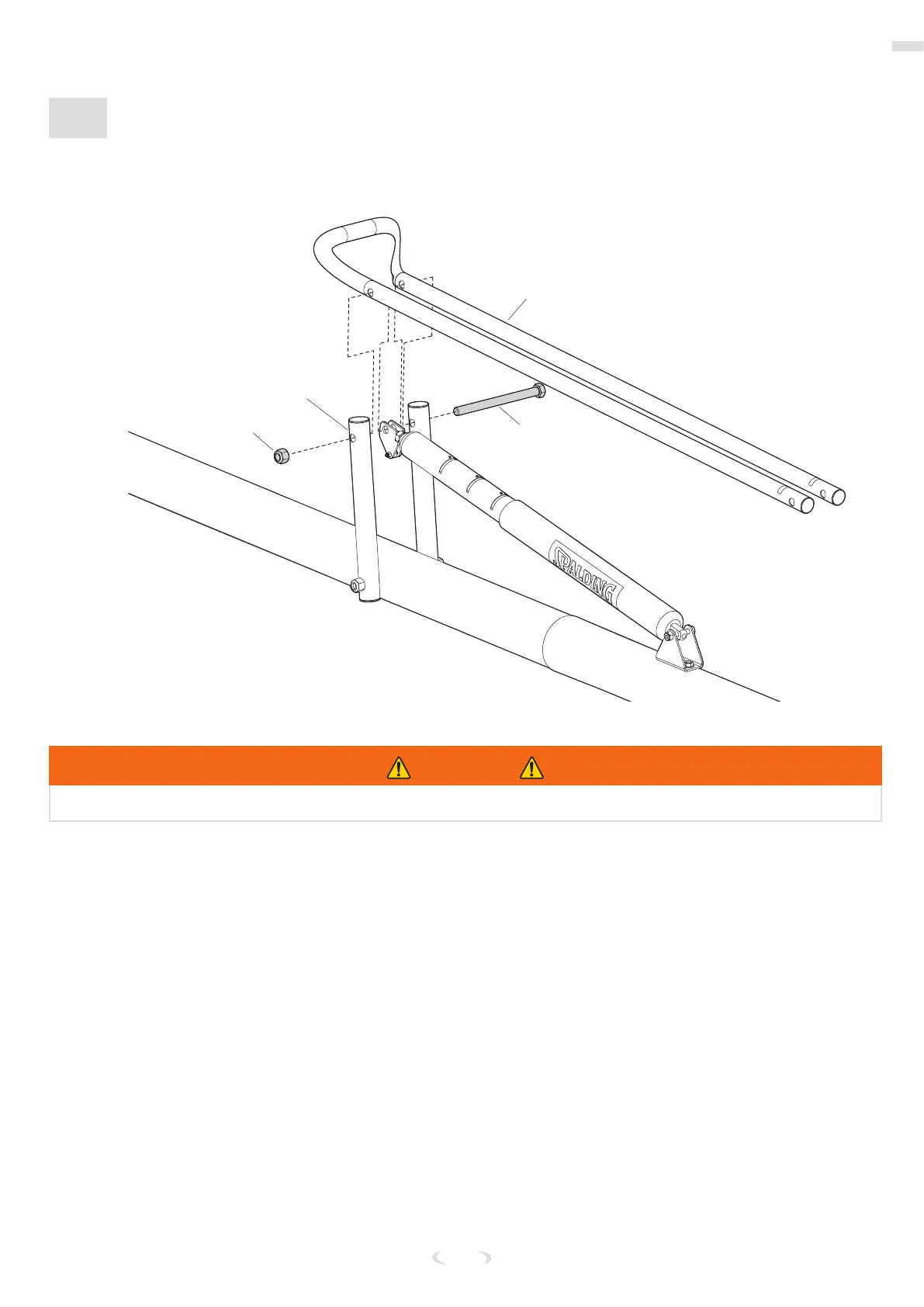

10. Insert the bolt (44) through the handle arms (53), vertical tubes (52), and the gas strut assembly
bracket. Secure using the nut (40).
#52
#44
#40
#53
WARNING
TIGHTEN THE BOLT (44) IN THE LOCK NUT (40) UNTIL IT IS FLUSH (EVEN) WITH THE OUTER EDGE OF THE NUT.
