SPALDING 2622007 - Secure Rim and Install Cover Plate

Assemble the Arena Slam™ Rim
24
G
ASSEMBLE THE ARENA SLAM™ RIM

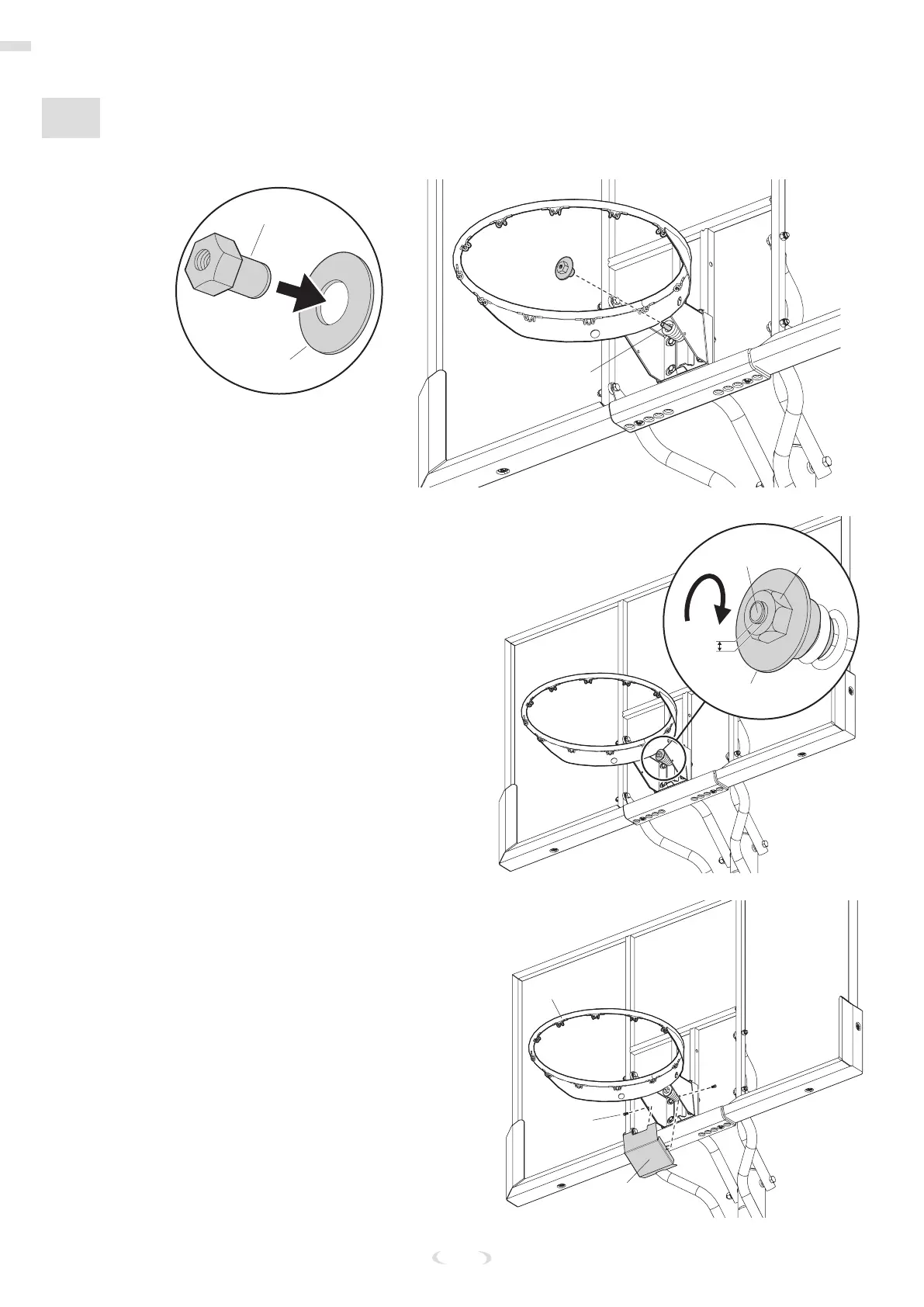

7. Install the special nut (36) and washer (35) onto the t bolt (33).
#33
#35
#36
8. Tighten the nut (36) until 3 mm (1/8 in)
of the bolt threads onto the exposed end
of the t-bolt (33).
1/8"
(3 mm)
#35
#36
#33
3 mm
(1/8 in)
9. Install the cover (47) over the spring
return mechanism using the screw (48).
#25
#48
#47
