Assemble the Base
14
B

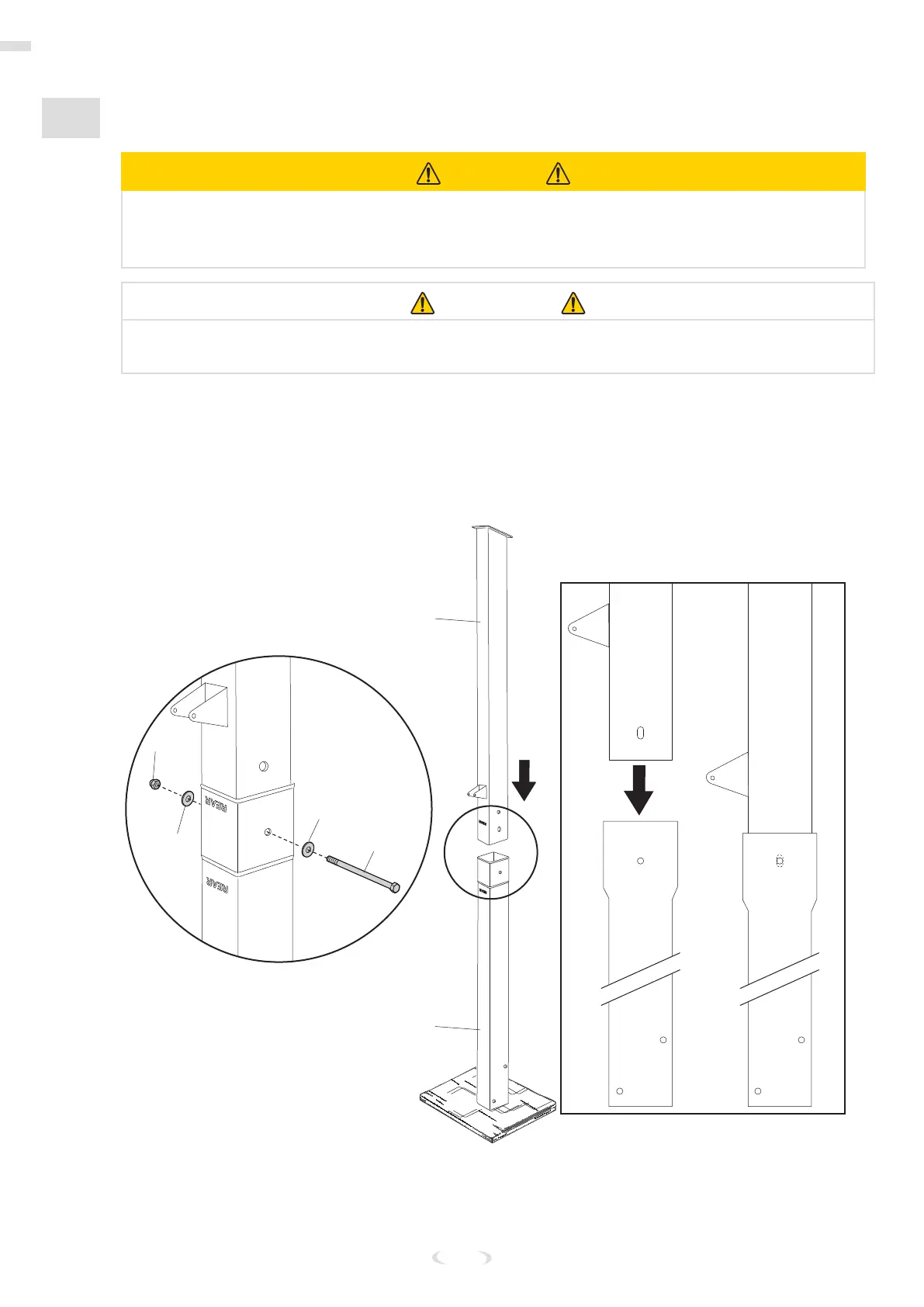

ASSEMBLE THE POLE
CAUTION
WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 4-5" (10-12.7 CM) OVERLAP.
IF MINIMUM POLE ENGAGEMENT OVERLAP OF 4-5" (10-12.7 CM) CANNOT BE ACHIEVED !! STOP !! DO NOT
PROCEED TO THE NEXT STEP! - CALL SPALDING CUSTOMER SERVICE AT 1-800-558-5234 FOR ASSISTANCE.
IMPORTANT
NOTE THE ORIENTATION OF EACH POLE SECTION. POSITION EACH POLE SECTION SO THAT THE FRONT AND
REAR FACES MATCH DIRECTION WHEN ASSEMBLED.
3. Align the top (3) pole section with the bottom (2) pole section and slide together.
4. Bounce the assembled sections on a scrap wood board until the overlap reaches the marked line.
5. Secure the pole sections together using the bolt (B9), washers (B10), and nut (B11).
#2
#B9
#B10
#B11
#B10
#3
#2
#2
#3 #3
(Rear)
(Rear)
REAR
FRONT FRONT
REAR
