SPALDING M7B60E00 - Page 15

Assemble the Base
15
C

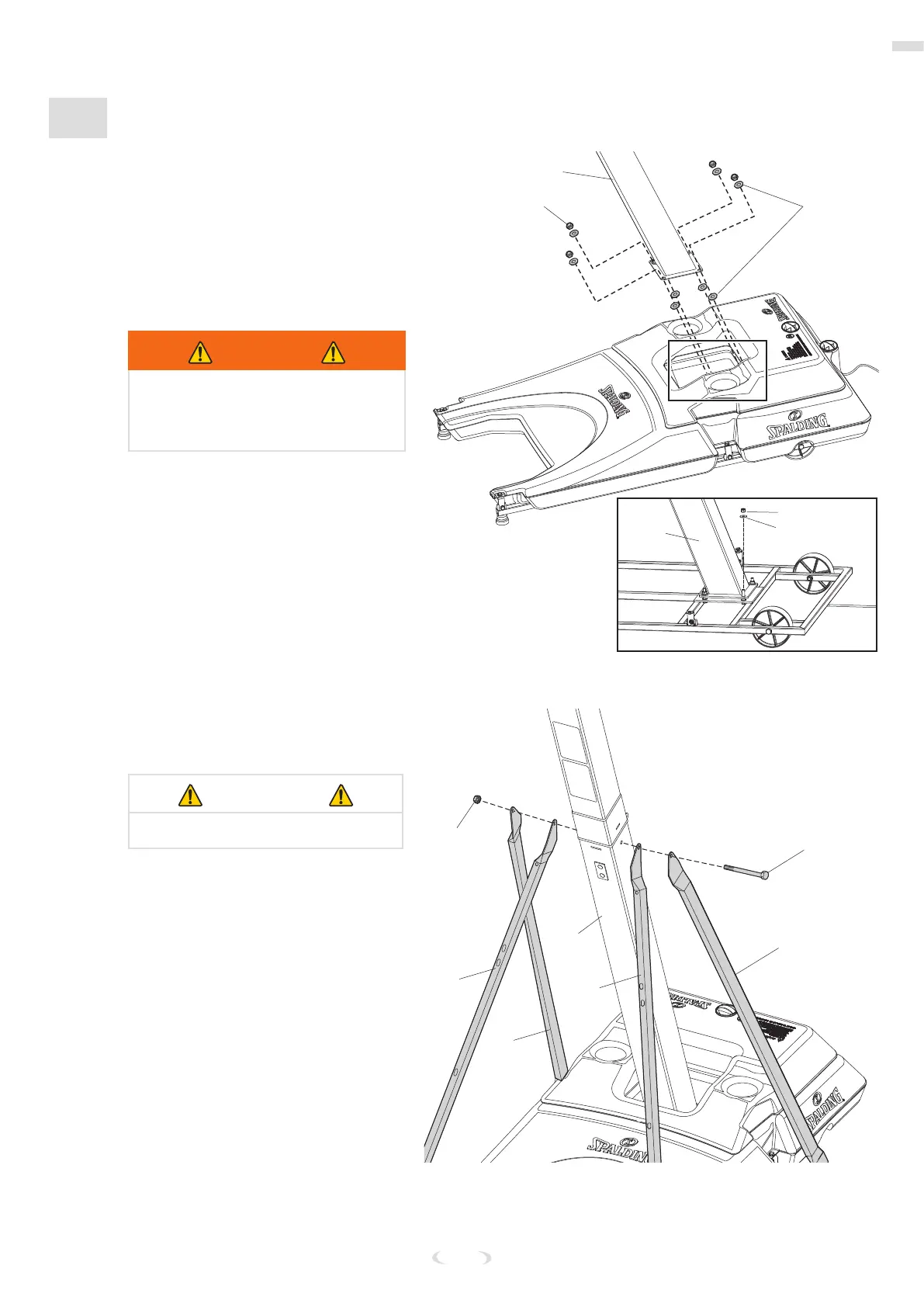

INSTALL THE POLE ONTO THE BASE
1. Place the washers (B2) onto the
pre-installed bolts.
2. Insert the bottom pole (2) onto
the pre-installed bolts through
the holes in the bottom pole.
3. Secure the pole assembly to the
pole mounting plate using the
washers (B2) and nuts (B5).
WARNING
TWO PEOPLE ARE REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS
INJURY AND/OR PROPERTY DAMAGE.
#B5
#B5
#B2
#2
#2
#B2
4. Secure the base struts (4 and 5)
to the bottom pole (2) using the
bolt (B8) and nut (B6).
IMPORTANT
DO NOT TIGHTEN COMPLETELY.
#B6
#4
#5
#4
#B8
#5
#2
